915132 (ZT 2350) - Gravely 50" Zero-Turn Mower (SN: 000101 & Above) Transaxle - Left Hand (2) Parts Diagram

50" Zero-Turn Mower

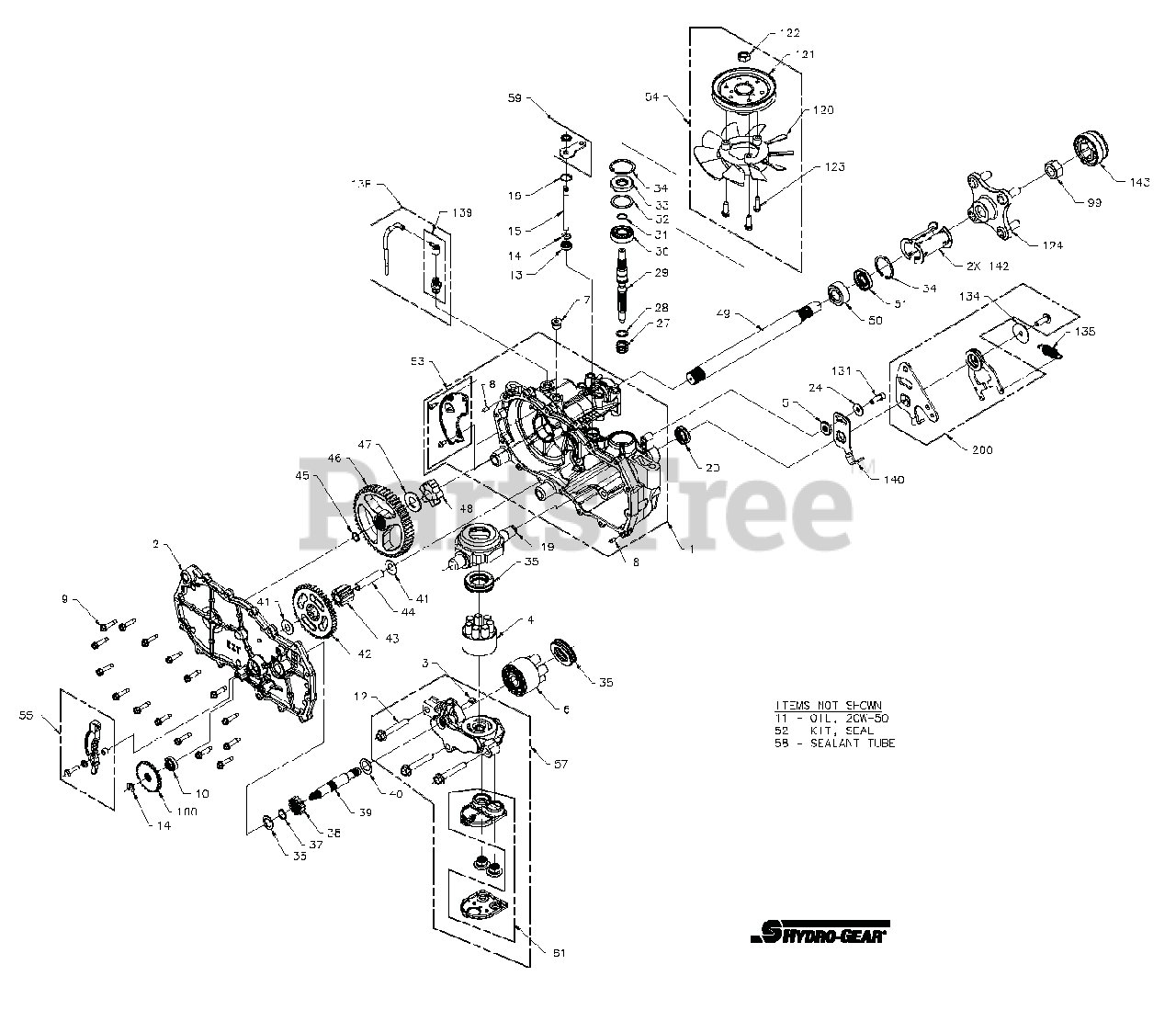

Transaxle - Left Hand (2) Parts Diagram

  • Title

1

Gravely 21543985

ASSEMBLY, MAIN HOUSING-LH

$277.99

$

Usually ships in 4-12 days

0

2

ASSEMBLY SIDE - LH

$

$

Not available

3

PLATE, BYPASS

$

$

Not available

4

Gravely 21543921

ASSY, BLOCK 7 PISTON

Note: (7P-10CC)

$137.99

$

Usually ships in 4-12 days

0

5

SPACER, .320 X 1.005

$

$

Not available

6

Gravely 21543889

KIT, 10 CC BLOCK

Note: (5P-10CC)

$99.99

$

Usually ships in 4-12 days

0

7

PLUG, SAE #6

$

$

Not available

8

PIN, STAINLESS, HEADLESS

$

$

Not available

9

HFHCS 1/4-20 X 1.25 (SELF-TAPPING)

Note: (SELF-TAPPING)

$

$

Not available

10

Gravely 21543920

KIT, SEAL

$

$

Not available

12

BOLT, HEX FLANGE 3/8-24 X 2.5

$

$

Not available

13

Gravely 21543845

SEAL, LIP .375X.75X.25

$9.99

$

Usually ships in 4-12 days

0

14

Gravely 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 12

0

15

ROD, BYPASS

$

$

Not available

16

RING, RETAINING .750 INT

$

$

Not available

19

Gravely 21543783

TRUNNION, SWASHPLATE

$73.99

$

Usually ships in 4-12 days

0

20

SEAL, LIP 18 X 32 X 7

$

$

Not available

24

WASHER, FLAT 11/32 ID X 7/8 OD X 1/16

$

$

Not available

27

SPRING HELICAL COMPRESSION

$

$

Not available

28

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 21543785

SHAFT, INPUT

$87.99

$

Usually ships in 4-12 days

0

30

Gravely 21543738

BRG, BALL 17X40X12

$11.99

$

Usually ships in 4-12 days

0

31

REING,R ETAINING WIRE .561 ID

$

$

Not available

32

SPACER

$

$

Not available

33

Gravely 21543816

SEAL, LIP 17X40X7

$7.99

$

Usually ships in 4-12 days

0

34

Gravely 21543741

RING, RET 1.56 INT

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

$16.99

$

Usually ships in 4-12 days

0

36

WASHER, FLAT 5/8 ID X 1.0 OD X .05

$

$

Not available

37

RING,R ETAINING

$

$

Not available

38

GEAR, PINION, 13T

$

$

Not available

39

SHAFT, MOTOR

$

$

Not available

40

WASHER, MOTOR SHAFT .71 ID X 1.16 OD X .04

$

$

Not available

41

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

42

GEAR, 10T/48T

$

$

Not available

43

GEAR, 10T JACKSHAFT

$

$

Not available

44

PIN, JACKSHAFT

$

$

Not available

45

Gravely 21543710

RING, RET - SPIRAL

$2.99

$

Usually ships in 4-12 days

0

46

GEAR, 52T BULL

$

$

Not available

47

WASHER, 3/4 ID X 1 1/2 OD X .13

$

$

Not available

48

BEARING, SLEEVE (INBOARD)

Note: (INBOARD)

$

$

Not available

49

SHAFT, AXLE

$

$

Not available

50

Gravely 21543795

BUSHING, SLEEVE

$7.99

$

Usually ships in 4-12 days

0

51

Gravely 21543787

SEAL, LIP .750 X 1.577 X

$5.49

$

Usually ships in 4-12 days

0

52

Gravely 21543935

KIT, SEALS AND RETAINING

$49.99

$

In Stock, Qty 10

0

53

KIT, EXPANSION PALTE LH

$

$

Not available

54

KIT FAN PULLEY

$

$

Not available

55

Gravely 00951000

BRAKE ARM, EZT #70865
(Superseded to 51517600)

$29.99

$

In Stock, only 1 left!

0

57

KIT CENTER SECTION - FILTER LH 7P

$

$

Not available

58

Gravely 21543771

SEALANT TUBE 10.1OZ.

$103.99

$

Usually ships in 4-12 days

0

59

KIT, BYPASS ARM

$

$

Not available

61

KIT, FILTER

$

$

Not available

99

Gravely 08621100

NUT, HEX, LOCK 3/4-16

$7.99

$

Usually ships in 4-12 days

0

100

Gravely 21543851

DISC, COG BRAKE

$12.99

$

In Stock, only 2 left!

0

120

FAN, 7" 10 BLADE

$

$

Not available

121

Gravely 21543736

FAN PULLEY KIT 4.5X1.625

$51.99

$

In Stock, Qty 14

0

122

HEX LOCK NUT, 1/2-20

$

$

Not available

123

HFHCS 1/4-20 X .875

$

$

Not available

124

Gravely 21543888

KIT, HUB 1/2-20

$162.99

$

Usually ships in 4-12 days

0

131

SHCS 5/16-24 X 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

134

Gravely 21543871

WASHER

$5.49

$

Usually ships in 4-12 days

0

135

Gravely 21543876

SPRING, EXTENSION

$4.99

$

In Stock, Qty 20+

0

138

KIT BREATHER ASSEMBLY

$

$

Not available

139

KIT BREATHER

$

$

Not available

140

ARM NEUTRAL LH

$

$

Not available

142

TUBE AXLE 2.86 SPLIT

$

$

Not available

143

CAP, AXLE

$

$

Not available

200

KIT RTN ASSEMBLY LH

$

$

Not available
