915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 000101 - 015999) Idlers And Sheaves - 42 Inch Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

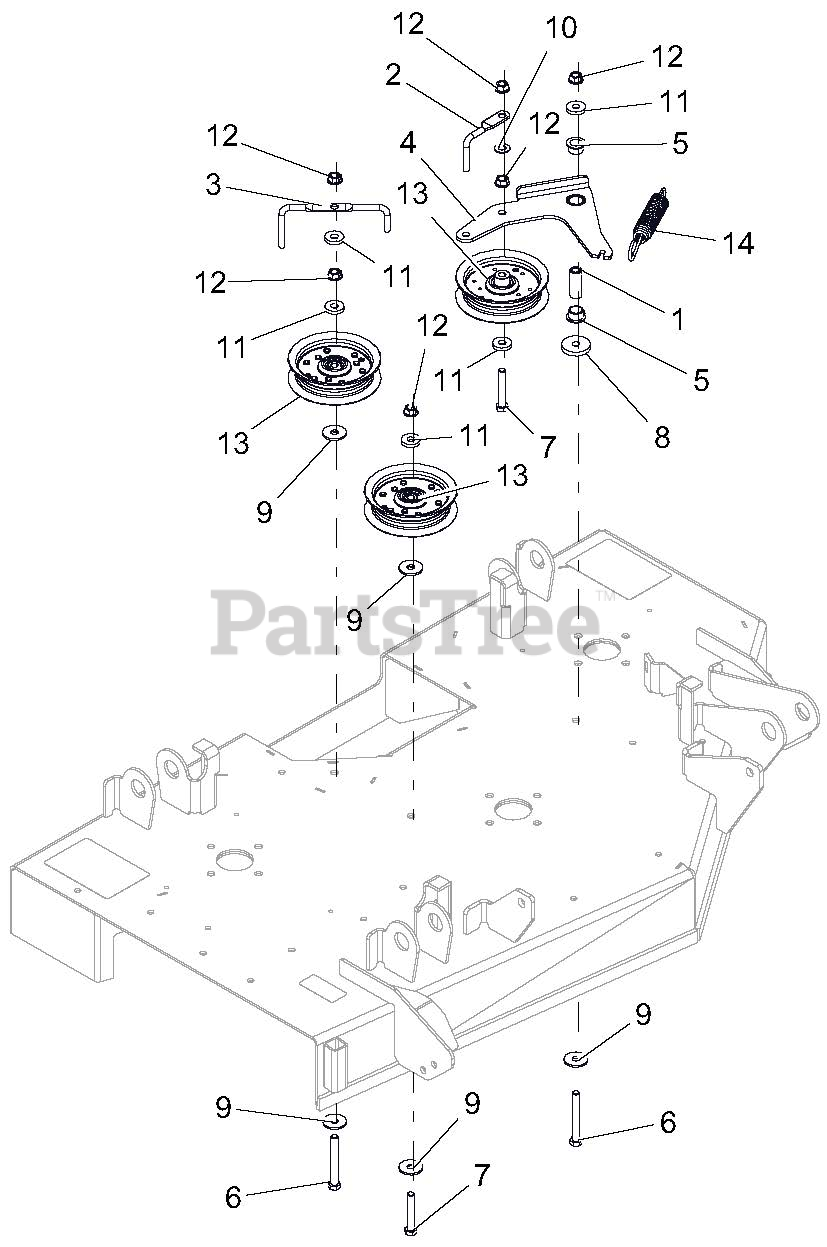

Idlers And Sheaves - 42 Inch Parts Diagram

  • Title

1

Gravely 03763400

SPACER, .375IDX.625ODX1.66 PM

$5.49

$

In Stock, Qty 20+

0

2

Gravely 03828853

WIREFORM, BELT FINGER
(Superseded to 03828800)

Note: (RED)

$10.99

$

In Stock, Qty 12

0

3

Gravely 03974153

WIREFORM, BELT FINGER
(Superseded to 03974100)

Note: (RED)

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 04773359

WLDMT, IDLER ARM-42"

Note: (ORANGE)

$41.99

$

In Stock, only 2 left!

0

5

Gravely 05500907

BSHG-FLG, .625X.750X.500X1.00

$7.49

$

In Stock, Qty 20+

0

6

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.99

$

In Stock, Qty 16

0

7

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$5.49

$

In Stock, Qty 20+

0

8

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$5.49

$

In Stock, Qty 20+

0

9

Gravely 06400917

WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$52.99

$

In Stock, Qty 20+

0

14

Gravely 08320300

SG-TENS .135X.98X6.0 WLD 62

$20.99

$

In Stock, Qty 20+

0
