915173 - Ariens Zoom XL 54" Zero-Turn Mower, 24hp Kohler Courage Twin (SN: 020000 - 020999) Transaxle - Right Hand Parts Diagram

Zoom XL 54" Zero-Turn Mower, 24hp Kohler Courage Twin

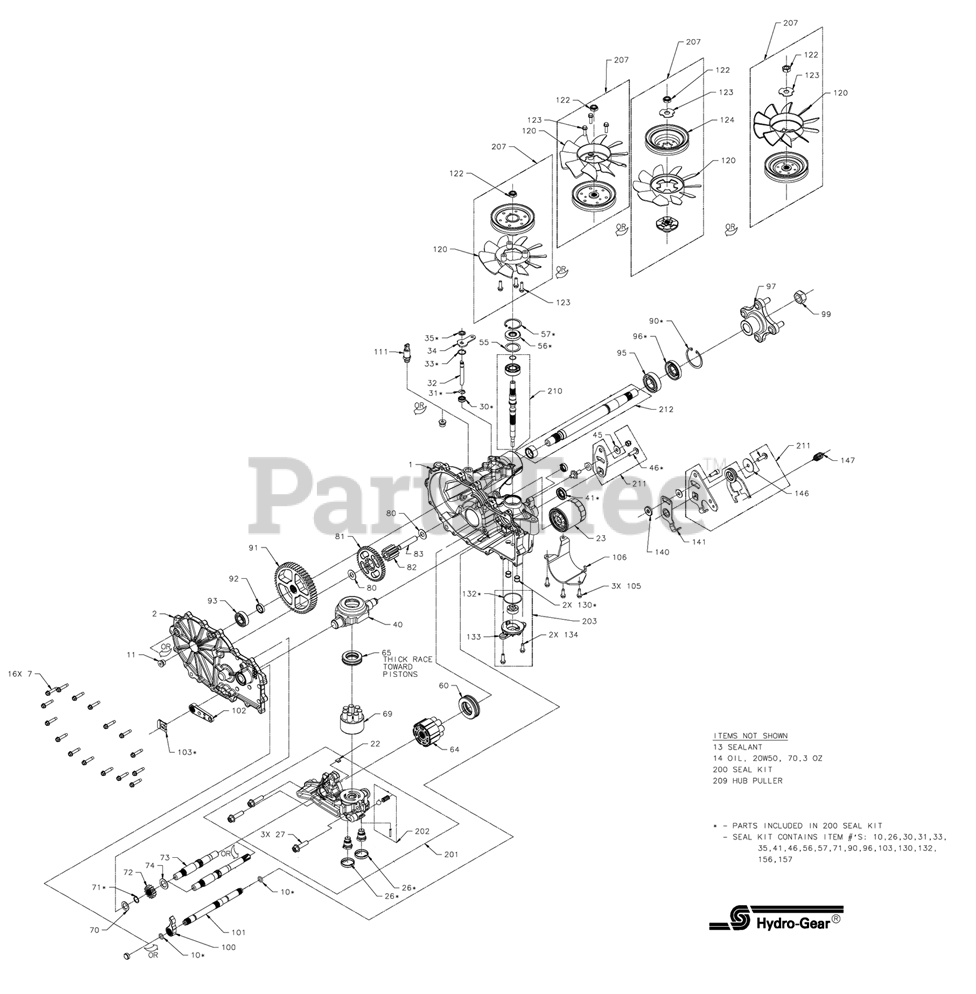

Transaxle - Right Hand Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, RH, CHRG, CNTL

Note: 71413

$

$

Not available

2

KIT, COVER, SIDE, RH

Note: 71572

$

$

Not available

7

HFHCS 1/4-20 x 1.125"

Note: 53246

$

$

Not available

10

O-RING - 111 .103 x .424

Note: 51804

$

$

Not available

11

Ariens 08613700

PLUG, STEEL (WITH SEAL)

Note: 9005110-5600

$14.99

$

Usually ships in 4-12 days

0

13

Ariens 21543771

SEALANT TUBE 10.1OZ.

Note: 50928

$103.99

$

Usually ships in 4-12 days

0

14

OIL, 20W50

$

$

Not available

22

Ariens 21543839

PLATE, BYPASS

Note: 51448

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

Note: 52114

$42.99

$

Usually ships in 4-12 days

0

26

SEAL, PLUG 1.250 x .250

Note: 52162

$

$

Not available

27

HFHCS 3/8-16 x 1.5 (PATCH)

Note: 52137

$

$

Not available

30

Ariens 21543845

SEAL, LIP .375X.75X.25

Note: 51626

$9.99

$

Usually ships in 4-12 days

0

31

Ariens 08622500

RING. RETAINING

Note: 51628

$4.49

$

In Stock, Qty 12

0

32

ROD, BYPASS

Note: 52136

$

$

Not available

33

Ariens 21543846

RING, RET .750

Note: 51627

$

$

Not available

34

ARM, BYPASS

Note: 51910

$

$

Not available

35

Ariens 21543848

RING, RTNG .

Note: 51630

$4.49

$

Usually ships in 4-12 days

0

40

Ariens 21543783

TRUNNION, SWASHPLATE

Note: 51048

$73.99

$

Usually ships in 4-12 days

0

41

Ariens 21543809

SEAL, LIP 18X32X7

Note: 51140

$5.49

$

Usually ships in 4-12 days

0

45

Ariens 08611200

WASHER

Note: 44130

$4.49

$

Usually ships in 4-12 days

0

46

Ariens 21543854

TWHCS 5/16-24 X 1.00

Note: 51812

$2.99

$

Usually ships in 4-12 days

0

55

Ariens 21543773

WASHER 1.23X1.56X.04

Note: 50951

$2.99

$

In Stock, only 1 left!

0

56

Ariens 21543816

SEAL, LIP 17X40X7

Note: 51161

$7.99

$

Usually ships in 4-12 days

0

57

Ariens 21543741

RING, RET 1.56 INT

Note: 50329

$3.99

$

Usually ships in 4-12 days

0

60

BEARING, THRUST

Note: 51462

$

$

Not available

64

ASS'Y, CYLINDER BLOCK, 16cc

Note: 71579

$

$

Not available

65

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: 50551

$16.99

$

Usually ships in 4-12 days

0

69

Ariens 21543921

ASSY, BLOCK 7 PISTON

Note: 70723

$137.99

$

Usually ships in 4-12 days

0

70

Ariens 21543708

WASHER .63X1.0X.05

Note: 44371

$3.99

$

Usually ships in 4-12 days

0

71

Ariens 21543704

RING, RET 62 EXT

Note: 44145

$2.99

$

Usually ships in 4-12 days

0

72

GEAR, 16T

Note: 52149

$

$

Not available

73

SHAFT, MOTOR

Note: 52150

$

$

Not available

74

Ariens 21543788

WASHER .71 X 1.16 X .04

Note: 51069

$

$

Not available

80

Ariens 21543724

WASHER .5X1.0X.032

Note: 50132

$

$

Not available

81

GEAR, 43T

Note: 52148

$

$

Not available

82

GEAR, 11T

Note: 52583

$

$

Not available

83

Ariens 21543793

JACK SHAFT (PIN)

Note: 51083

$

$

Not available

90

Ariens 08616500

RING, RETAINING

Note: 50859

$3.99

$

Usually ships in 4-12 days

0

91

GEAR, 54T

Note: 52108

$

$

Not available

92

SPACER, .75 x 1.32 x .257

Note: 53336

$

$

Not available

93

BEARING, BALL, .75 x 40 x 12

Note: 44121

$

$

Not available

95

Ariens 08614000

BEARING, BALL 25.4 X 52 X 15

Note: 50771

$25.99

$

In Stock, only 1 left!

0

96

Ariens 08614300

SEAL, LIP

Note: 50772

$7.99

$

In Stock, Qty 6

0

97

KIT, HUB, 4 BOLT

Note: 71446

$

$

Not available

99

Ariens 08621100

NUT, HEX, LOCK 3/4-16

Note: 50863

$7.99

$

Usually ships in 4-12 days

0

100

PAWL, BRAKE

Note: 52776

$

$

Not available

101

SHAFT, BRAKE

Note: 52651

$

$

Not available

102

Ariens 02996500

ARM, BRAKE

Note: 52639

$8.99

$

Usually ships in 4-12 days

0

103

Ariens 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

Note: 52027

$2.99

$

Usually ships in 4-12 days

0

105

Ariens 21543759

HFHCS 1/4-20X.75

Note: 50752

$2.99

$

Usually ships in 4-12 days

0

106

GUARD, FILTER, RH

Note: 52257

$

$

Not available

111

FITTING, STR 9/16-18 SAE .5 BARB

Note: 71393

$

$

Not available

120

Ariens 21544011

FAN, HYDROGEAR 52576

Note: 52576

$18.99

$

Usually ships in 4-12 days

0

122

Ariens 21543703

NUT, HEX 1/2-20 PATCH

Note: 44133

$4.99

$

In Stock, only 3 left!

0

123

Ariens 21543791

HFHCS 1/4-20X.875

Note: 51076

$

$

Not available

130

TUBE, CONNECTING

Note: 52157

$

$

Not available

131

Ariens 08611500

GEROTOR

Note: 50273

$25.99

$

Usually ships in 4-12 days

0

132

Ariens 21544005

O-RING HYDROGEAR 52250

Note: 52250

$2.99

$

Usually ships in 4-12 days

0

133

COVER, CHARGE PUMP

Note: 52688

$

$

Not available

134

Ariens 21543759

HFHCS 1/4-20X.75

Note: 50752

$2.99

$

Usually ships in 4-12 days

0

140

SPACER .320 x 1.005 x .179

Note: 52527

$

$

Not available

141

ARM, NEUTRAL RIGHT

Note: 51945

$

$

Not available

142

Ariens 21543843

SHCS 5/16-24X1 PATCH

Note: 51616

$

$

Not available

146

Ariens 21543871

WASHER

Note: 51950

$5.49

$

Usually ships in 4-12 days

0

147

Ariens 21544001

SPRING, HYDROGEAR P/N 51833

Note: 51833

$15.99

$

Usually ships in 4-12 days

0

200

Ariens 21543999

KIT, SEAL

Note: 71410

$54.99

$

Usually ships in 4-12 days

0

201

KIT, CENTER SECTION, RH, CHRG

Note: 71561

$

$

Not available

202

KIT, CHARGE RELIEF

Note: 71436

$

$

Not available

203

KIT, CHARGE PUMP

Note: 71411

$

$

Not available

207

KIT, FAN & PULLEY

Note: 71833

$

$

Not available

209

Ariens 21544009

HUB PULLER 4 BLT HYDGEAR 71459
(Superseded to 21544008)

Note: 71459

$497.99

$

Usually ships in 4-12 days

0

210

Ariens 21544010

INPUT SHAFT 2800 HYDGEAR 71442
(Superseded to 21544039)

Note: 71442

$

$

Not available

211

KIT, RTN, CW

Note: 71590

$

$

Not available

212

KIT, SHAFT, AXLE

Note: 71570

$

$

Not available
