915226 - Ariens Ikon-XL 42" Zero-Turn Mower, 22hp Kohler (SN: 035000 - 044999) Rear Tires and Transaxles - 42" Parts Diagram

Ikon-XL 42" Zero-Turn Mower, 22hp Kohler

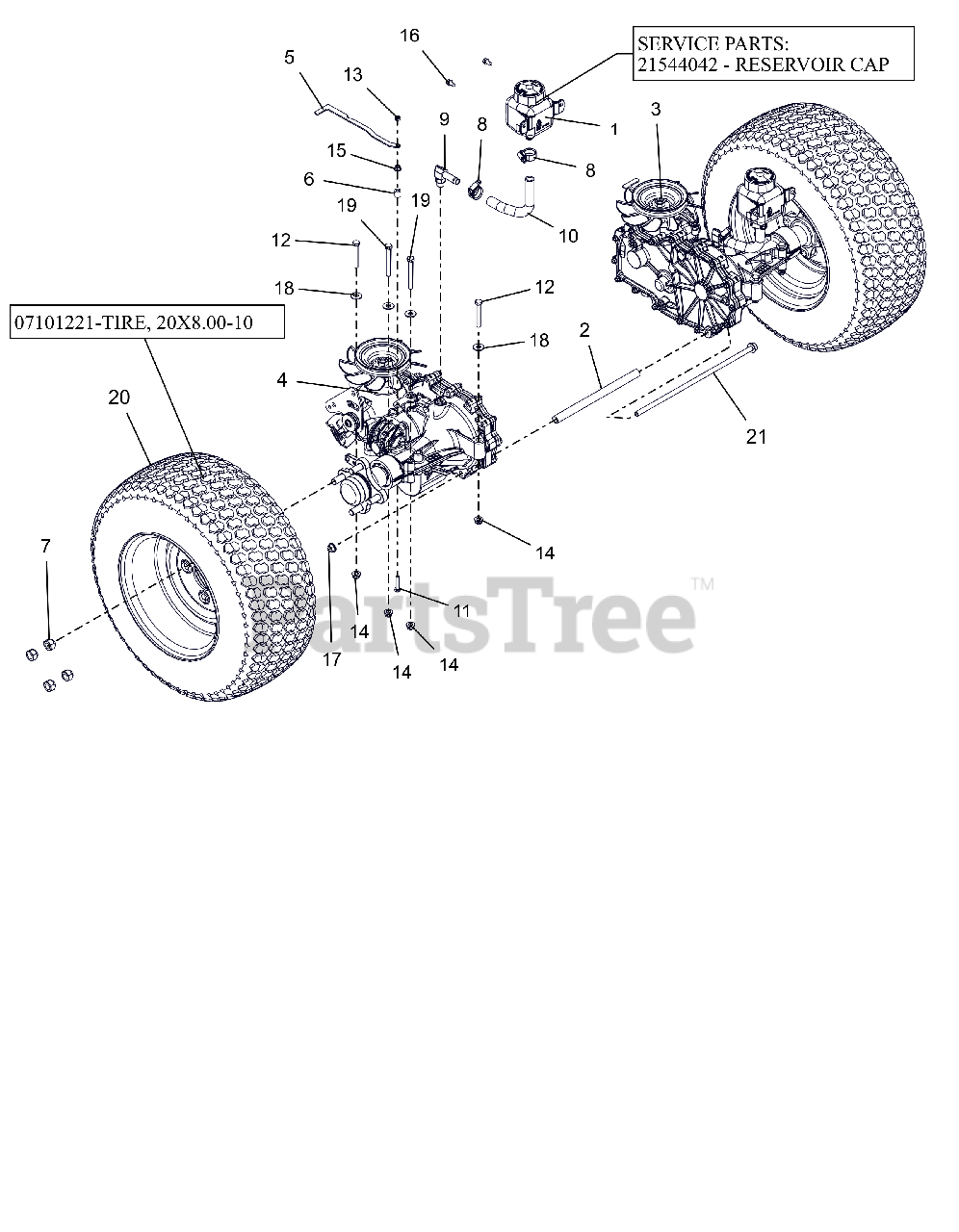

Rear Tires and Transaxles - 42" Parts Diagram

  • Title

1

Ariens 02970200

TANK, EXPANSION

$29.99

$

In Stock, Qty 9

0

1

Ariens 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$11.99

$

Usually ships in 4-12 days

0

2

Ariens 05162551

TUBE, TRANSAXLE BRACE -9.27LG

$19.99

$

In Stock, Qty 6

0

3

Ariens 04879900

TRANSAXLE,ZT2800 LH
(Superseded to 09160600)

$1427.99

$

Usually ships in 4-12 days

0

4

Ariens 04880100

TRANSAXLE,ZT2800 RH
(Superseded to 09160700)

$1462.99

$

Usually ships in 4-12 days

0

5

Ariens 04884151

BRKT, DUMP VALVE

$15.99

$

In Stock, only 2 left!

0

6

Ariens 05501112

BSHG-SLV .265X.500X.500

$3.99

$

In Stock, only 3 left!

0

7

Ariens 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 7

0

9

Ariens 07001528

FITTING, HYD (90 DEG)

$20.99

$

Usually ships in 4-12 days

0

10

Ariens 07001735

HOSE, FORMED LH XL

$22.99

$

Usually ships in 4-12 days

0

11

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

12

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$2.49

$

In Stock, Qty 9

0

13

Ariens 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, Qty 6

0

20

Ariens 07101122

ASM, WHL/TIRE 20X8.00-10
(Superseded to 07101311)

$200.99

$

Usually ships in 4-12 days

0

20

Ariens 07101221

TIRE, 20X8.00-10

Note: Component Service Part

$165.99

$

Usually ships in 4-12 days

0

20

Ariens 07140400

TUBE, 20X10-10

Note: Optional Component Service Part

$46.99

$

Usually ships in 4-12 days

0

21

Ariens 05901903

BLT,HEX-FLG .38-16X13 G5 ZCC

$14.99

$

In Stock, only 4 left!

0
