915289 (ZT 42) - Gravely 42" Zero-Turn Mower, 18hp Kawasaki FR (SN: 000101 & Above) Idlers and Sheaves - 42" Parts Diagram

42" Zero-Turn Mower, 18hp Kawasaki FR

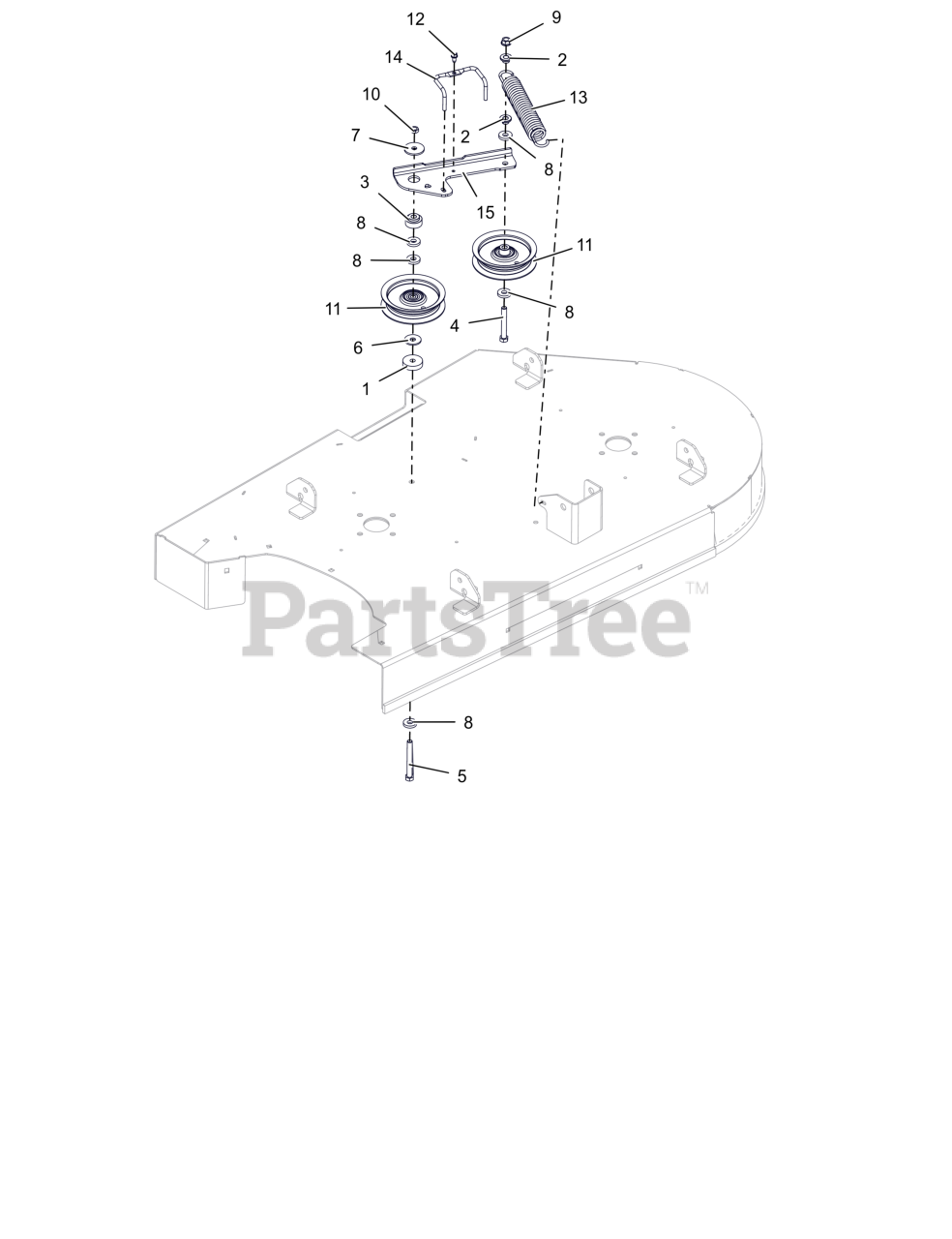

Idlers and Sheaves - 42" Parts Diagram

  • Title

1

Gravely 01594000

SPACER, .39 X 1.50 X .380

$4.99

$

In Stock, Qty 11

0

2

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.99

$

In Stock, Qty 20+

0

3

Gravely 05501529

BSHG, FLANGED

$5.99

$

In Stock, only 2 left!

0

4

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$5.49

$

In Stock, Qty 20+

0

5

Gravely 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$5.49

$

In Stock, Qty 14

0

6

Gravely 06401021

WSHR FL STL .406X1.25X.10ZC120

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$4.99

$

In Stock, Qty 20+

0

8

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$3.99

$

In Stock, Qty 20+

0

9

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06500914

NUT-LK-CTR-JAM .375-16 GB ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07350100

IDLER, FLAT - 4.06" X .75"

$52.99

$

In Stock, Qty 20+

0

12

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 08300627

SPRG, EXTENSION .170X1.385X6.7

$22.99

$

In Stock, Qty 12

0

14

Gravely 09694700

WIREFORM, BELT FINGER

$7.99

$

Usually ships in 4-12 days

0

15

Gravely 09695053

ARM, IDLER ZT (RED)

$

$

Currently unavailable
