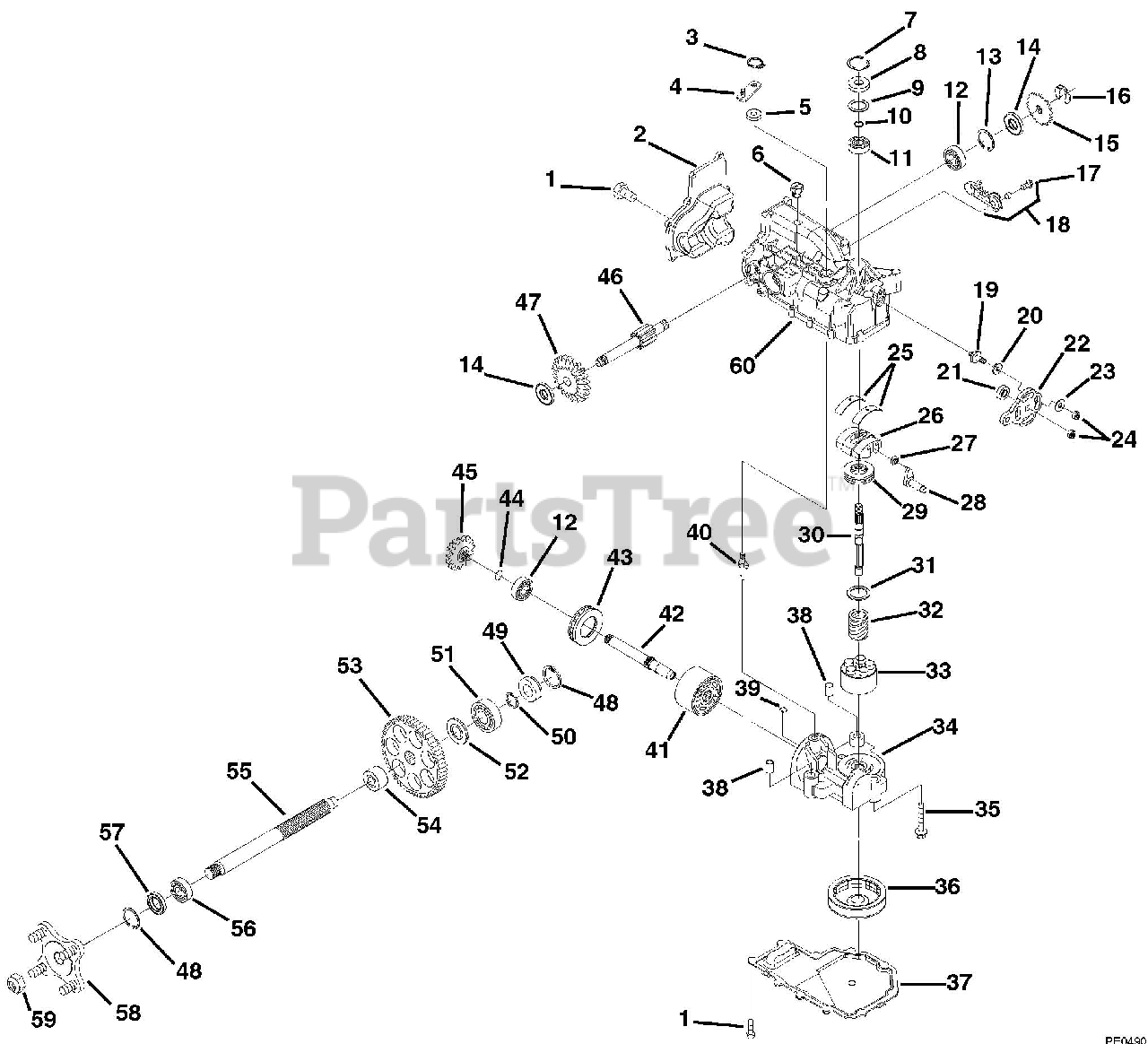

915306 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Hydrostatic Transaxle - Right Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

Hydrostatic Transaxle - Right Parts Diagram

  • Title

1

Screw 1/4-20 x .75

Note: Hydro-Gear p/n 50437

$

$

Not available

2

Ariens 21543984

COVER, END IZT

Note: Hydro-Gear p/n 50891RM

$

$

Not available

3

Ariens 08611400

RING. RETAINING1

Note: Hydro-Gear p/n 44870

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 08611100

ARM. BYPASS

Note: Hydro-Gear p/n 50270

$

$

Not available

5

Ariens 08613800

SEAL, LIP

Note: Hydro-Gear p/n 45074

$

$

Not available

6

Plug-Plastic

Note: Hydro-Gear p/n 9005200-5600

$

$

Not available

7

Ariens 08608800

RING. RETAINING

Note: Hydro-Gear p/n 2003052

$

$

Not available

8

Ariens 21543998

SEAL, LIP 15X35X7

Note: Hydro-Gear p/n 9008000-0128

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 21543964

WASHER .98X1.37X.04

Note: Hydro-Gear p/n 2003018

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 08613300

RING, WIRE RETAINING

Note: Hydro-Gear p/n 2003016

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 08613200

BEARING, SHAFT BALL

Note: Hydro-Gear p/n 2003043

$

$

Not available

12

Ariens 21543738

BRG, BALL 17X40X12

Note: Hydro-Gear p/n 50315

$11.99

$

Usually ships in 4-12 days

0

13

Ariens 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$3.99

$

Usually ships in 4-12 days

0

14

Seal-Brake Shaft

Note: Hydro-Gear p/n 50735

$

$

Not available

15

Ariens 21543760

BRAKE, PARK SPLINE

Note: Hydro-Gear p/n 50754

$15.99

$

Usually ships in 4-12 days

0

16

Kit-Retaining Ring

Note: Hydro-Gear p/n 70394

$

$

Not available

17

Ariens 21543791

HFHCS 1/4-20X.875

Note: Hydro-Gear p/n 51076

$

$

Not available

18

Ariens 00372100

BRAKE ARM, LH IZT
(Superseded to 51514300)

Note: Hydro-Gear p/n 70392

$54.99

$

In Stock, only 2 left!

0

19

Ariens 08611000

STUD. SHORT 5/16-24

Note: Hydro-Gear p/n 50426

$

$

Not available

20

Ariens 08613000

PACK, FRICTION

Note: Hydro-Gear p/n 50281

$

$

Not available

21

Seal-Lip

Note: Hydro-Gear p/n 90080000-0126

$

$

Not available

22

Arm-Control

Note: Hydro-Gear p/n 50749

$

$

Not available

23

Ariens 08611200

WASHER

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

24

Ariens 21543740

NUT, HEX 5/16-24 NYLON

Note: Hydro-Gear p/n 50317

$

$

Not available

25

Cradle Bearing

Note: Hydro-Gear p/n 2003023

$

$

Not available

26

Ariens 08609000

SWASHPLATE. VARIABLE

Note: Hydro-Gear p/n 2003087

$

$

Not available

27

Ariens 08610700

GUIDE. SLOT

Note: Hydro-Gear p/n 2000015

$

$

Not available

28

Ariens 08610800

ARM. TRUNNION TAPERED SQUARE

Note: Hydro-Gear p/n 50807

$56.99

$

Usually ships in 4-12 days

0

29

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$16.99

$

Usually ships in 4-12 days

0

30

Ariens 21543719

SHAFT, INPUT

Note: Hydro-Gear p/n 50005

$93.99

$

Usually ships in 4-12 days

0

31

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

Note: Hydro-Gear p/n 2003017

$2.99

$

Usually ships in 4-12 days

0

32

Ariens 08621500

SPRING. BLOCK

Note: Hydro-Gear p/n 2003014

$2.99

$

In Stock, Qty 5

0

33

Ariens 21543889

KIT, 10 CC BLOCK

Note: Hydro-Gear p/n 70331

$99.99

$

Usually ships in 4-12 days

0

34

Assembly-Center Section

Note: Hydro-Gear p/n 70340

$

$

Not available

35

Ariens 21543721

HFHCS 3/8-24X2.5 (PATCH)

Note: Hydro-Gear p/n 50016

$

$

Not available

36

Ariens 21543779

FILTER

Note: Hydro-Gear p/n 50990

$65.99

$

Usually ships in 4-12 days

0

37

Ariens 21543983

HSG, IZT LOWER

Note: Hydro-Gear p/n 50890RM

$

$

Not available

38

Ariens 21543718

PIN-HOLLOW .39X.5X1.

Note: Hydro-Gear p/n 50002

$

$

Not available

39

Bypass Plate

Note: Hydro-Gear p/n 2003554

$

$

Not available

40

Ariens 08609800

ACTUATOR, BYPASS

Note: Hydro-Gear p/n 2003555

$

$

Not available

41

Assembly-Cylinder Block 21cc

Note: Hydro-Gear p/n 70082

$

$

Not available

42

Ariens 21543761

SHAFT, MOTOR

Note: Hydro-Gear p/n 50757

$69.99

$

Usually ships in 4-12 days

0

43

Ariens 21543747

BRG, THRUST BALL 42X68X16

Note: Hydro-Gear p/n 50552

$

$

Not available

44

Ariens 21543960

RING, RET WIRE .561 ID

Note: Hydro-Gear p/n 2000022

$2.99

$

In Stock, only 2 left!

0

45

Ariens 21543754

GEAR, BEVEL 14T

Note: Hydro-Gear p/n 50744

$

$

Not available

46

Kit-Brake Shaft

Note: Hydro-Gear p/n 70393

$

$

Not available

47

Ariens 21543755

GEAR, BEVEL 19T

Note: Hydro-Gear p/n 50745

$

$

Not available

48

Ariens 21543763

RING, RET 1.87 INT

Note: Hydro-Gear p/n 50760

$3.99

$

Usually ships in 4-12 days

0

49

Ariens 21543780

PLUG, SEAL 1.86

Note: Hydro-Gear p/n 50995

$8.99

$

Usually ships in 4-12 days

0

50

Ariens 21543762

RING, RET .75 EXT

Note: Hydro-Gear p/n 50759

$

$

Not available

51

Ariens 21543753

BRG, BALL 20X47X14

Note: Hydro-Gear p/n 50743

$

$

Not available

52

Bushing-Axle

Note: Hydro-Gear p/n 50942-2

$

$

Not available

53

Ariens 21543756

GEAR, SPUR 53T

Note: Hydro-Gear p/n 50746

$

$

Not available

54

Bushing-Axle

Note: Hydro-Gear p/n 50942-1

$

$

Not available

55

Ariens 21543757

AXLE, 1.0X12.3

Note: Hydro-Gear p/n 50748

$188.99

$

In Stock, only 1 left!

0

56

Ariens 21543752

BRG, BALL 25X47X12

Note: Hydro-Gear p/n 50740

$16.99

$

In Stock, only 2 left!

0

57

Ariens 21543758

SEAL, LIP 25X47X7

Note: Hydro-Gear p/n 50751

$7.99

$

Usually ships in 4-12 days

0

58

Assembly-Hub

Note: Hydro-Gear p/n 70314

$

$

Not available

59

Nut-Hex 3/4-16

Note: Hydro-Gear p/n 50863

$

$

Not available

60

Housing-Upper Assembly

Note: Hydro-Gear p/n 70329

$

$

Not available
