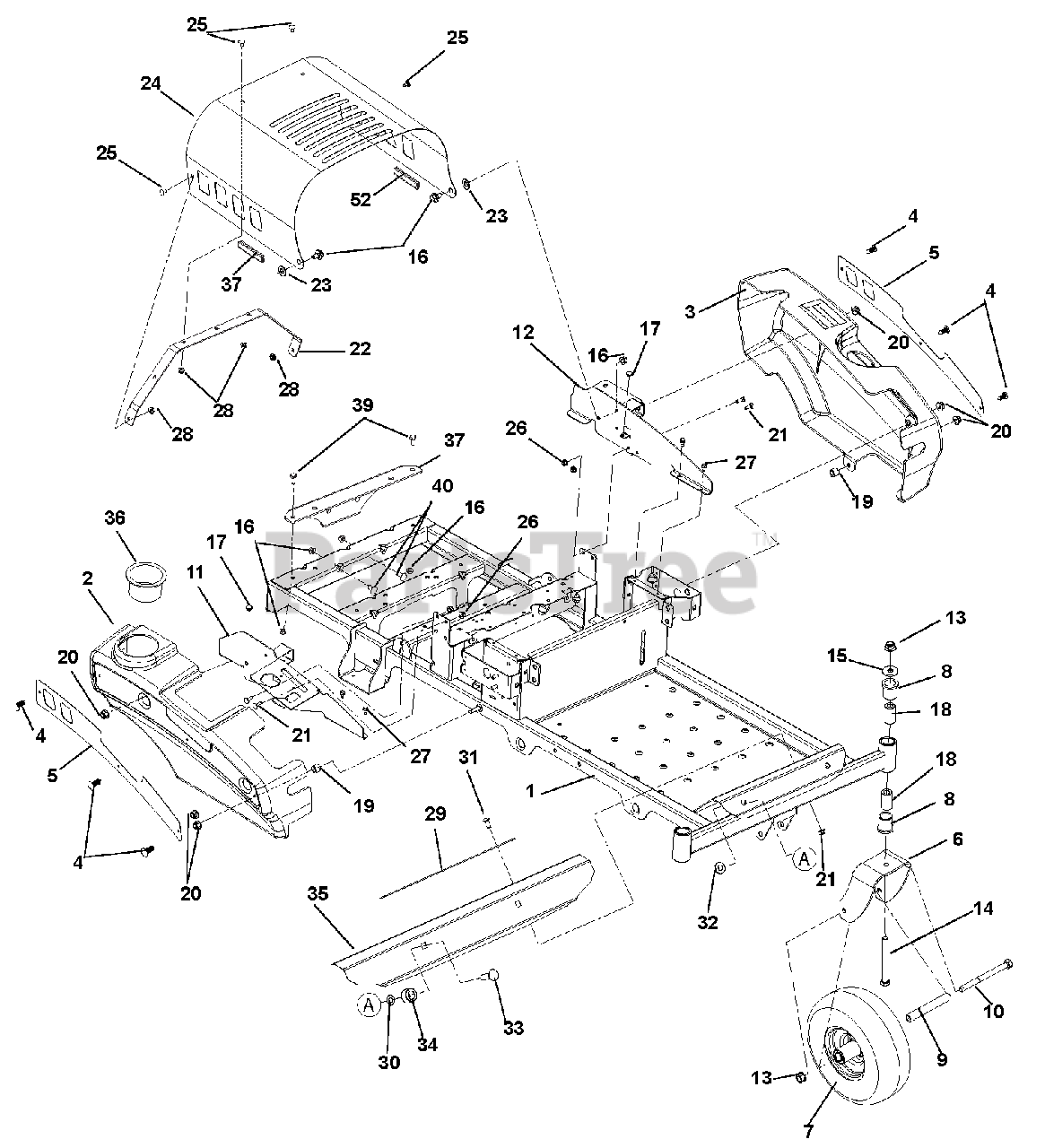

915322 - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 010000 - 029999) Frame, Hood, Fenders, Casters And Tires (3) Parts Diagram

Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton

Frame, Hood, Fenders, Casters And Tires (3) Parts Diagram

  • Title

1

Ariens 04282751

WMT, FRAME ZOOM/ZT
(Superseded to 51525800)

$

$

Not available

2

Ariens 03768600

FENDER, RH

$85.99

$

Usually ships in 4-12 days

0

3

Ariens 03768700

FENDER, LH
(Superseded to 51534400)

$108.99

$

Usually ships in 4-12 days

0

4

Ariens 07500125

RIVET, .25 NYLON PANEL

$1.99

$

In Stock, Qty 20+

0

5

Ariens 03769059

PLATE, FENDER

$42.99

$

Usually ships in 4-12 days

0

6

Ariens 03368559

WMT, CASTER FORK

$82.99

$

In Stock, only 3 left!

0

7

Ariens 07100801

TIRE/WHL ASM, FRONT

$78.99

$

In Stock, Qty 5

0

8

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$8.49

$

In Stock, Qty 20+

0

9

Ariens 00278500

SPACER, ROLLED WHEEL

$17.99

$

In Stock, Qty 20+

0

10

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$8.49

$

In Stock, Qty 20+

0

11

Ariens 04417651

WMT-RH FENDER MOUNT

$99.99

$

Usually ships in 4-12 days

0

12

Ariens 04240751

WLDMNT, LH FENDER MOUNT

$90.99

$

Usually ships in 4-12 days

0

13

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

14

Ariens 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$6.49

$

In Stock, Qty 20+

0

15

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.99

$

In Stock, Qty 20+

0

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (915323)065420002 Nut, Locking, Top, Flange .38-16 (915322)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 07056700

BOLT-SHLDR .375-16X.150

$5.49

$

In Stock, only 2 left!

0

17

Ariens 07503100

BUMPER GROMMET

$4.99

$

In Stock, Qty 14

0

18

Ariens 00363100

SPACER, CASTER .50X1.00X1.84

$8.49

$

In Stock, Qty 20+

0

19

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$6.99

$

In Stock, Qty 20+

0

20

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

21

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 04085759

BRACE, HOOD

$37.99

$

Usually ships in 4-12 days

0

23

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$1.49

$

In Stock, Qty 20+

0

24

Ariens 04411859

HOOD, ZOOM

$158.99

$

Usually ships in 4-12 days

0

25

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

26

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

29

Ariens 03833800

GRIP, ADHESIVE (1" X 16" BLK)

Note: (1" x 16" BLK)

$4.99

$

Usually ships in 4-12 days

0

30

Ariens 06500705

NUT-PUSH, .50

$4.99

$

Usually ships in 4-12 days

0

31

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

32

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

33

Ariens 06224800

@BLT-RDHDSQNK .50-13X1.75 G5YZ
(Superseded to 06200330)

$6.99

$

Usually ships in 4-12 days

0

34

Ariens 04192901

TUBE, UPPER CONTROL PIVOT

$7.99

$

Usually ships in 4-12 days

0

35

Ariens 04188359

FOOTREST

$76.99

$

Usually ships in 4-12 days

0

36

Ariens 04192700

CUPHOLDER, SNAP-IN 3.75OD

$25.99

$

Usually ships in 4-12 days

0

37

Ariens 07500103

EDGING, CLUTCH PADDLE - 2.00"

$5.49

$

In Stock, Qty 9

0

38

Ariens 03853851

PLATE, BBZ HITCH KIT PLATE

Note: (915323)

$

$

Not available

39

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (915323)

$2.49

$

In Stock, Qty 11

0

40

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

Note: (915323)

$2.49

$

In Stock, Qty 20+

0
