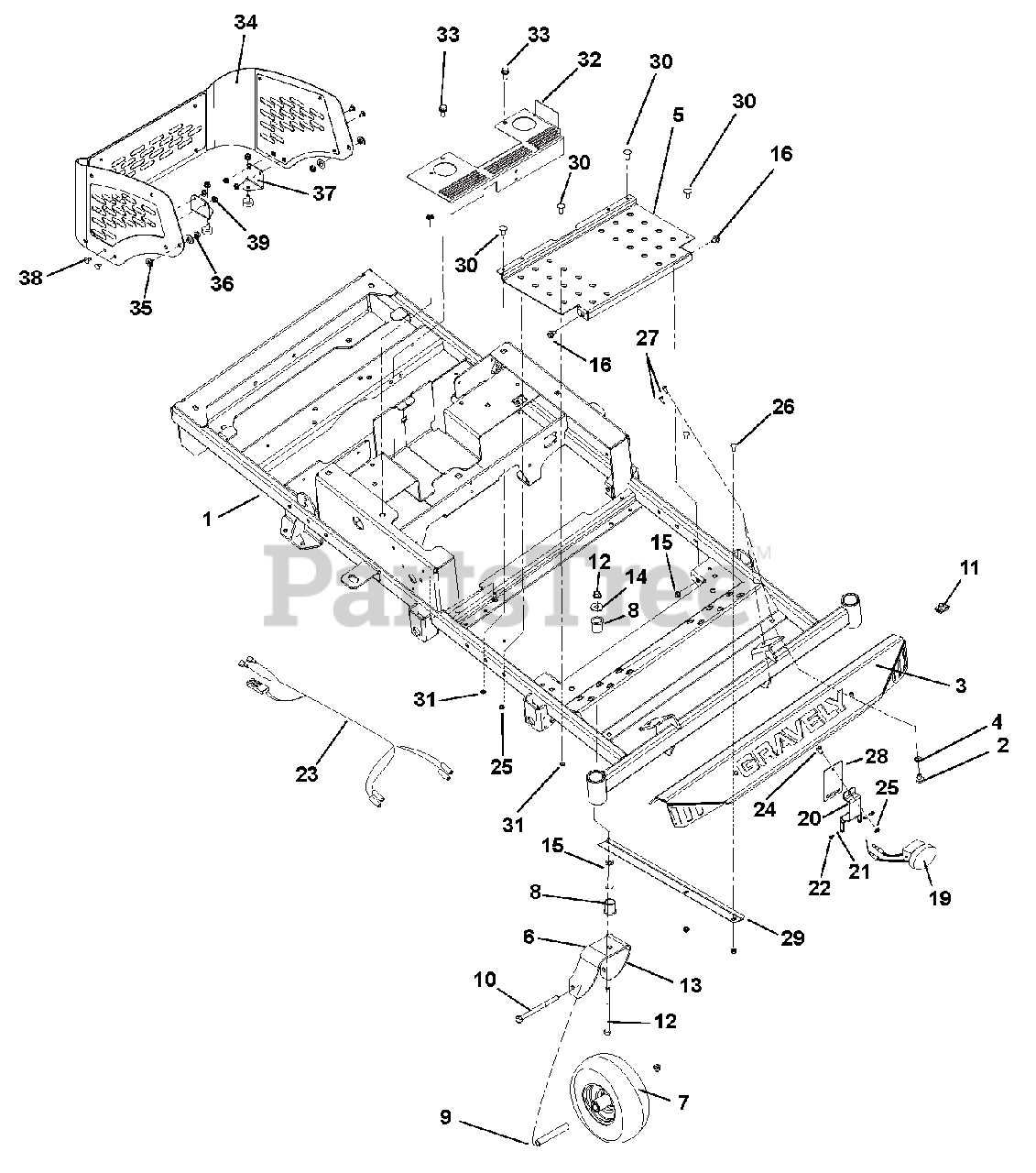

915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 030000 - 034999) Frame, Hood, Footrest, Casters And Tires Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Gravely 04559151

WLDMT, FRAME ZT/ZOOMXL (2013)

$1853.99

$

Usually ships in 4-12 days

0

2

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 04718253

WLDMT, FOOT-REST XL

$206.99

$

Usually ships in 4-12 days

0

4

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 04186451

PANEL WLDMT, FOOT PLATE

$116.99

$

Usually ships in 4-12 days

0

6

Gravely 03368553

WMT, CASTER FORK

$78.99

$

In Stock, Qty 6

0

7

Gravely 07100124

TIRE/WHEEL ASSY, 11X4-5

$86.99

$

In Stock, Qty 20+

0

8

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$8.49

$

In Stock, Qty 20+

0

9

Gravely 00278500

SPACER, ROLLED WHEEL

$17.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$8.49

$

In Stock, Qty 20+

0

11

Gravely 07053300

NUT-RTNR .375-16X.37

$4.99

$

In Stock, only 2 left!

0

12

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$6.49

$

In Stock, Qty 20+

0

14

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 03262200

SPACER, CASTER FORK
(Superseded to 00363100)

$8.49

$

In Stock, Qty 20+

0

16

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 2 left!

0

17

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$1.49

$

In Stock, Qty 20+

0

19

Gravely 71513600

KIT, ZOOM/ZT XL LIGHT

$270.99

$

Usually ships in 4-12 days

0

20

Gravely 04728251

BRKT, LIGHT MOUNT

$23.99

$

Usually ships in 4-12 days

0

21

Gravely 06311200

WSHR-LK 4MMX1MM REG CL ZINC

$

$

Not available

22

Gravely 05980400

SCREW-M4X.07X8 SHCS CLZNC

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 04730600

HARNESS, XL HEADLIGHT

$41.99

$

Usually ships in 4-12 days

0

24

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

27

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 04728351

BRKT, LIGHT FRAME MOUNT

$8.99

$

Usually ships in 4-12 days

0

29

Gravely 03382551

BRACKET, LIGHT HARNESS

$23.99

$

Usually ships in 4-12 days

0

30

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 04168351

BRACKET, XL CE FAN GUARD

$

$

Not available

33

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 51526700

ASM, ENGINE WRAP XL

$182.99

$

Usually ships in 4-12 days

0

35

Gravely 05501127

BSHG-FLG .325X.499X.3X.875

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06528700

NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 04717951

BRKT, XL ENGINE WRAP FOOT

$17.99

$

Usually ships in 4-12 days

0

38

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 06500710

NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$1.49

$

In Stock, Qty 20+

0
