915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 035000 - 039999) Fuel Tank Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

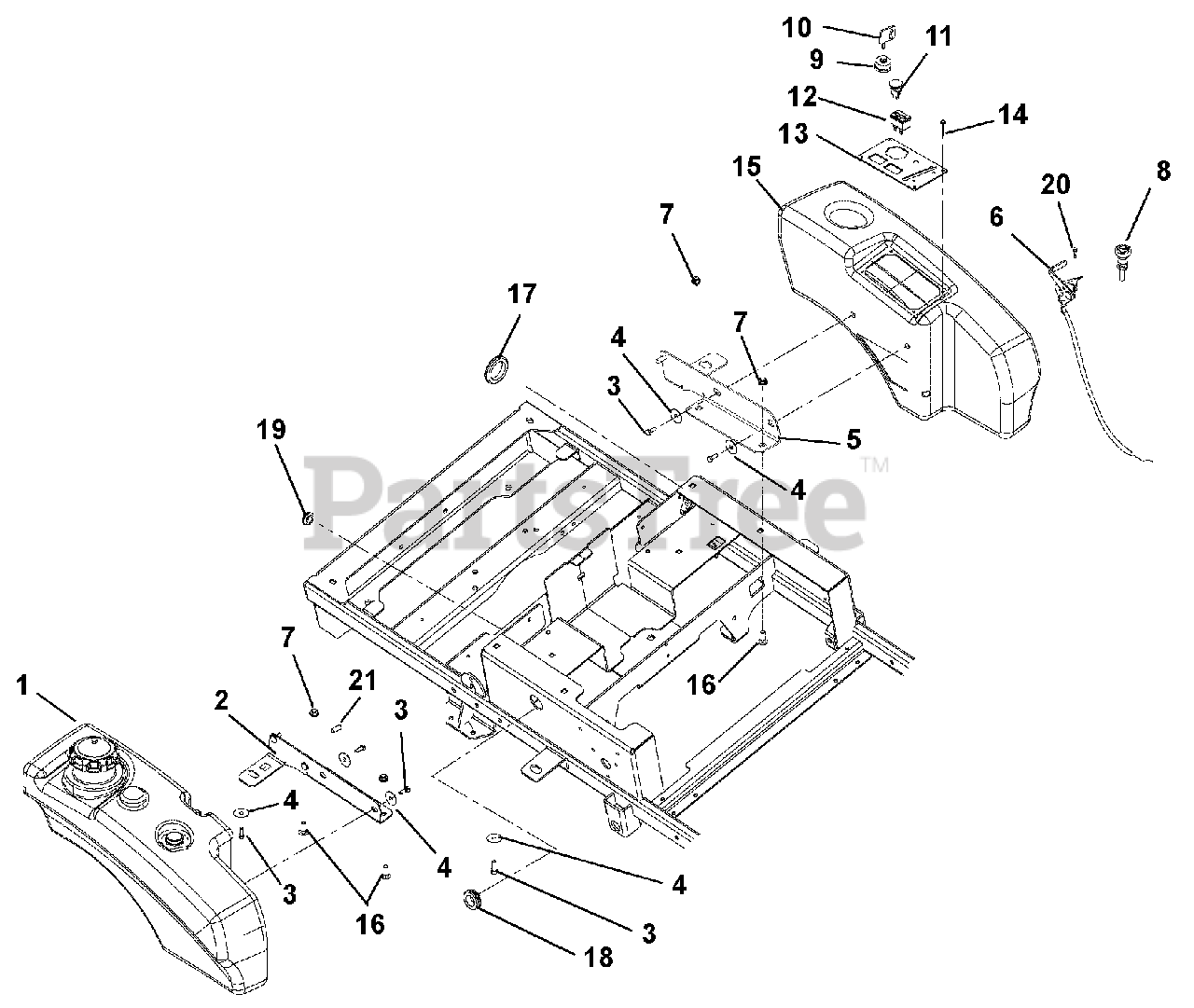

Fuel Tank Parts Diagram

  • Title

1

Gravely 04430400

TANK,ASSEMBLY XL CE

$443.99

$

In Stock, only 1 left!

0

2

Gravely 04718053

WLDMT, RH TANK MOUNT

$54.99

$

Usually ships in 4-12 days

0

3

Gravely 07049500

BLT-SERHFWH .312-18X.50 YWZC

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$3.49

$

In Stock, Qty 5

0

5

Gravely 04718153

WLDMT, LH FENDER MOUNT

$54.99

$

Usually ships in 4-12 days

0

6

Gravely 06900315

CABLE-THROTTLE

$

$

Not available

7

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06900323

CABLE, CHOKE

$74.99

$

Usually ships in 4-12 days

0

9

Gravely 01588300

KEY SWITCH

$31.99

$

In Stock, Qty 20+

0

10

Gravely 02460700

KEY -W/CAP

$11.99

$

In Stock, Qty 20+

0

11

Gravely 01545600

SWITCH, CLUTCH

$28.99

$

In Stock, Qty 20+

0

12

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$26.99

$

In Stock, Qty 20+

0

13

Gravely 02975751

CONTROL PANEL

$49.99

$

Usually ships in 4-12 days

0

14

Gravely 06830000

RIVET, PLASTIC .195 DIA.

$2.99

$

In Stock, Qty 20+

0

15

Gravely 02967400

FENDER, XL

$160.99

$

Usually ships in 4-12 days

0

16

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 07500017

GROMMET 1.70ID X 2.0OD

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 07506500

GROMMET 1.0ID X 1.38 OD

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 07500314

CAP, END .315 X 1.00

$

$

Not available
