915327 (ZT 34) - Gravely 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 035000 - 044999) Frame, Hood, Fenders, Casters And Tires Parts Diagram

34" Zero-Turn Mower, 16hp Briggs & Stratton

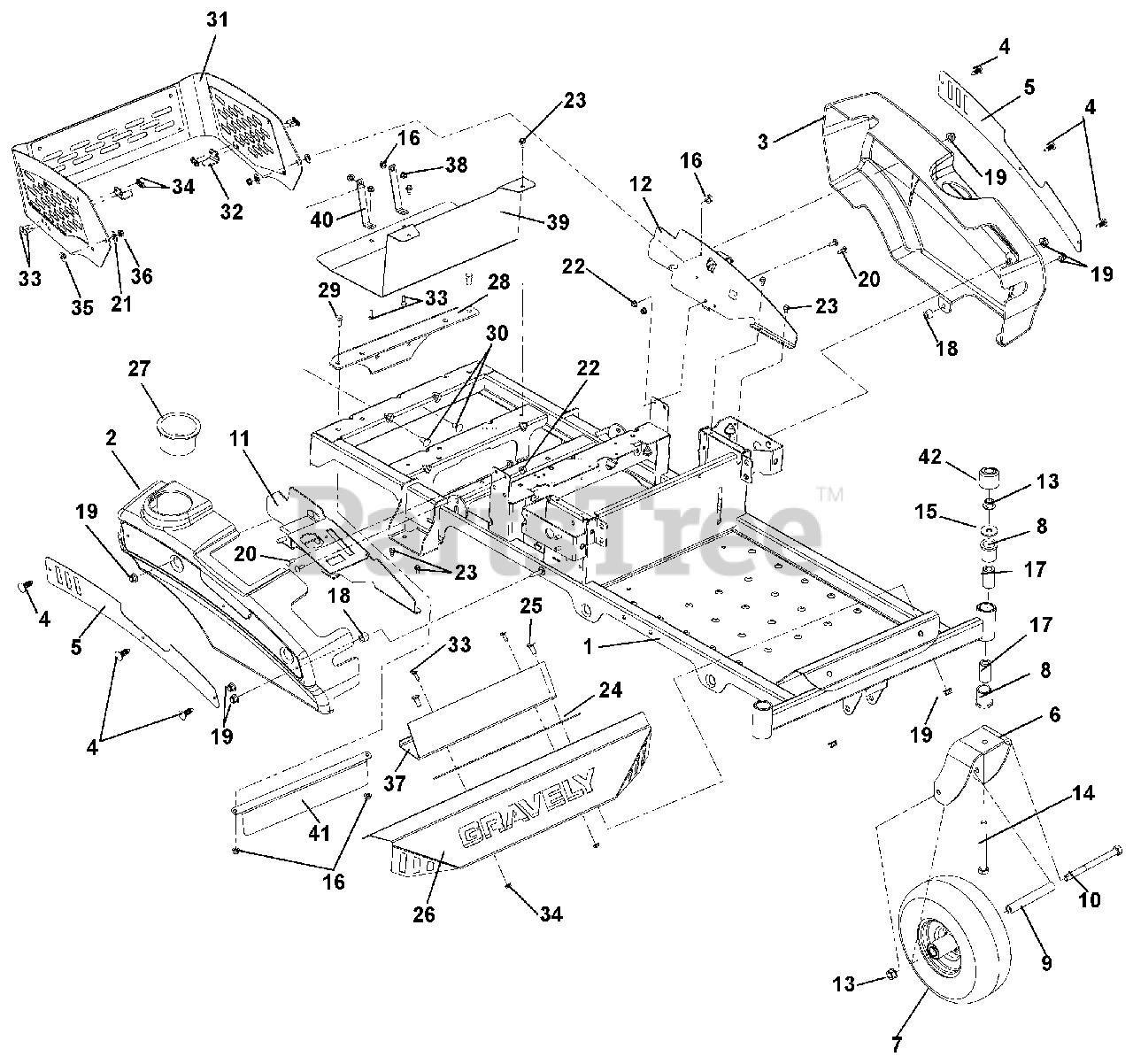

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 04393251

FRAME, WELDMENT ZOOM 2012
(Superseded to 51525900)

$

$

Not available

2

Gravely 03768600

FENDER, RH

$85.99

$

Usually ships in 4-12 days

0

3

Gravely 03768700

FENDER, LH
(Superseded to 51534400)

$108.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.99

$

In Stock, Qty 20+

0

5

Gravely 04717553

PLATE, FENDER ZT

$24.99

$

In Stock, only 3 left!

0

6

Gravely 03368559

WMT, CASTER FORK

$82.99

$

In Stock, only 3 left!

0

7

Gravely 07100124

TIRE/WHEEL ASSY, 11X4-5

$86.99

$

In Stock, Qty 20+

0

8

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$8.49

$

In Stock, Qty 20+

0

9

Gravely 00278500

SPACER, ROLLED WHEEL

$17.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$8.49

$

In Stock, Qty 20+

0

11

Gravely 04717353

WLDMT, RH FENDER MOUNT

$121.99

$

Usually ships in 4-12 days

0

12

Gravely 04717253

WLDMT, LH FENDER MOUNT

$96.99

$

Usually ships in 4-12 days

0

13

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$6.49

$

In Stock, Qty 20+

0

15

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (915328)

$1.99

$

In Stock, Qty 20+

0

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (915327)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$8.49

$

In Stock, Qty 20+

0

18

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.99

$

In Stock, Qty 20+

0

19

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 03833800

GRIP, ADHESIVE (1" X 16" BLK)

Note: (1" x 16" BLK)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

26

Gravely 04717053

PLATE, FOOT ZT

$68.99

$

Usually ships in 4-12 days

0

27

Gravely 04192700

CUPHOLDER, SNAP-IN 3.75OD

$25.99

$

Usually ships in 4-12 days

0

28

Gravely 03853851

PLATE, BBZ HITCH KIT PLATE

Note: (915328)

$

$

Not available

29

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

30

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

31

Gravely 51526600

ASSEMBLY, ENGINE WRAP ZT

$187.99

$

Usually ships in 4-12 days

0

32

Gravely 04733251

BRKT, ZT ENGINE WRAP FOOT (CE)

$

$

Not available

33

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06500710

NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05501127

BSHG-FLG .325X.499X.3X.875

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06528700

NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 04717151

PLATE, BACK FOOT-PLATE

$34.99

$

Usually ships in 4-12 days

0

38

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 04739351

GUARD, HEAT SHIELD (ZOOM/ZT)

Note: (ZT)

$58.99

$

Usually ships in 4-12 days

0

40

Gravely 04739451

STRAP, HEAT SHIELD (ZOOM/ZT)

Note: (ZT)

$15.99

$

Usually ships in 4-12 days

0

41

Gravely 04739551

GUARD, HOT SURFACE (ZOOM/ZT)

Note: (ZT)

$26.99

$

Usually ships in 4-12 days

0

42

Gravely 07500233

CAP, DUST

$10.99

$

In Stock, Qty 11

0
