917011 - Ariens 22-Ton Log Splitter, 174cc Subaru (SN: 010000 - 014999) Beam And Hydraulic Cylinder Parts Diagram

22-Ton Log Splitter, 174cc Subaru

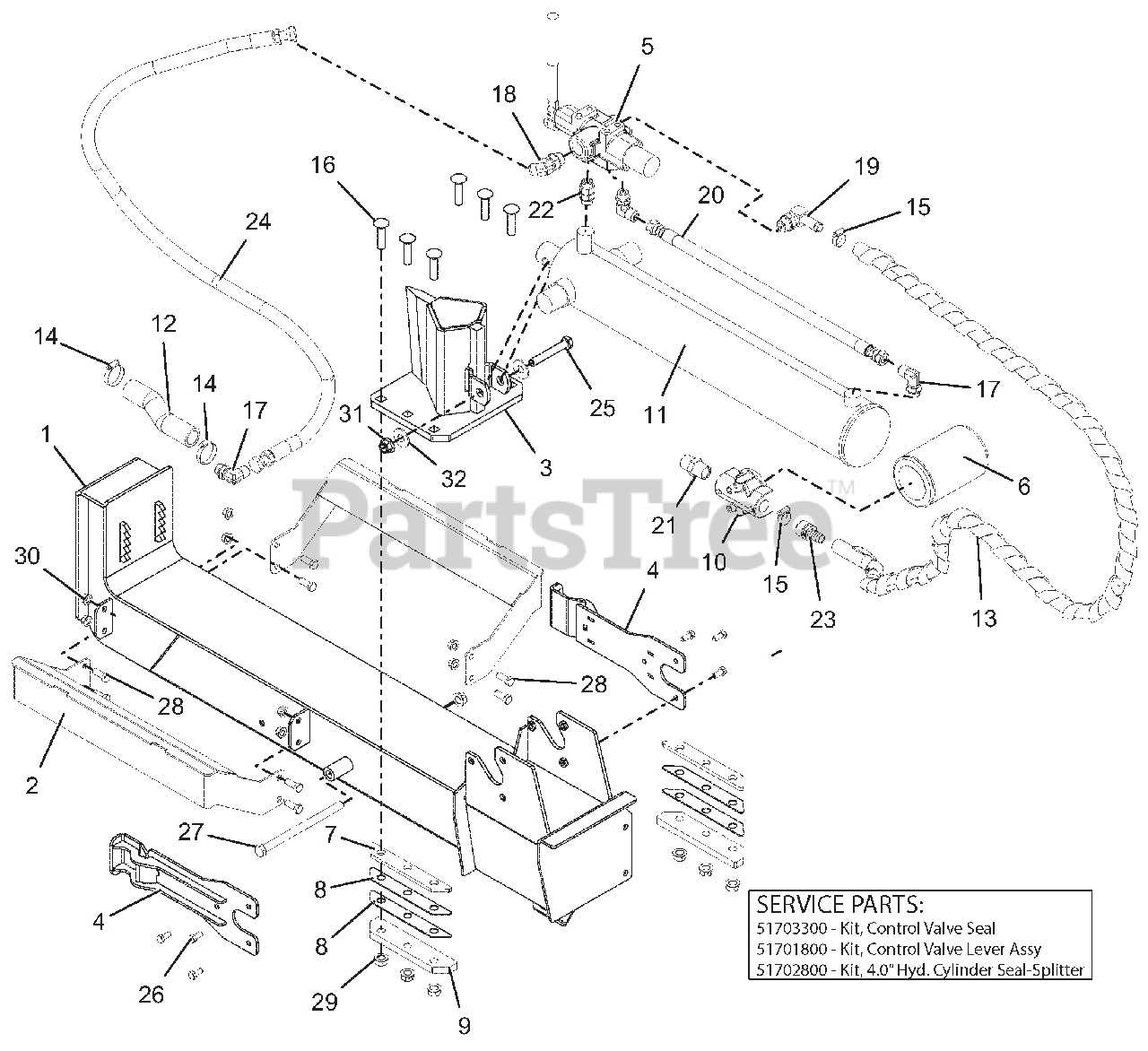

Beam And Hydraulic Cylinder Parts Diagram

  • Title

1

Ariens 04752951

WLDMT, BEAM - 22 TON SPLITTER
(Superseded to 51703900)

$980.99

$

Usually ships in 4-12 days

0

2

Ariens 04590851

WLDMT, CRADLE, LOG SPLITTER

$179.99

$

Usually ships in 4-12 days

0

3

Ariens 04824851

WMT, WEDGE - SPLITTER

Note: (BLACK)

$

$

Not available

4

Ariens 04861459

WLDMT, PLATE - STRIPPER

Note: (ORANGE)

$158.99

$

In Stock, only 3 left!

0

5

Ariens 03846300

VALVE CONTROL-SPLITTER

$318.99

$

In Stock, only 1 left!

0

5

Ariens 51703300

KIT,CONTROL VALVE SEAL

Note: SERVICE PART

$92.99

$

Usually ships in 4-12 days

0

5

Ariens 51701800

KIT,CONTROL VALVE LEVER ASSY

Note: SERVICE PART

$109.99

$

Usually ships in 4-12 days

0

6

Ariens 03931900

FILTER,OIL-W/BYPASS

$31.99

$

In Stock, Qty 18

0

7

Ariens 03967151

SPACER, WEDGE

$27.99

$

In Stock, only 1 left!

0

8

Ariens 04284651

SHIM,SPLITTER WEDGE

$41.99

$

Usually ships in 4-12 days

0

9

Ariens 04353251

RETAINER,WEDGE

$28.99

$

In Stock, only 2 left!

0

10

Ariens 04367300

HEAD,FILTER-3/4 NPT BYPASS

$

$

Not available

11

Ariens 04569800

CYLINDER, SPLITTER 4.0
(Superseded to 51702600)

$1015.99

$

Usually ships in 4-12 days

0

11

Ariens 51702800

KIT,4.0" HYD CYL SEAL-SPLITTER

$

$

Not available

12

Ariens 04594300

HOSE, HYD - SUCTION 7.375"

$31.99

$

Usually ships in 4-12 days

0

13

Ariens 04594400

HOSE, HYD-RET 801-10 WP 74"

$119.99

$

Usually ships in 4-12 days

0

14

Ariens 06922200

CLAMP-HOSE 1.50X.81X1.42

$6.99

$

Usually ships in 4-12 days

0

15

Ariens 06923500

CLAMP,.88 DIA. HOSE

$2.99

$

In Stock, Qty 7

0

16

Ariens 06200208

BLT-RDHDSQNKFTH.50-13X2 G8YWZC
(Superseded to 06200422)

$6.99

$

Usually ships in 4-12 days

0

17

Ariens 07001535

FTG,HYD 6801-8-8

$30.99

$

Usually ships in 4-12 days

0

18

Ariens 07001537

FTG,HYD 6802-8-10

$27.99

$

Usually ships in 4-12 days

0

19

Ariens 07001538

FTG,HYD 4601-10-10

$43.99

$

Usually ships in 4-12 days

0

20

Ariens 07001540

HOSE, HYD - 22"

$72.99

$

Usually ships in 4-12 days

0

21

Ariens 07001601

FTG,HYD 5404-12-12

$14.99

$

Usually ships in 4-12 days

0

22

Ariens 07001713

FTG, HYD - STR 08MAORB-08MORB

$17.99

$

In Stock, only 2 left!

0

23

Ariens 07001715

FTG,HYD STRAIGHT 10-12

$

$

Not available

24

Ariens 07001717

HOSE, HYD - 58"

$94.99

$

Usually ships in 4-12 days

0

25

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$4.99

$

In Stock, Qty 19

0

26

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$9.49

$

In Stock, Qty 13

0

28

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

29

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$2.49

$

In Stock, Qty 20+

0

30

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

32

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0
