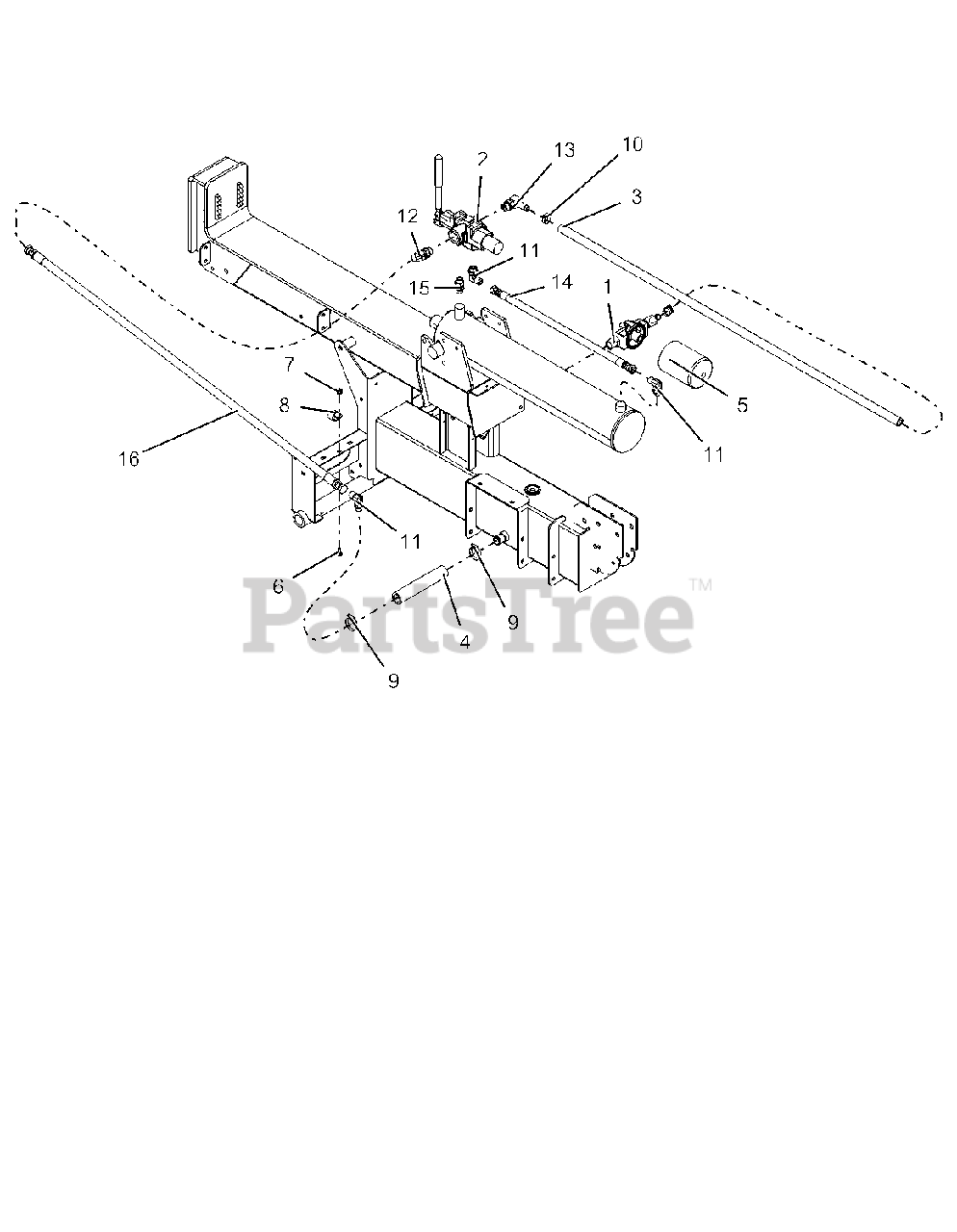

917031 - Ariens 27-Ton Log Splitter, 5.5hp Subaru (SN: 000101 - 011999) Hydraulic Hoses And Fittings Parts Diagram

27-Ton Log Splitter, 5.5hp Subaru

Hydraulic Hoses And Fittings Parts Diagram

  • Title

1

Ariens 61700400

ASM, FILTER HEAD

$80.99

$

Usually ships in 4-12 days

0

2

Ariens 03846300

VALVE CONTROL-SPLITTER

$318.99

$

In Stock, only 1 left!

0

2

Ariens 51701800

KIT,CONTROL VALVE LEVER ASSY

Note: SERVICE PART (NOT SHOWN)

$109.99

$

Usually ships in 4-12 days

0

2

Ariens 51703300

KIT,CONTROL VALVE SEAL

Note: SERVICE PRAT (NOT SHOWN)

$92.99

$

Usually ships in 4-12 days

0

3

Ariens 03859600

HOSE,HYD RETURN 10LOLA X 53"

$90.99

$

Usually ships in 4-12 days

0

4

Ariens 04594300

HOSE, HYD - SUCTION 7.375"

$31.99

$

Usually ships in 4-12 days

0

5

Ariens 04975800

FILTER,HYDRAULIC OIL-NO BYPASS

$44.99

$

Usually ships in 4-12 days

0

6

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

7

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

9

Ariens 06922200

CLAMP-HOSE 1.50X.81X1.42

$6.99

$

Usually ships in 4-12 days

0

10

Ariens 06923500

CLAMP,.88 DIA. HOSE

$2.99

$

In Stock, Qty 7

0

11

Ariens 07001535

FTG,HYD 6801-8-8

$30.99

$

Usually ships in 4-12 days

0

12

Ariens 07001537

FTG,HYD 6802-8-10

$27.99

$

Usually ships in 4-12 days

0

13

Ariens 07001538

FTG,HYD 4601-10-10

$43.99

$

Usually ships in 4-12 days

0

14

Ariens 07001540

HOSE, HYD - 22"

$72.99

$

Usually ships in 4-12 days

0

15

Ariens 07001713

FTG, HYD - STR 08MAORB-08MORB

$17.99

$

In Stock, only 2 left!

0

16

Ariens 07001717

HOSE, HYD - 58"

$94.99

$

Usually ships in 4-12 days

0
