917300 - Ariens 27-Ton Log Splitter, 6hp Subaru (SN: 010000 - 011999) Hydraulic Hoses And Fittings Parts Diagram

27-Ton Log Splitter, 6hp Subaru

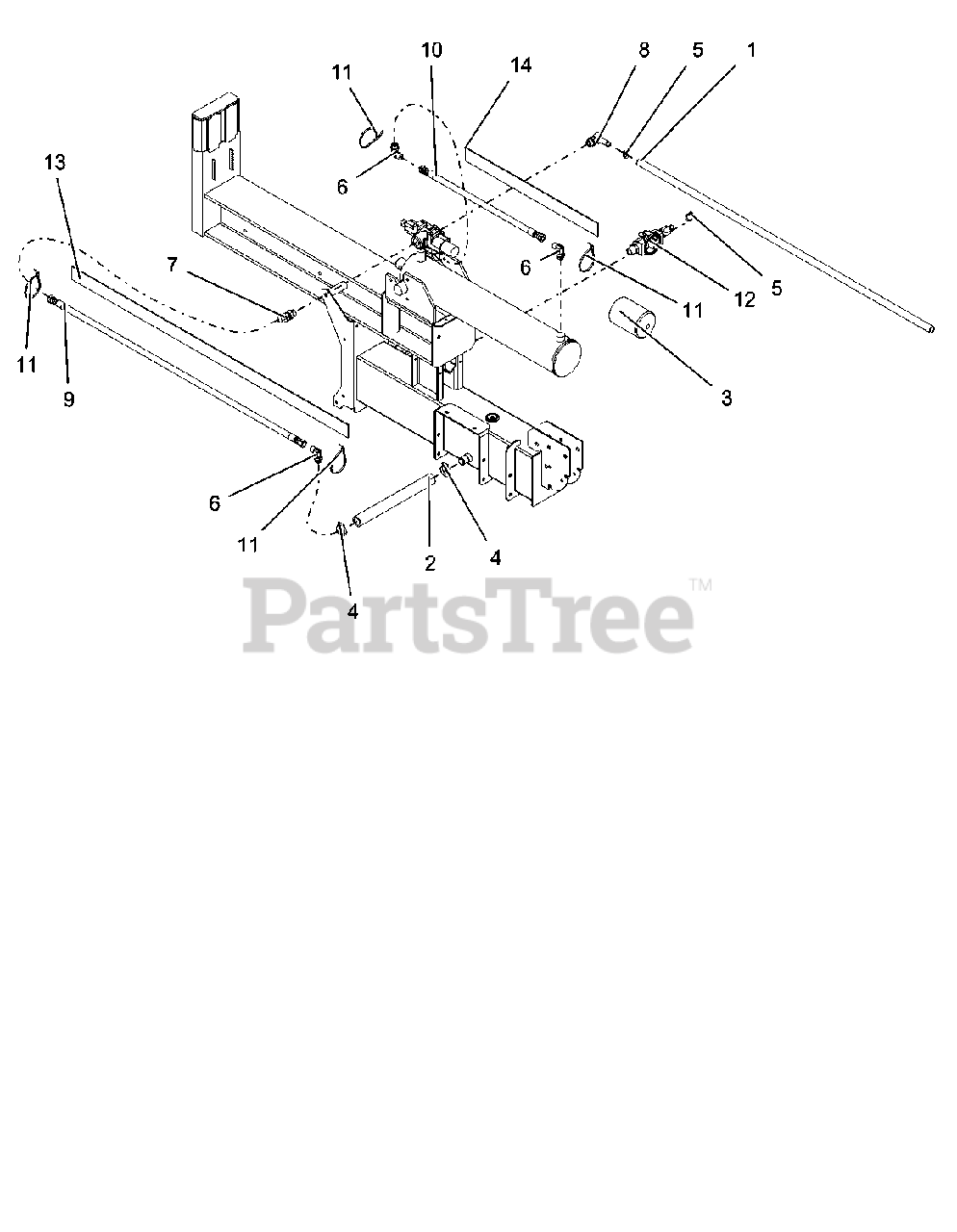

Hydraulic Hoses And Fittings Parts Diagram

  • Title

1

Ariens 03859600

HOSE, HYD RETURN 10L0LA X 53"

$90.99

$

Usually ships in 4-12 days

0

2

Ariens 03859700

HOSE, HYD SUCTION 16G4H X 13.5

$62.99

$

Usually ships in 4-12 days

0

3

Ariens 04975800

FILTER, HYDRAULIC OIL-NO BYPASS

$44.99

$

Usually ships in 4-12 days

0

4

Ariens 06922200

CLAMP, HOSE 1.50 X .81 X 1.42

$6.99

$

Usually ships in 4-12 days

0

5

Ariens 06923500

CLAMP, .88 DIA HOSE

$2.99

$

In Stock, Qty 7

0

6

Ariens 07001535

FTG, HYD. 2501-8-8

$30.99

$

Usually ships in 4-12 days

0

7

Ariens 07001537

FTG, HYD. 6802-8-10

$27.99

$

Usually ships in 4-12 days

0

8

Ariens 07001538

FTG, HYD. 4601-10-10

$43.99

$

Usually ships in 4-12 days

0

9

Ariens 07001539

HOSE, ASM - 46"

$160.99

$

Usually ships in 4-12 days

0

10

Ariens 07001540

HOSE, ASM - 22"

$72.99

$

Usually ships in 4-12 days

0

11

Ariens 07517300

CABLE, TIE 5.50 LG

$1.99

$

Usually ships in 4-12 days

0

12

Ariens 61700400

ASM, FILTER HEAD

$80.99

$

Usually ships in 4-12 days

0

13

Ariens 04355000

SLV, PROTECTIVE -50"

$23.99

$

Usually ships in 4-12 days

0

14

Ariens 04355100

SLV, PROTECTIVE -24"

$

$

Not available
