918012 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 030000 - 034999) Deck, Belt, Baffles, Blades and Spindles - 42" Parts Diagram

42" Zero-Turn Mower, 21.5hp Kawasaki FR

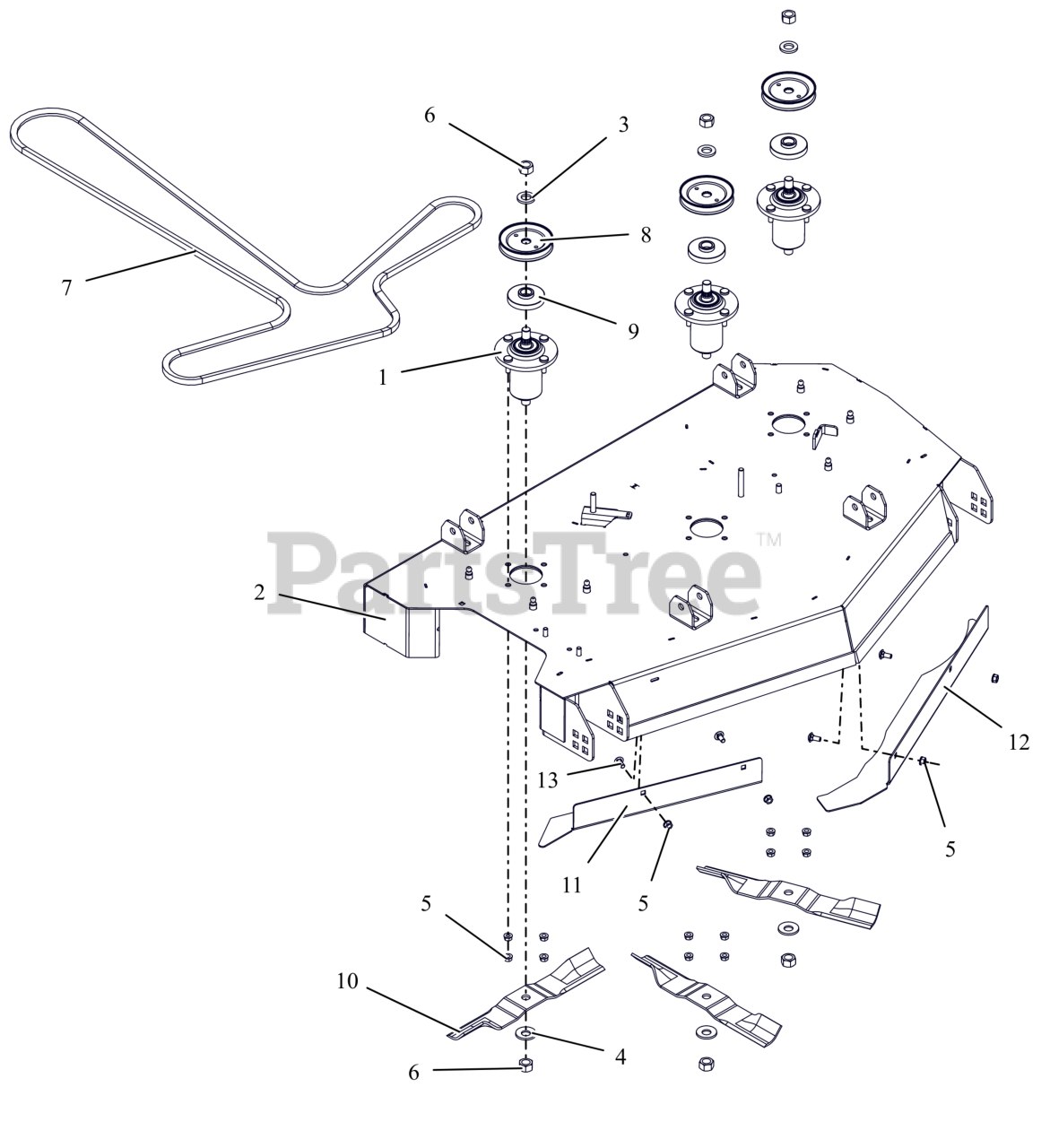

Deck, Belt, Baffles, Blades and Spindles - 42" Parts Diagram

  • Title

1

Gravely 30138800

ASM, ALUMINUM SPINDLE SUB

$104.99

$

In Stock, Qty 20+

0

2

Gravely 51800500

KIT-GRAVELY DECK 42" W/ DECALS

$734.99

$

Usually ships in 4-12 days

0

3

Gravely 05501510

SPCR- .735 X 1.313 X .165

$7.99

$

In Stock, Qty 20+

0

4

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

5

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06500920

NUT-STD .625-18 ZCC

$2.99

$

In Stock, Qty 20+

0

7

Gravely 07200436

V-BELT, HA-WRAPPED

$82.99

$

In Stock, Qty 15

0

8

Gravely 07351600

PULLEY-V-4.00 ODX.625SPLINE ID

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 09482000

SHIELD, DUST

$10.99

$

In Stock, Qty 20+

0

10

Gravely 09658900

BLADE- 14.5" MOWER (HI-LIFT)

$25.99

$

In Stock, Qty 20+

0

11

Gravely 30203553

BAFFLE, 42" RH VACUUM (RED)

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 30203653

BAFFLE, 42" LH VACUUM (RED)

$23.99

$

Usually ships in 4-12 days

0

13

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$3.49

$

In Stock, Qty 20+

0
