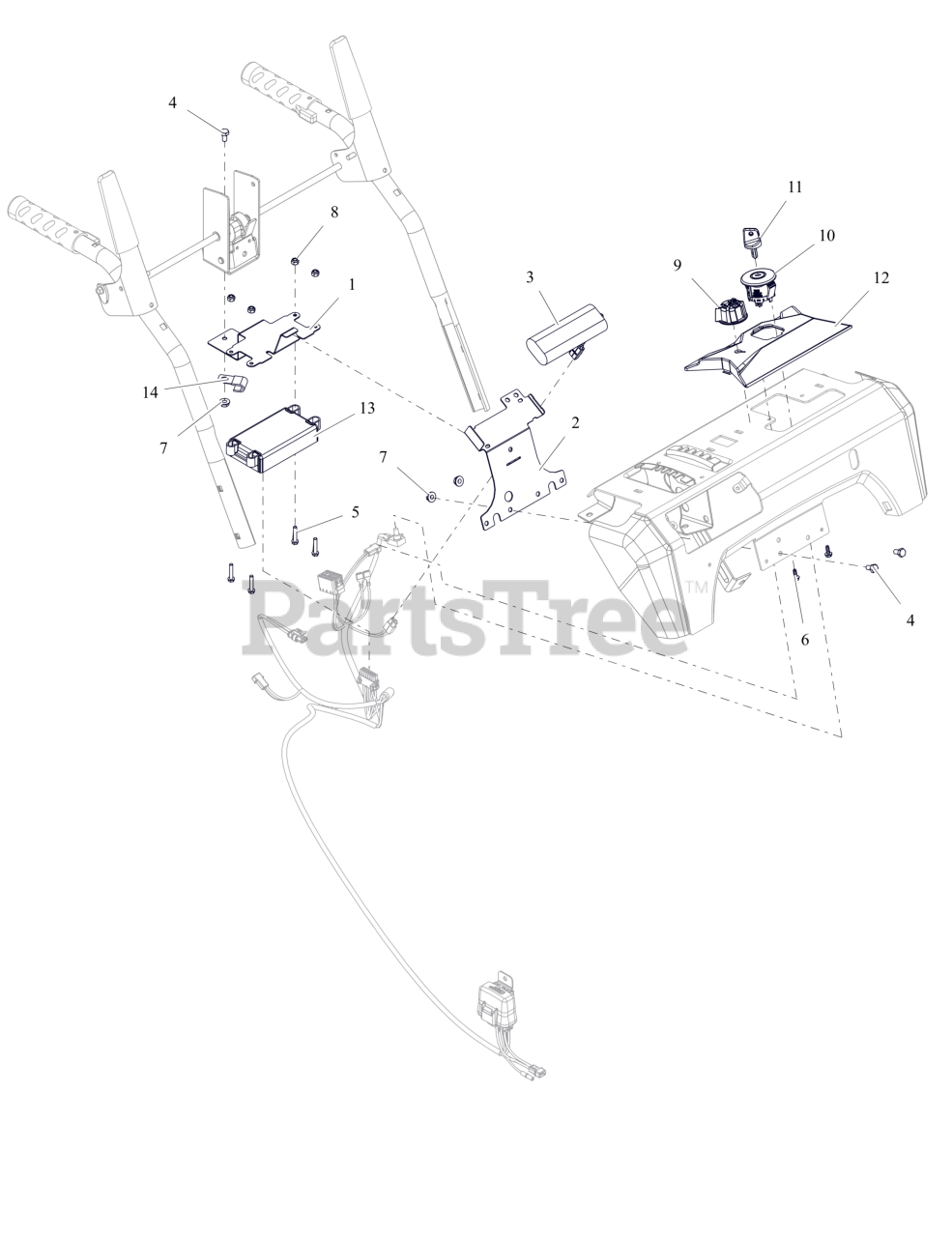

921049 - Ariens Deluxe 30" EFI Snow Blower, Ariens AX 306cc EFI engine (SN: 200000 & Above) Electrical - EFI Parts Diagram

Deluxe 30" EFI Snow Blower, Ariens AX 306cc EFI engine

Electrical - EFI Parts Diagram

  • Title

Not Shown

Ariens 05079500

CHARGER, BATTERY - EFI 7.2V

Note: Item Not Shown

$46.99

$

In Stock, only 1 left!

0

1

Ariens 04996651

BRACKET, ENGINE EFI-LCT LOWER

$18.99

$

Usually ships in 4-12 days

0

2

Ariens 04996751

BRACKET, ENGINE EFI-LCT UPPER

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 05076500

BATTERY, SNOW EFI - 7.2V

$68.99

$

In Stock, only 4 left!

0

4

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, only 2 left!

0

5

Ariens 05901838

BLT, HWH #10-24X1.00 ZCC

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 06100239

SCR, PLASTIC #10X.50

$2.99

$

In Stock, only 2 left!

0

7

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 11

0

8

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07500511

KNOB- CONTROL EFI

$10.99

$

Usually ships in 4-12 days

0

10

Ariens 09395100

IGNITION SWITCH ASM - 2 POS

$15.99

$

In Stock, only 1 left!

0

11

Ariens 09395101

KEY- IGNITION

$6.99

$

Usually ships in 4-12 days

0

12

Ariens 09428100

BEZEL-OPERATOR-EFI ELEC CHUTE

$17.99

$

Usually ships in 4-12 days

0

13

Ariens 20003127

ECU SERVICE LCT/CSI - 306CC

$290.99

$

Usually ships in 4-12 days

0

14

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 4 left!

0
