924323 (ST 1024) - Ariens 24" Snow Blower, 10hp Tecumseh (SN: 000101 & Above) Decals Parts Diagram

24" Snow Blower, 10hp Tecumseh

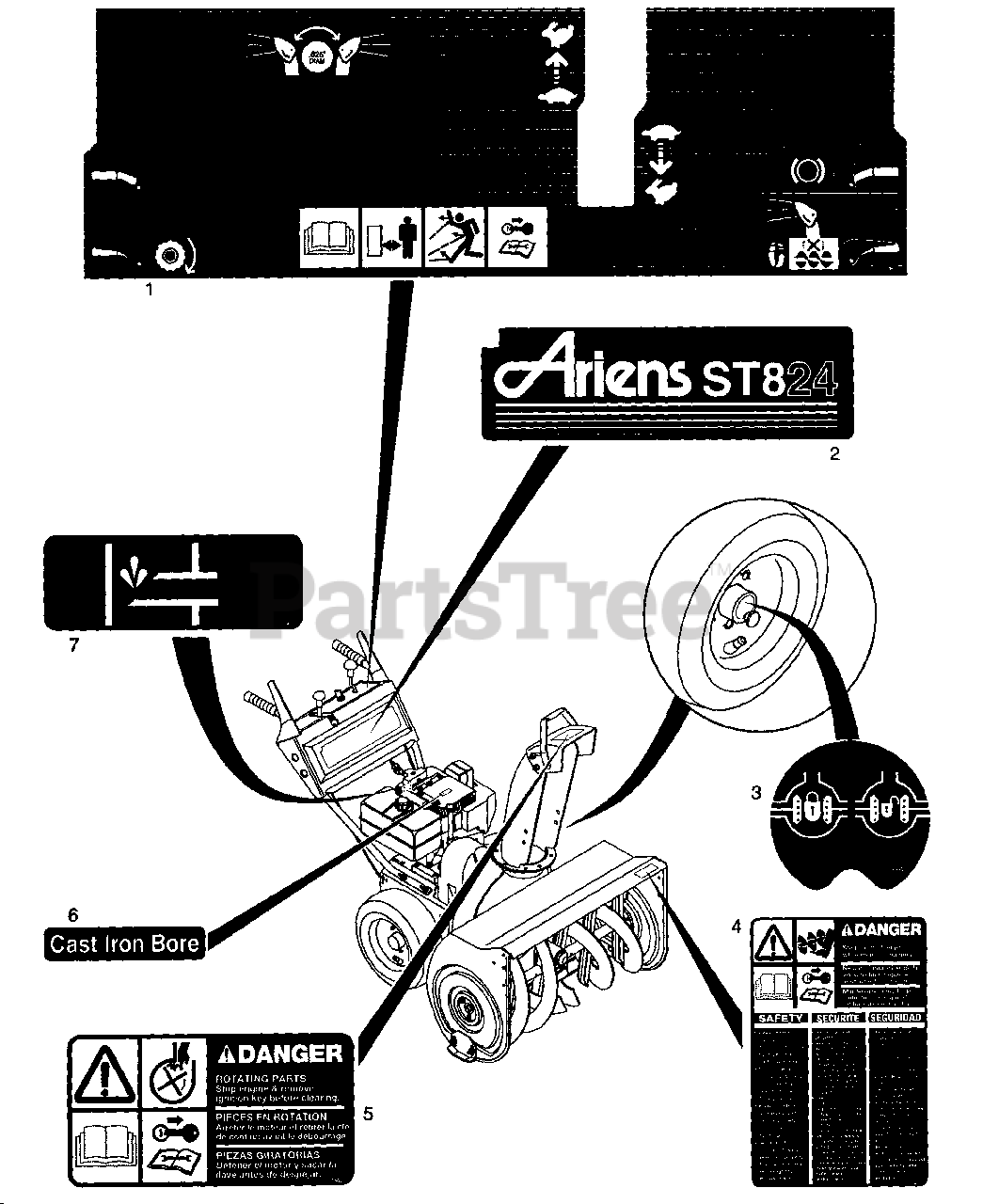

Decals Parts Diagram

  • Title

1

Ariens 07736000

DECAL, DASH

Note: (100,106,105,318,323)

$

$

Not available

Ariens 07734300

DECAL, DASH

Note: (102,104)

$

$

Not available

Ariens 07733700

DECAL, DASH

Note: (107,326,324,325)

$

$

Not available

2

Ariens 07736100

DECAL - ST824

Note: (100,318)

$

$

Not available

Ariens 07736400

DECAL - ST1028

Note: (104)

$

$

Not available

Ariens 07736300

DECAL - ST1032

Note: (102)

$

$

Not available

Ariens 07736200

DECAL - ST1024SHO

Note: (106,323)

$

$

Not available

Ariens 07733800

DECAL - ST 1336LE

Note: (107,326)

$

$

Not available

Ariens 07734400

DECAL, ST1128LE

Note: (324)

$

$

Not available

Ariens 07734500

DECAL, ST1132LE

Note: (325)

$

$

Not available

3

Ariens 07864400

DIFFERENTIAL LOCK DECAL

$29.99

$

Usually ships in 4-12 days

0

4

Ariens 07734100

DECAL, DANGER
(Superseded to 52416300)

Note: (100,102,104,105)

$79.99

$

Usually ships in 4-12 days

0

5

Ariens 07734200

DECAL, DANGER - ROT. PARTS
(Superseded to 52416300)

Note: (100,102,104,105)

$79.99

$

Usually ships in 4-12 days

0

6

Ariens 07797600

DECAL - CAST IRON BORE

$

$

Not available

7

Ariens 07733900

DECAL, PRIMER "TECUMSEH'S"

$

$

Not available
