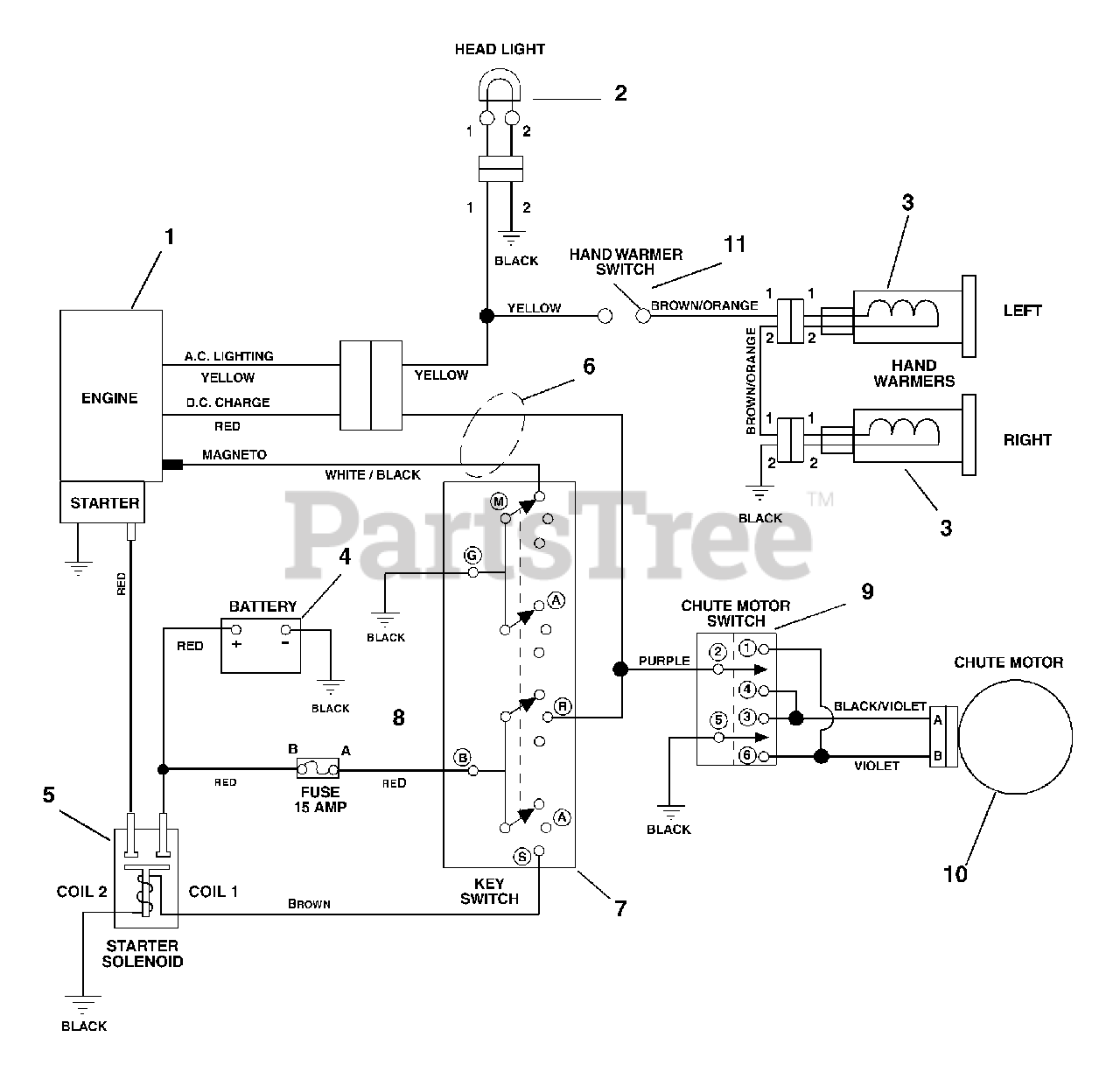

924502 (ST 1332) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 000101 & Above) Wiring Diagram Parts Diagram

32" Snow Blower, 13hp Tecumseh

Wiring Diagram Parts Diagram

  • Title

1

Ariens 08261100

ENGINE, 13HP OHV TEC.-12 VOLT

$

$

Not available

Ariens 08261000

ENGINE, 11HP OHV TEC.-12 VOLT

$

$

Not available

2

Ariens 02485900

HEADLIGHT
(Superseded to 02463600)

$85.99

$

Usually ships in 4-12 days

0

3

Ariens 07532900

WARMER, HAND W/TERMINAL
(Superseded to 07500514)

$51.99

$

In Stock, only 2 left!

0

4

Battery

Note: Recommend 340 to 350 CCA at 0° F. Size U1R or U1L

$

$

Not available

5

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$64.99

$

In Stock, Qty 20+

0

6

Ariens 02488700

HARNESS, WIRE COMP.

$197.99

$

Usually ships in 4-12 days

0

7

Ariens 52707300

SWITCH ASSEMBLY
(Superseded to 52709300)

$58.99

$

In Stock, only 2 left!

0

8

Ariens 00524700

FUSE, 15 AMP.

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 02485600

SWITCH, CHUTE ROTATION

$53.99

$

Usually ships in 4-12 days

0

10

Ariens 02486300

MOTOR, ELECTRIC RH - CHUTE
(Superseded to 52423300)

$

$

Not available

11

Ariens 02485700

SWITCH, ON/OFF

$17.99

$

In Stock, only 1 left!

0
