926092 (PRO 32) - Ariens Professional 32" Snow Blower, Ariens AX 420cc (SN: 000101 & Above) Controls Parts Diagram

Professional 32" Snow Blower, Ariens AX 420cc

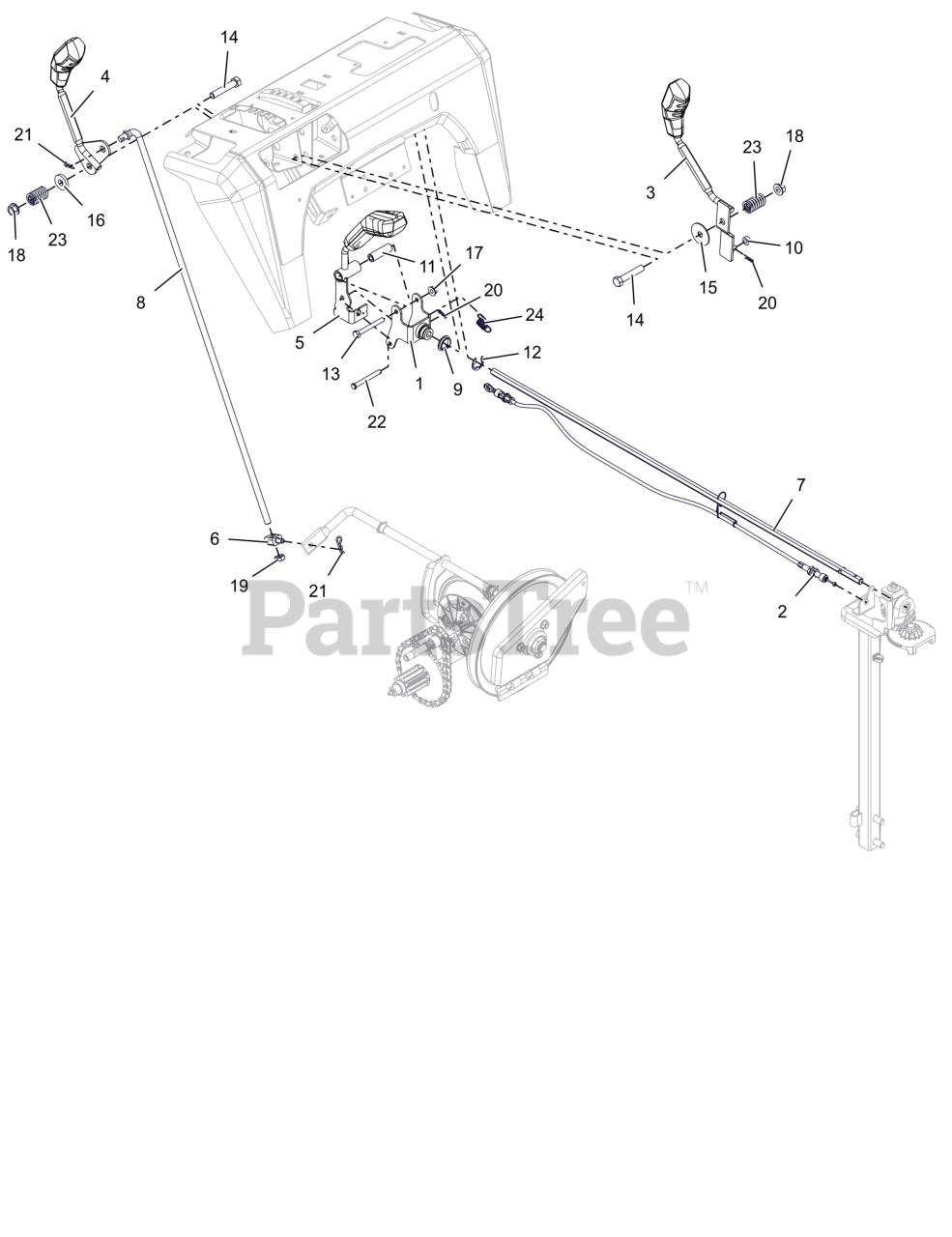

Controls Parts Diagram

  • Title

1

Ariens 05166800

WELDMENT, CONTROL BRACKET

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 06900615

CABLE, CHUTE LOCK, PRO

$43.99

$

In Stock, only 2 left!

0

3

Ariens 30191300

ASM, LEVER W/KNOB-LG DASH DEFL

$15.99

$

Usually ships in 4-12 days

0

4

Ariens 30191400

ASM, LEVER W/KNOB-LG DASH SPEED

$17.99

$

Usually ships in 4-12 days

0

5

Ariens 30191500

ASM, LEVER W/KNOB-QUICK TURN

$22.99

$

Usually ships in 4-12 days

0

6

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$8.49

$

In Stock, only 2 left!

0

7

Ariens 04507700

ROD, HEX - CHUTE ROTATION

$25.99

$

Usually ships in 4-12 days

0

8

Ariens 04753600

ROD, SHIFT - PRO

$28.99

$

Usually ships in 4-12 days

0

9

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.99

$

In Stock, only 2 left!

0

10

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, only 2 left!

0

11

Ariens 05501130

BSHG, SLV .265X.505X1.665

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 05700218

E-RING .750X.050

$2.99

$

In Stock, Qty 20+

0

13

Ariens 05901636

BLT,HEX .25-20X2.25 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

15

Ariens 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 10

0

16

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$3.49

$

In Stock, Qty 20+

0

17

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 6

0

18

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 10

0

21

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$1.49

$

In Stock, Qty 6

0

22

Ariens 06800137

PIN, CLEVIS - .25 X 2.25 ZCC

$3.99

$

In Stock, only 1 left!

0

23

Ariens 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, only 3 left!

0

24

Ariens 08337000

SPRING-EXT .047X.438X1.45

$6.49

$

In Stock, only 4 left!

0
