951301 (Mammoth 850) - Ariens Stand-On Snow Removal Tractor, Kawasaki FX (SN: 000101 - 003999) Fuel & Brine Tanks Parts Diagram

Stand-On Snow Removal Tractor, Kawasaki FX

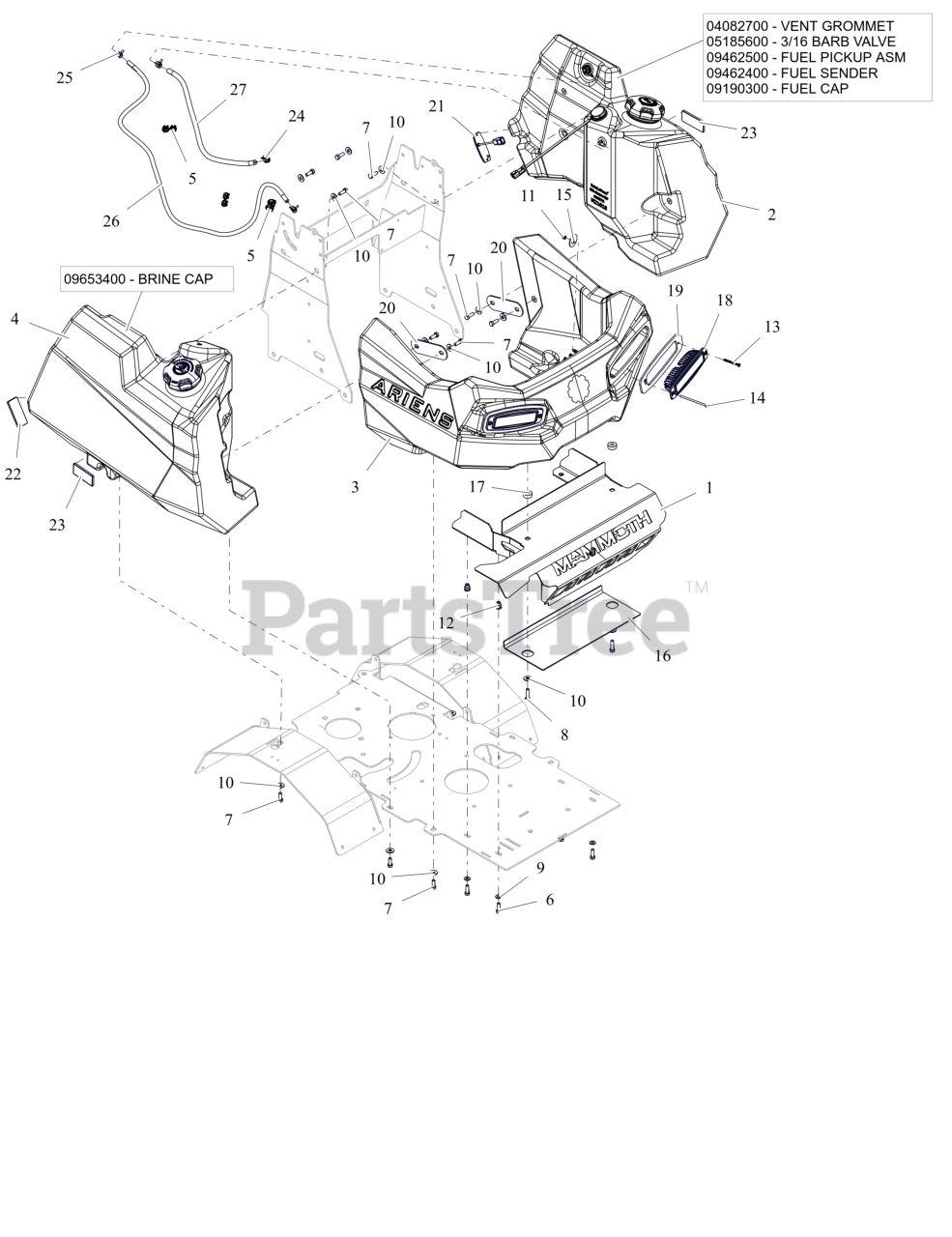

Fuel & Brine Tanks Parts Diagram

  • Title

1

Ariens 55100500

WLDMT, MUFFLER - W/DECAL

$581.99

$

Usually ships in 4-12 days

0

2

Ariens 55100600

FUEL TANK - W/DECALS

$816.99

$

Usually ships in 4-12 days

0

2

Ariens 04082700

GROMMET, REMOTE VENT NITRILE

Note: Component Service Part

$4.99

$

In Stock, Qty 20+

0

2

Ariens 05185600

VALVE, COMBINATION VENT 3/16

Note: Component Service Part

$19.99

$

In Stock, only 1 left!

0

2

Ariens 09462500

ASSEMBLY, FUEL PICKUP

Note: Component Service Part

$25.99

$

Usually ships in 4-12 days

0

2

Ariens 09462400

SENDER, FUEL

Note: Component Service Part

$127.99

$

Usually ships in 4-12 days

0

2

Ariens 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

Note: Component Service Part

$36.99

$

In Stock, Qty 10

0

3

Ariens 55100800

BUMPER TANK - W/DECAL

$504.99

$

Usually ships in 4-12 days

0

3

Ariens 09462800

PLUG- TANK-1" NPT

Note: Component Service Part

$13.99

$

Usually ships in 4-12 days

0

3

Ariens 09462700

PLUG- TANK-.375" NPT

Note: Component Service Part

$14.99

$

Usually ships in 4-12 days

0

3

Ariens 09463000

PLUG- TANK-.500 NPT

Note: Component Service Part

$13.99

$

Usually ships in 4-12 days

0

4

Ariens 55100700

BRINE TANK - W/DECALS

$518.99

$

Usually ships in 4-12 days

0

4

Ariens 09462800

PLUG- TANK-1" NPT

Note: Component Service Part

$13.99

$

Usually ships in 4-12 days

0

4

Ariens 09462700

PLUG- TANK-.375" NPT

Note: Component Service Part

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 09653400

CAP, BRINE - 3.50"

Note: Component Service Part

$37.99

$

Usually ships in 4-12 days

0

5

Ariens 09494600

CLIP- FUEL LINE

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

7

Ariens 05901801

BLT, HEX .31-18X.875 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

8

Ariens 05901803

BLT, HEX .31-18X1.25 G5 ZCC

$3.49

$

In Stock, Qty 12

0

9

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06800210

RVT, HEX 5/16-18 SHORT

$5.49

$

Usually ships in 4-12 days

0

13

Ariens 07002010

SCR-MACHINE- PAN 10-24X2

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07002011

SCR- MACHINE - PAN 10-24X3.25

$4.99

$

Usually ships in 4-12 days

0

15

Ariens 07002012

WSHR, CUP #10 ID X 1.5"OD

$

$

Currently unavailable

16

Ariens 09493400

WRAP-MFLR - HEATSHIELD

$63.99

$

Usually ships in 4-12 days

0

17

Ariens 09493500

SPCR- EXHAUST

$4.99

$

Usually ships in 4-12 days

0

18

Ariens 09493600

LIGHT- BAR W/ DT

$134.99

$

Usually ships in 4-12 days

0

19

Ariens 09493700

BEZEL- HEADLAMP

$13.99

$

Usually ships in 4-12 days

0

20

Ariens 09493800

COUPLER- PLATE TANKS

$7.49

$

Usually ships in 4-12 days

0

21

Ariens 09493900

LIGHT- FLAT LED - WHITE

$231.99

$

Usually ships in 4-12 days

0

22

Ariens 09494000

REFLECTOR- RED - ADHESIVE

$13.99

$

Usually ships in 4-12 days

0

23

Ariens 09494100

REFLECTOR-AMBER - ADHESIVE

$14.99

$

Usually ships in 4-12 days

0

24

Ariens 09494200

CLAMP- HOSE BAND - 1/4"

$2.99

$

Usually ships in 4-12 days

0

25

Ariens 09494300

CLAMP- HOSE BAND - 3/16"

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 09494400

HOSE- FUEL 3/16 X 48

$22.99

$

Usually ships in 4-12 days

0

27

Ariens 09494500

HOSE- FUEL - 1/4-20

$8.49

$

Usually ships in 4-12 days

0
