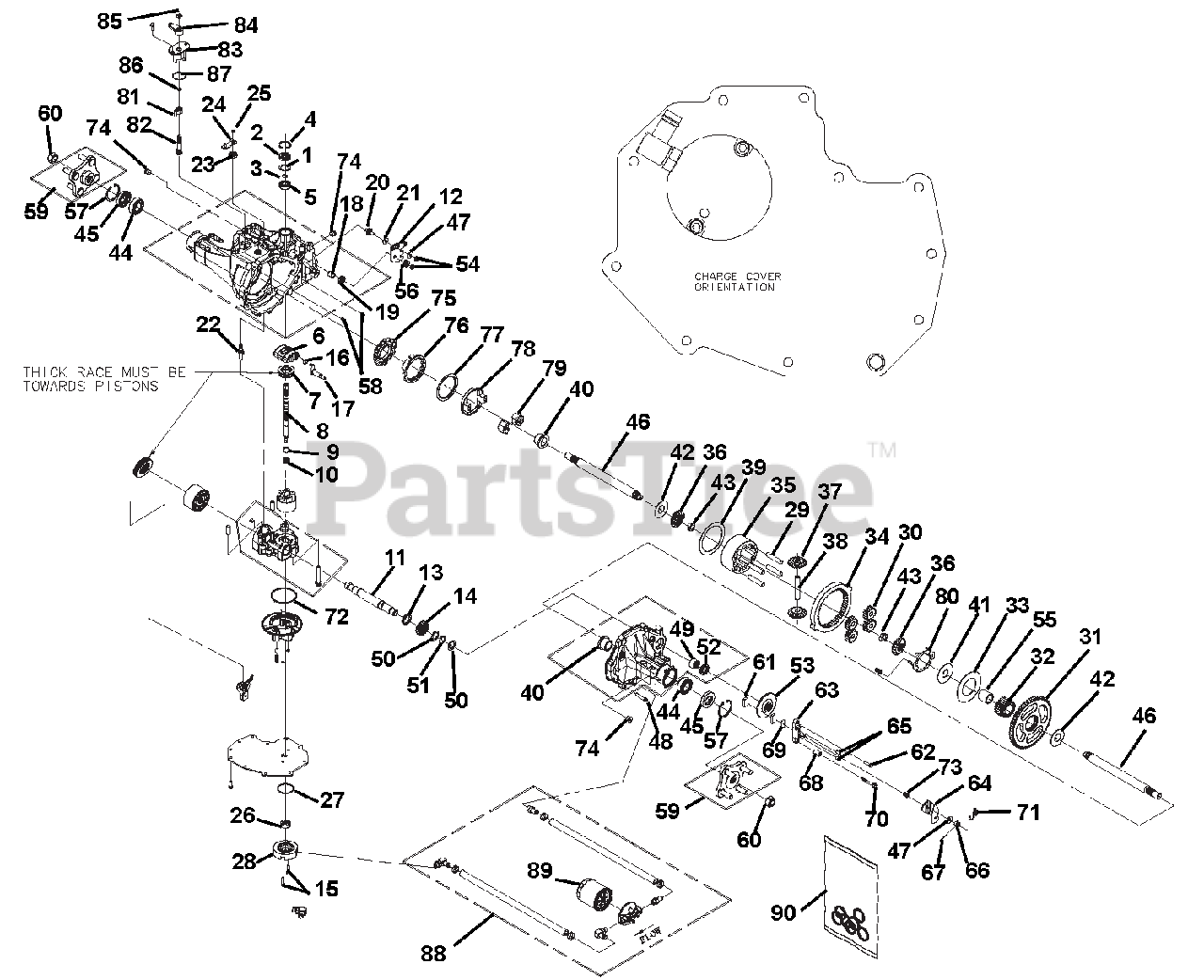

985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydrostat Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Hydrostat Parts Diagram

  • Title

1

Gravely 08608700

SPACER. .98 X 1.37 X .04
(Superseded to 21543964)

$1.99

$

Usually ships in 4-12 days

0

2

Gravely 08613400

SEAL, LIP
(Superseded to 21543998)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 08613300

RING, WIRE RETAINING

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 08608800

RING. RETAINING

$

$

Not available

5

Gravely 08613200

BEARING, SHAFT BALL

$

$

Not available

6

Gravely 08609000

SWASHPLATE. VARIABLE

$

$

Not available

7

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

$16.99

$

Usually ships in 4-12 days

0

8

Gravely 08609200

SHAFT. INPUT (STD CHARGE)

Note: (STD Charge)

$

$

Not available

9

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 08621500

SPRING. BLOCK

$2.99

$

In Stock, Qty 5

0

11

Gravely 08609600

SHAFT. MOTOR

$

$

Not available

12

Gravely 08609700

ARM. CONTROL

$

$

Not available

13

Gravely 08609900

WASHER, 6.1X14.2X1.4 M6

$

$

Not available

14

Gravely 08610500

GEAR. 16T PINION

$

$

Not available

15

Gravely 08610600

SCREW. GAP M6 X 1 X 25
(Superseded to 21543777)

$

$

Not available

16

Gravely 08610700

GUIDE. SLOT

$

$

Not available

17

Gravely 08610800

ARM. TRUNNION TAPERED SQUARE

$56.99

$

Usually ships in 4-12 days

0

18

Gravely 08610900

BEARING. TRUNNION

$

$

Not available

19

Gravely 08612900

SEAL, LIP
(Superseded to 21543997)

$

$

Not available

20

Gravely 08611000

STUD. SHORT 5/16-24

$

$

Not available

21

Gravely 08613000

PACK, FRICTION

$

$

Not available

22

Gravely 08609800

ACTUATOR, BYPASS

$

$

Not available

23

Gravely 08613800

SEAL, LIP

$

$

Not available

24

Gravely 08611100

ARM. BYPASS

$

$

Not available

25

Gravely 08611400

RING. RETAINING1

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 08611500

GEROTOR

$25.99

$

Usually ships in 4-12 days

0

27

Gravely 08611600

O-RING, 1.862 X 2.068
(Superseded to 21543991)

$

$

Not available

28

Gravely 08611700

HOUSING, EXT CHARGE PUMP

$

$

Not available

29

Gravely 08611800

PIN, CARRIER

$

$

Not available

30

Gravely 08611900

GEAR, 15T PLANET

$

$

Not available

31

Gravely 08612000

GEAR, 57T SPUR

$

$

Not available

32

Gravely 08612100

GEAR, 21T SUN

$

$

Not available

33

Gravely 08612200

WASHER, THRUST 2.32X4.10X.05

$

$

Not available

34

Gravely 08609500

GEAR, 51T RING

$

$

Not available

35

Gravely 08612300

CARRIER, PLANETARY

$

$

Not available

36

Gravely 08612400

GEAR, 14T MITER (SPLINED)

Note: (Splined)

$

$

Not available

37

Gravely 08612500

GEAR, 14T MITER (UNSPLINED)

Note: (unsplined)

$

$

Not available

38

Gravely 08612600

SHAFT, DIFFERENTIAL

$

$

Not available

39

Gravely 08612700

WASHER, THRUST 3.46X 4.39X .05

$

$

Not available

40

Gravely 08612800

BEARING, FLANGE 1.0X1.376X.99

$

$

Not available

41

Gravely 08613100

WASHER, 1.008 X 2.60 X .038

$

$

Not available

42

Gravely 08613600

WASHER, 1.0 X 2.25 X .04

$

$

Not available

43

Gravely 08613900

NUT, HEX 5/8-18 W/ PATCH

$

$

Not available

44

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

$15.99

$

In Stock, only 2 left!

0

45

Gravely 08614300

SEAL, LIP

$7.99

$

In Stock, only 4 left!

0

46

Gravely 08614400

SHAFT, AXLE, 1.0X12.40 (30OSPL

Note: (30 O Splined)

$

$

Not available

47

Gravely 08611200

WASHER

$4.49

$

Usually ships in 4-12 days

0

48

Gravely 08614800

SCREW, TORX HD 5/16-18 X 1.5

$

$

Not available

49

Gravely 08615000

BEARING, NEEDLE .875X1.125X.75

$

$

Not available

50

Gravely 08615100

WASHER, FLAT .88 X 1.25 X .04

$

$

Not available

51

Gravely 08620400

RING, RETAINING

$

$

Not available

52

Gravely 08620500

SCREW, M6X10

$

$

Not available

53

Gravely 08615700

DISK, BRAKE

$

$

Not available

54

Gravely 08615800

NUT, HEX LOCK 5/16-24 W/NYLON

$

$

Not available

55

Gravely 08620700

BUSHING, SLEEVE 1.0X1.3X1.34

$

$

Not available

56

Gravely 08616400

SPACER, TRUNNION

$

$

Not available

57

Gravely 08616500

RING, RETAINING

$3.99

$

Usually ships in 4-12 days

0

58

Gravely 08617000

PINT STANDARD HEADLESS
(Superseded to 21543992)

$

$

Not available

59

Gravely 08621000

KIT, HUB ASSEMBLY

$

$

Not available

60

Gravely 08621100

NUT, HEX, LOCK 3/4-16

$7.99

$

Usually ships in 4-12 days

0

61

Gravely 08617400

PUCK BRAKE

$

$

Not available

62

Gravely 08621200

BOLT, HEX HD 1/4-20 X1 W/PATCH

$

$

Not available

63

Gravely 08617800

ASSEMBLY, BRAKE YOKE

$

$

Not available

64

Gravely 08618600

ARM. BRAKE

$

$

Not available

65

Gravely 08618700

PIN BRAKE ACTUATING

$

$

Not available

66

Gravely 08611300

NUT

$

$

Not available

67

Gravely 08615300

PIN, COTTER 3/32 X 3/4

$

$

Not available

68

Gravely 08615500

SPACER, 26 X .57 X .87

$

$

Not available

69

Gravely 08618900

PLATE, PUCK

$

$

Not available

70

Gravely 08619000

BOLT HEX HD 1/4-20; X2 W/PATCH

$

$

Not available

71

Gravely 08619100

SPRING, BRAKE ARM BIAS

$

$

Not available

72

Gravely 08619500

O-RING, 2.987 X 3.09

$

$

Not available

73

Gravely 08615900

SPRING, CAMP. BRAKE ANTI-DRAG

$

$

Not available

74

Gravely 08613700

PLUG, STEEL (WITH SEAL)

Note: (with Seal)

$14.99

$

Usually ships in 4-12 days

0

75

Gravely 08617300

CAM. STATIONARY

$

$

Not available

76

Gravely 08617200

CAM. ROTATING

$

$

Not available

77

Gravely 08619800

WASHER, THRUST 2.78X3.60X.036

$

$

Not available

78

Gravely 08617700

PLATE, LOAD

$

$

Not available

79

Gravely 08621600

GROMMET

$

$

Not available

80

Gravely 08621700

PLATE, GUIDE

$

$

Not available

81

Gravely 08622100

CAM. DIFF LOCK ACTUATING

$

$

Not available

82

Gravely 08622200

SHAFT. DIFF LOCK ACTUATING

$

$

Not available

83

Gravely 08619300

SLEEVE, DIFF LOCK ACTUATING

$29.99

$

Usually ships in 4-12 days

0

84

Gravely 08622400

ARM. DIFF LOCK ACTUATING

$

$

Not available

85

Gravely 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 12

0

86

Gravely 08622700

O-RING. .364 X .504

$

$

Not available

87

Gravely 08622800

SPRING, TENSION

$

$

Not available

88

Gravely 08623000

KIT. FILTER ASSEMBLY

$

$

Not available

89

Gravely 08606700

STUD, WHEEL MA14 X 1,5X50

$

$

Not available

90

Gravely 08623100

KIT. SEAL & O-RING

$

$

Not available
