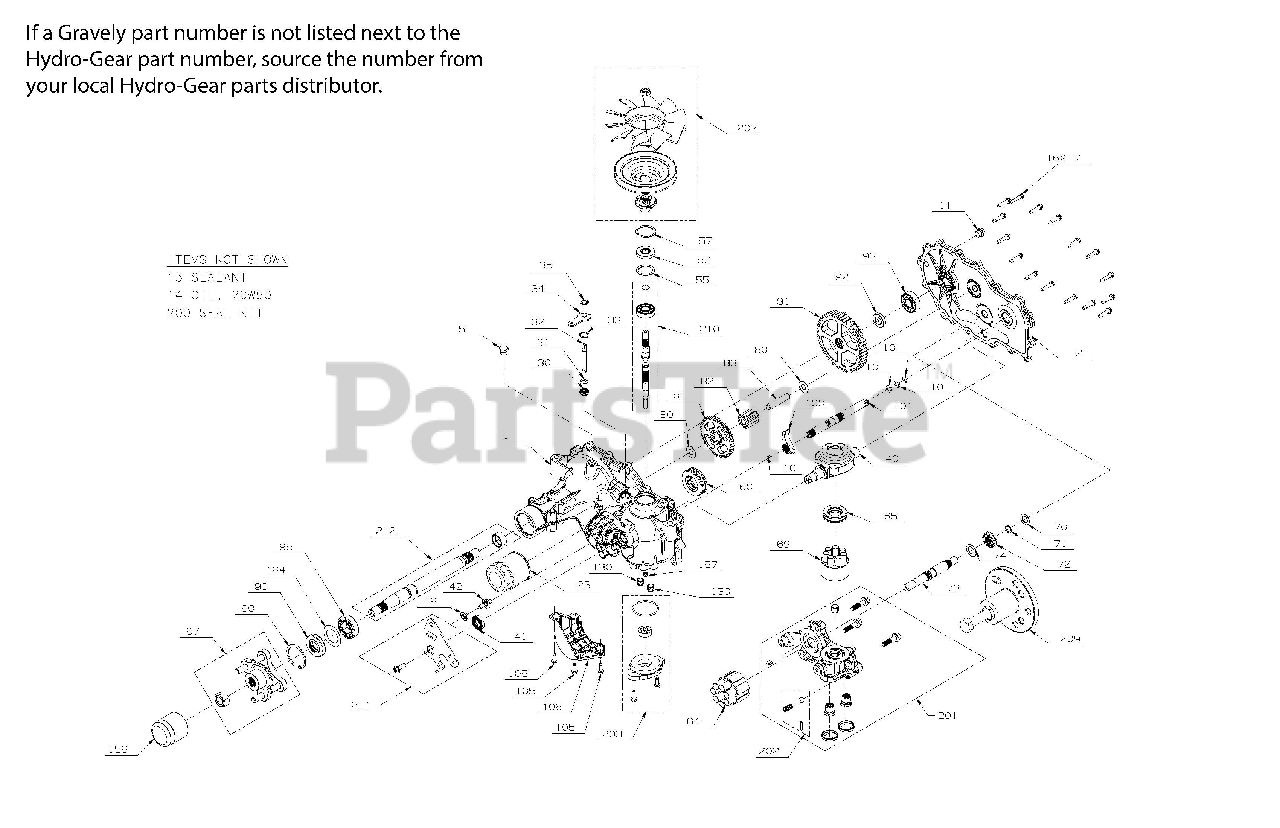

985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Transmission, RH - 09120100 Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

Transmission, RH - 09120100 Parts Diagram

  • Title

1

KIT, MAIN HOUSING RH, CHARGE, CONTROL

Note: Hydro-Gear p/n 71419

$

$

Not available

2

KIT, COVER SIDE RH

Note: Hydro-Gear p/n 91576

$

$

Not available

5

PLUG, EXTERNAL HEX VENT 9/16-18

Note: Hydro-Gear p/n 54730

$

$

Not available

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: Hydro-Gear p/n 53246

$2.99

$

In Stock, only 1 left!

0

10

0-RING -111, .424 X .103

Note: Hydro-Gear p/n 51804

$

$

Not available

11

PLUG, EXTERNAL HEX VENT 9/16-18

Note: Hydro-Gear p/n 54730

$

$

Not available

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$103.99

$

Usually ships in 4-12 days

0

14

OIL, 20W50

$

$

Not available

23

Gravely 21545100

OIL FILTER, TRANSMISSION

Note: Hydro-Gear p/n 52114

$42.99

$

Usually ships in 4-12 days

0

30

Gravely 21543845

SEAL, LIP .375X.75X.25

Note: Hydro-Gear p/n 51626

$9.99

$

Usually ships in 4-12 days

0

31

RING, RETAINING EXTERNAL .375

Note: Hydro-Gear p/n 51528

$

$

Not available

32

ROD, BYPASS .375 x 2.88

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Gravely 21543847

ARM, BYPASS

Note: Hydro-Gear p/n 51629

$

$

Not available

35

Gravely 21543848

RING, RTNG .

Note: Hydro-Gear p/n 51630

$4.49

$

Usually ships in 4-12 days

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

Note: Hydro-Gear p/n 51140

$5.49

$

Usually ships in 4-12 days

0

42

Gravely 08611000

STUD. SHORT 5/16-24

Note: Hydro-Gear p/n 50426

$

$

Not available

48

SPACER

Note: Hydro-Gear p/n 51846

$

$

Not available

55

Gravely 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$2.99

$

In Stock, only 1 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n 51161

$7.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$3.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

Note: Hydro-Gear p/n 51462

$27.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

Note: Hydro-Gear p/n 71579

$103.99

$

In Stock, only 2 left!

0

65

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$16.99

$

Usually ships in 4-12 days

0

69

Gravely 21543921

ASSY, BLOCK 7 PISTON

Note: Hydro-Gear p/n 70723

$137.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear p/n 44371

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$2.99

$

Usually ships in 4-12 days

0

72

GEAR, 14T

Note: Hydro-Gear p/n 52109

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear p/n 50132

$

$

Not available

81

GEAR, 45T

Note: Hydro-Gear p/n 52110

$

$

Not available

82

GEAR, 11T

Note: Hydro-Gear p/n 52583

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Gravely 08616500

RING, RETAINING

Note: Hydro-Gear p/n 50859

$3.99

$

Usually ships in 4-12 days

0

91

GEAR, 54T

Note: Hydro-Gear p/n 52108

$

$

Not available

92

SPACER, .750 X 1.320 X .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

KIT, BEARING

Note: Hydro-Gear p/n 72749

$

$

Not available

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

Note: Hydro-Gear p/n 53656

$25.99

$

In Stock, only 1 left!

0

96

Gravely 08614300

SEAL, LIP

Note: Hydro-Gear p/n 53699

$7.99

$

In Stock, only 4 left!

0

97

Gravely 21544061

KIT, HUB 4 BOLT

Note: Hydro-Gear p/n 71446

$71.99

$

Usually ships in 4-12 days

0

100

PAWL, BRAKE

Note: Hydro-Gear p/n 52766

$

$

Not available

101

KIT, BRAKE SHAFT

Note: Hydro-Gear p/n 72046

$

$

Not available

105

Gravely 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$2.99

$

Usually ships in 4-12 days

0

106

Gravely 21544054

GUARD, FILTER, RH

Note: Hydro-Gear p/n 53655

$15.99

$

Usually ships in 4-12 days

0

130

TUBE, CHARGE TRIPLE O-RING

Note: Hydro-Gear p/n 54501

$

$

Not available

157

KIT, GEROTOR SEAL

Note: Hydro-Gear p/n 72291

$

$

Not available

158

CAP, AXLE

Note: Hydro-Gear p/n 53501

$

$

Not available

164

WASHER, 1.355 x 2.035 x .021 FLAT

Note: Hydro-Gear p/n 53514

$

$

Not available

200

Gravely 21543999

KIT, SEAL

Note: Hydro-Gear p/n 71410

$54.99

$

Usually ships in 4-12 days

0

201

KIT, CENTERSECTION, RH, CHARGE

Note: Hydro-Gear p/n 72743

$

$

Not available

202

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436

$

$

Not available

203

Gravely 21544060

KIT, CHARGE

Note: Hydro-Gear p/n 72274

$77.99

$

In Stock, only 2 left!

0

207

KIT, FAN/PULLEY

Note: Hydro-Gear p/n 72700

$

$

Not available

209

Gravely 21544009

HUB PULLER 4 BLT HYDGEAR 71459
(Superseded to 21544008)

Note: Hydro-Gear p/n 72320

$497.99

$

Usually ships in 4-12 days

0

210

Gravely 21544010

INPUT SHAFT 2800 HYDGEAR 71442
(Superseded to 21544039)

Note: Hydro-Gear p/n 71442

$

$

Not available

211

KIT, ARM, CONTROL

Note: Hydro-Gear p/n 71634

$

$

Not available

212

KIT, SHAFT AXLE

Note: Hydro-Gear p/n 71569

$

$

Not available
