988115 (GR 1548 FXP) - Gravely Pro-Gear 48" Walk-Behind Mower, Pro-Steer, 15hp Kawasaki (SN: 003000 & Above) Engine, Fuel And Exhaust System Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Pro-Steer, 15hp Kawasaki

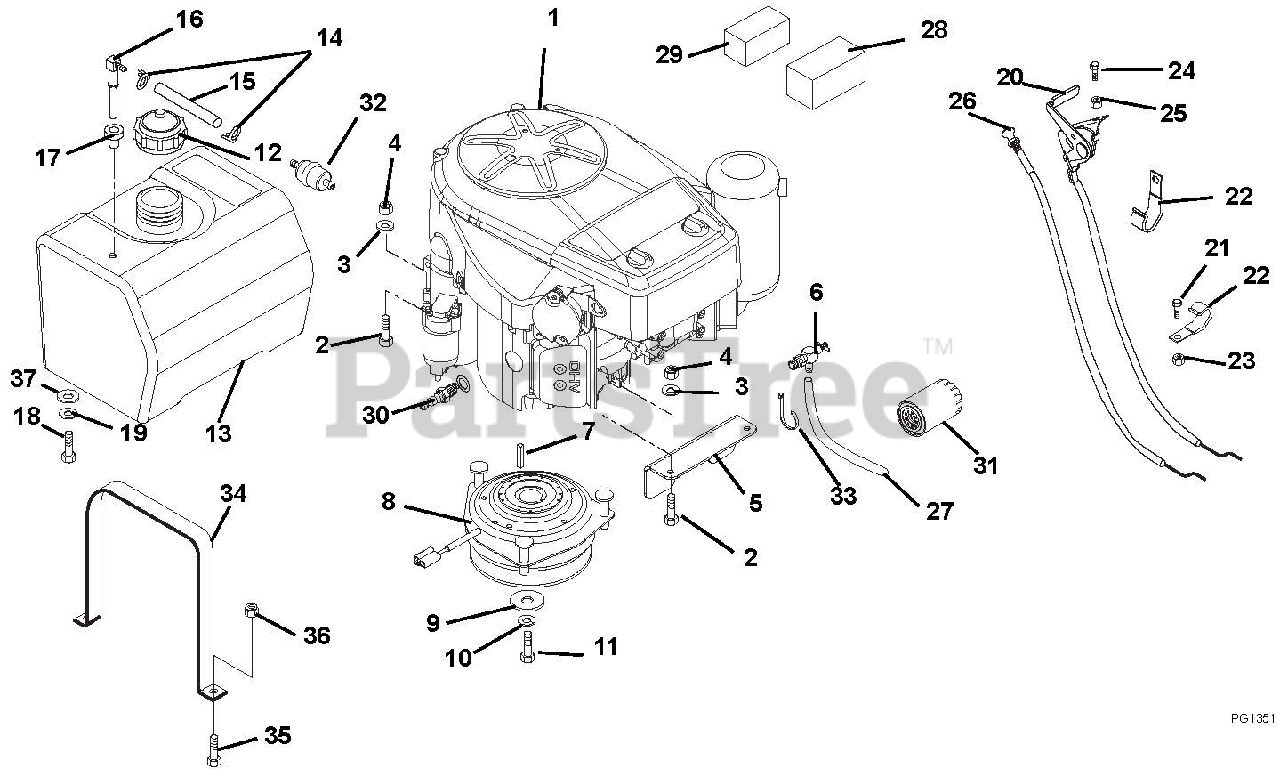

Engine, Fuel And Exhaust System Parts Diagram

  • Title

1

Gravely 08266800

ENGINE, 15 HP KAWASAKI

Note: (988102, 115)

$

$

Not available

2

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.99

$

In Stock, Qty 9

0

3

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.99

$

In Stock, Qty 7

0

5

Gravely 04923551

BRACKET, CLUTCH
(Superseded to 03292451)

$33.99

$

Usually ships in 4-12 days

0

6

Gravely 04923600

VALVE, OIL DRAIN

$55.99

$

Usually ships in 4-12 days

0

7

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

Note: (988100, 102, 114, 115)

$4.99

$

In Stock, Qty 11

0

8

Gravely 04915400

CLUTCH, ELECTRIC

$496.99

$

In Stock, only 1 left!

0

9

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$8.49

$

In Stock, Qty 20+

0

10

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$3.49

$

In Stock, Qty 19

0

11

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

Note: (988100, 102, 114, 115)

$7.99

$

In Stock, Qty 11

0

12

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

Note: (988100, 102, 114, 115)

$30.99

$

In Stock, Qty 13

0

13

Gravely 04914000

TANK, FUEL

Note: (988100, 102, 114, 115)

$

$

Not available

14

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$4.99

$

In Stock, Qty 20+

0

15

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

16

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

17

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: (Black in color. Does not replace or interchange with orange colored grommet.)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 00387300

GROMMET, DAPCO VITON #12240

Note: (Orange in color. Does not replace or interchange with black colored bushing.)

$10.99

$

In Stock, Qty 20+

0

18

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (988100, 102, 114, 115)

$2.49

$

In Stock, Qty 11

0

19

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06949100

CABLE - THROTTLE W/LINER

Note: (988114, 115, 122)

$86.99

$

In Stock, only 2 left!

0

21

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06916000

J-CLAMP

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

24

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.99

$

In Stock, only 4 left!

0

25

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06924800

CONTROL,CHOKE

$

$

Not available

27

Gravely 01590900

TUBE, OIL DRAIN 8" CLEAR VINYL

$6.99

$

Usually ships in 4-12 days

0

28

Gravely 21538000

AIR FLTR,PAPER KAWASAKI

$18.99

$

In Stock, Qty 10

0

29

Gravely 21538100

AIR FLTR,FOAM KAW

$13.99

$

In Stock, Qty 6

0

30

Gravely 21533600

PLUG, SPARK

$8.49

$

In Stock, Qty 20+

0

31

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

32

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$17.99

$

Usually ships in 4-12 days

0

33

Gravely 07517300

CABLE TIE LG 5-1/2

$1.99

$

Usually ships in 4-12 days

0

34

Gravely 09112100

TANK STRAP FOR 4.5 G FUEL TANK

Note: (988121, 122)

$

$

Not available

35

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (988121, 122)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

Note: (988121, 122)

$5.99

$

In Stock, Qty 12

0

37

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0
