99-8522 - Toro Suspension Seat Kit for Z Master 100 and 200 Series Suspension Seat Assembly Parts Diagram

Suspension Seat Kit for Z Master 100 and 200 Series

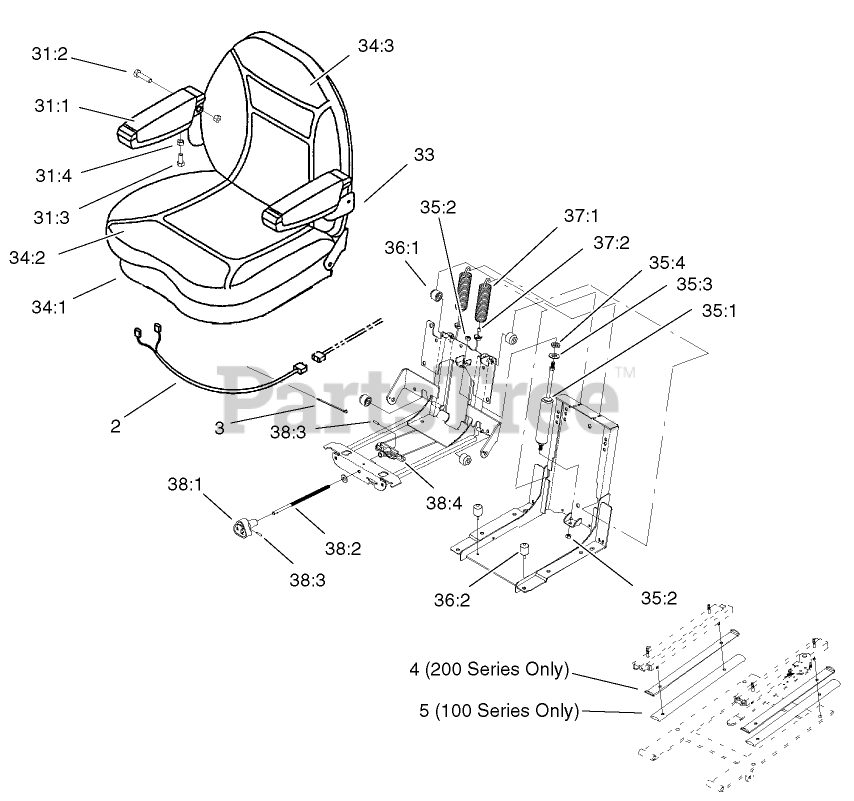

Suspension Seat Assembly Parts Diagram

  • Title

2

Toro 103-1227

HARNESS-WIRING, SEAT

$26.99

$

Usually ships in 3-6 days

0

3

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

4

Toro 1-633872-03

STOP-SEAT

$53.99

$

Usually ships in 3-6 days

0

5

Toro 1-653282-03

STOP/SPACER-SEAT

$60.99

$

Usually ships in 3-6 days

0

30

Toro 1-643281

SWITCH-SEAT

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

31

Toro 1-631842

ARMREST PAD KIT

$241.99

$

Usually ships in 3-6 days

0

31:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

31:2

Capscrew

Note: Not serviced separately

$

$

Not available

31:3

Capscrew

Note: Not serviced separately

$

$

Not available

31:4

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

32

Toro 1-631843

BOOT KIT

Note: Not illustrated

$

$

Not available

32:1

Boot

Note: Not illustrated

$

$

Not available

32:1

Boot

Note: Not serviced separately

$

$

Not available

32:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

32:2

HUB and BEARING ASM

Note: Not illustrated

$

$

Not available

32:3

HUB and BEARING ASM

Note: Not illustrated

$

$

Not available

32:3

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

32:4

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

32:4

HUB and BEARING ASM

Note: Not illustrated

$

$

Not available

33

Toro 1-631844

ARMREST KIT

$668.99

$

Usually ships in 3-6 days

0

33:1

Capscrew

Note: Not serviced separately

$

$

Not available

33:1

Capscrew

Note: Not illustrated

$

$

Not available

33:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

33:3

Washer

Note: Not serviced separately

$

$

Not available

33:3

Washer

Note: Not illustrated

$

$

Not available

34

Toro 1-631845

SEAT PAN ASM

$

$

Not available

34:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

34:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

34:3

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

34:4

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

34:4

HUB and BEARING ASM

Note: Not illustrated

$

$

Not available

34:5

HUB and BEARING ASM

Note: Not illustrated

$

$

Not available

34:5

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

34:6

Staple

Note: Not serviced separately

$

$

Not available

34:6

Staple

Note: Not illustrated

$

$

Not available

35

Toro 1-631846

DISCONTINUED

$

$

Not available

35:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

35:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

35:3

Washer

Note: Not serviced separately

$

$

Not available

36

Toro 1-631847

ROLLER KIT

$

$

Not available

36:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

36:2

Bumper

Note: Not serviced separately

$

$

Not available

37

Toro 1-631848

SPRING AND CABLE KIT

$168.99

$

Usually ships in 3-6 days

0

37:1

Toro 2

HUB AND ZERK ASM

Note: Not serviced separately

$

$

Currently unavailable

37:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

38

Toro 1-631849

KNOB AND SHAFT KIT

$

$

Not available

38:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

38:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

38:3

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

38:4

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available
