990024 (PM 320) - Gravely Pro-Master Zero-Turn Mower (SN: 000101 & Above) Front Wheels, Motors and calipers Parts Diagram

Pro-Master Zero-Turn Mower

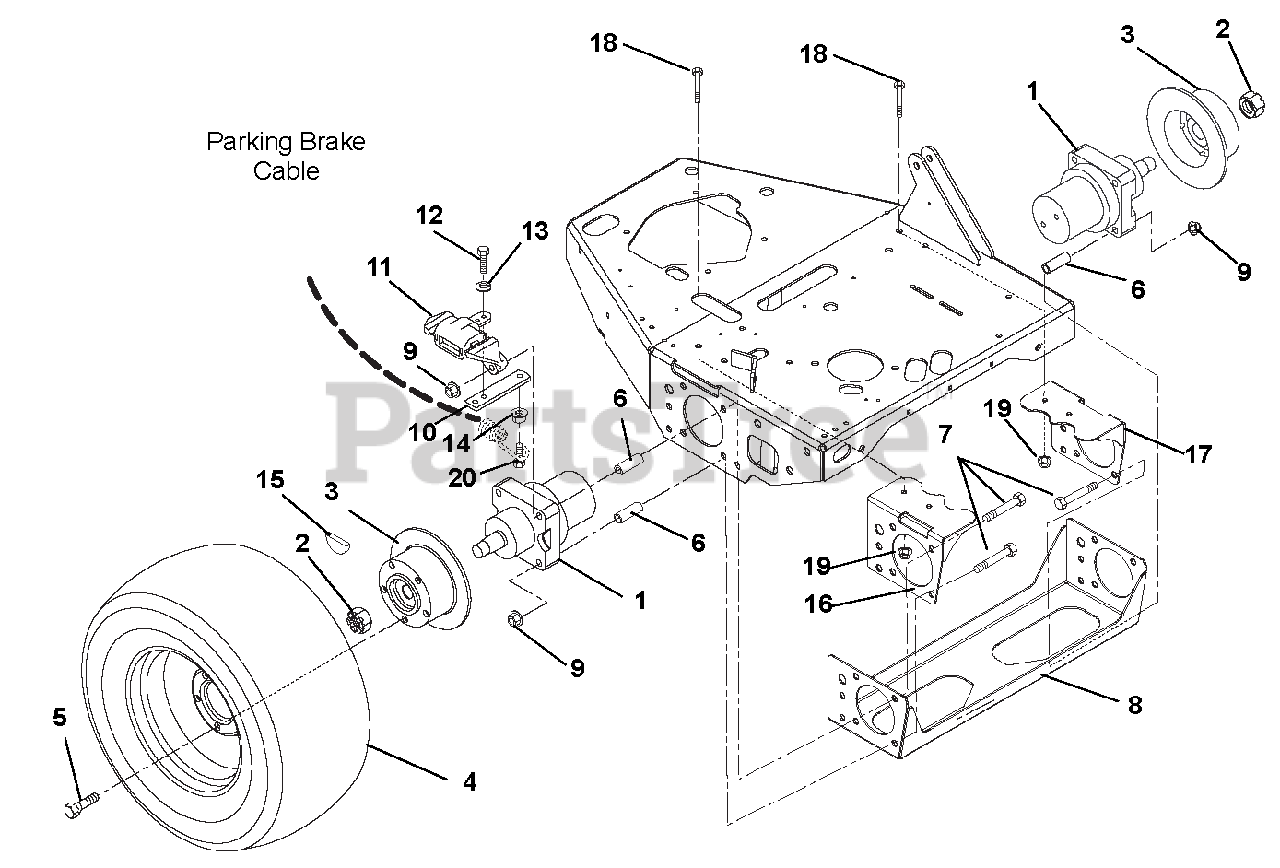

Front Wheels, Motors and calipers Parts Diagram

  • Title

1

Gravely 00668900

MOTOR, WHEEL HGM 15E (CW)

Note: (see page 8)

$

$

Not available

2

Gravely 06541900

NUT-LK-JAM-PTCH 1.00-20

$33.99

$

Usually ships in 4-12 days

0

3

Gravely 09247100

HUB & DISK (PARK) 8" 1/2 HOLE

$303.99

$

Usually ships in 4-12 days

0

4

Gravely 07100207

TIRE/WHEEL ASSY, 24X11.50-12
(Superseded to 07101040)

$300.99

$

Usually ships in 4-12 days

0

Gravely 07100208

TIRE, 24X11.50-12
(Superseded to 07101041)

$202.99

$

Usually ships in 4-12 days

0

5

Gravely 07000143

BLT-LUG .50-20X1.38 YWZC

$3.99

$

In Stock, Qty 20+

0

6

Gravely 05531400

BSHG-SLV .513X.748X2.129

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 05975400

BLT-HEX .50-13X5.00 GR8 YWZC

$9.49

$

In Stock, Qty 6

0

8

Gravely 03929051

WMT-WHEEL SUPPORT BRACKET

$174.99

$

Usually ships in 4-12 days

0

9

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 03927900

ARM-PARKING BRAKE EXTENSION

$

$

Not available

11

Gravely 09243600

CALIPER PARK BRAKE (CW) RH 2"

Note: (Clockwise) RH

$197.99

$

Usually ships in 4-12 days

0

11

Gravely 09243500

CALIPER,PARK BRAKE (CCW) LH 2"

Note: (Counterclockwise) LH

$197.99

$

Usually ships in 4-12 days

0

12

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 09200600

PAD SET, DISK BRAKE

$60.99

$

In Stock, only 4 left!

0

16

Gravely 03927151

WMT-MAIN FRAME BRACE-RH

$

$

Not available

17

Gravely 03927851

WMT-MAIN FRAMEBRACE-LH

$74.99

$

Usually ships in 4-12 days

0

18

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

19

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0
