991036 (PM 48Z) - Gravely Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000200 & Above) Transmission Parts Diagram

Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki

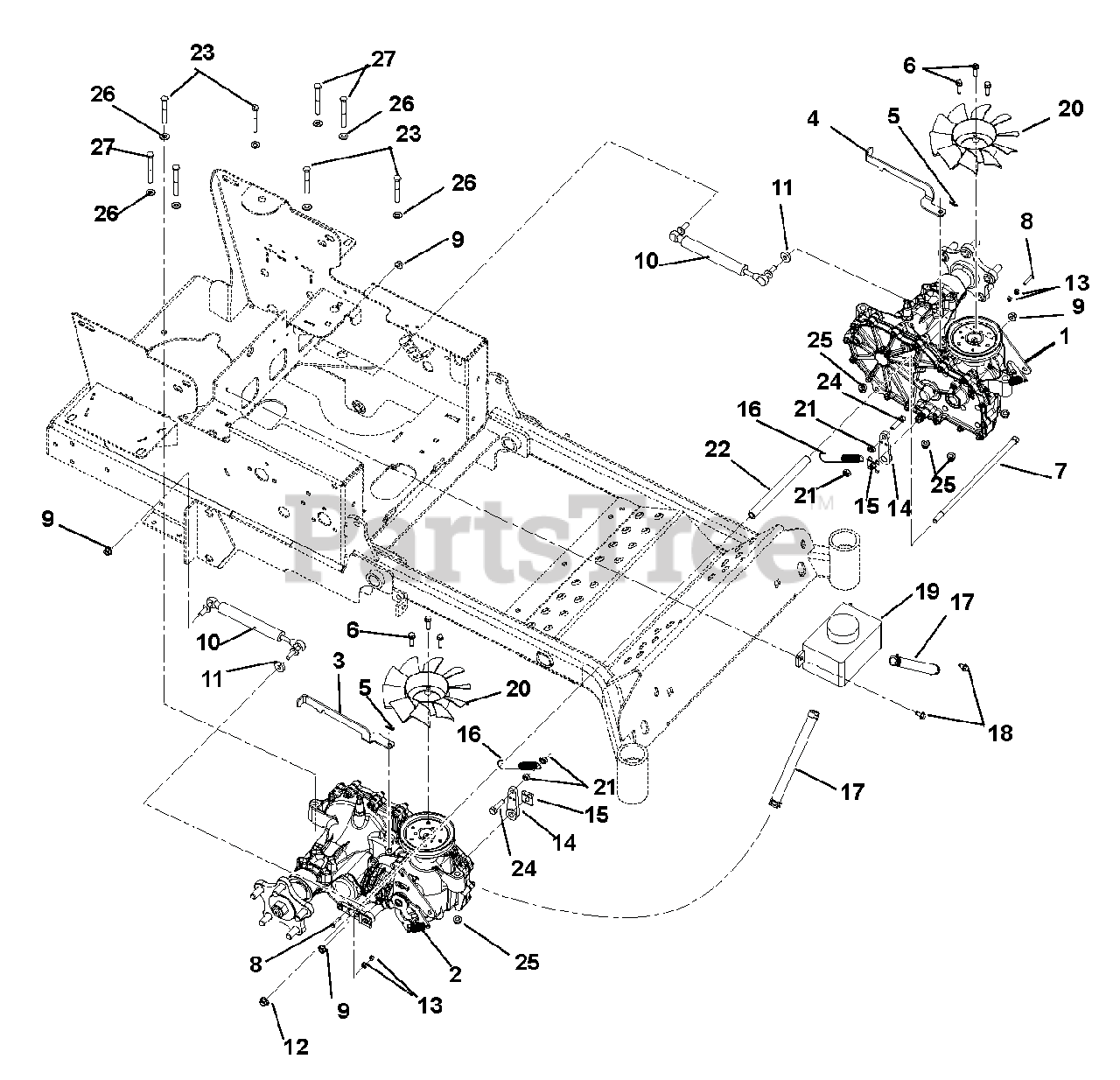

Transmission Parts Diagram

  • Title

1

Gravely 03283700

TRANSAXLE, 3100 SERIES - LH
(Superseded to 04827700)

$1615.99

$

Usually ships in 4-12 days

0

2

Gravely 03283600

TRANSAXLE, 3100 SERIES - RH
(Superseded to 04827800)

$1624.99

$

Usually ships in 4-12 days

0

3

Gravely 03282851

RH DUMP VALVE LEVER - BLACK

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 03282951

LH DUMP VALVE LEVER - BLACK

$34.99

$

Usually ships in 4-12 days

0

5

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

6

Gravely 07412400

SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 05901315

BLT HEX, .38-16X11.00 GR5 YWZC
(Superseded to 05901921)

$8.49

$

In Stock, only 4 left!

0

8

Gravely 06117800

SCR-MCH 8-32X1.00 HWH YWZC

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 06500623

NUT, M8-1.25 WHIZ LOCK YWZC
(Superseded to T803-220C)

$

$

Not available

10

Gravely 00188700

DAMPER

$100.99

$

In Stock, only 1 left!

0

11

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 19

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06531300

NUT-LK-NYL 8-32 W/INSTR YWZC

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 02996500

ARM, BRAKE

$8.99

$

Usually ships in 4-12 days

0

15

Gravely 02996600

CLIP, BRAKE ARM

$6.99

$

Usually ships in 4-12 days

0

16

Gravely 08300436

SPRING, TENSION .056X.60X4.60

Note: (SN -000200 and up)

$37.99

$

In Stock, only 1 left!

0

17

Gravely 03251900

ASM, HYDRO OVERFLOW TANK HOSE

$18.99

$

In Stock, only 4 left!

0

18

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 02958700

TANK, EXPANSION

$28.99

$

In Stock, Qty 7

0

20

Gravely 03283500

FAN, 2800 SERIES COOLING

$20.99

$

In Stock, Qty 7

0

21

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 03367200

SPCR,.406 ID X .630 OD X 7.724

$15.99

$

In Stock, only 4 left!

0

23

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 18

0

24

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 12

0

25

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 05962500

BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, Qty 20+

0
