991084 (ZT 60 HD) - Gravely 60" Zero-Turn Mower, Kawasaki (SN: 000101 - 009999) Belt Spindles, Idlers and Mower Blades 52", 60" Parts Diagram

60" Zero-Turn Mower, Kawasaki

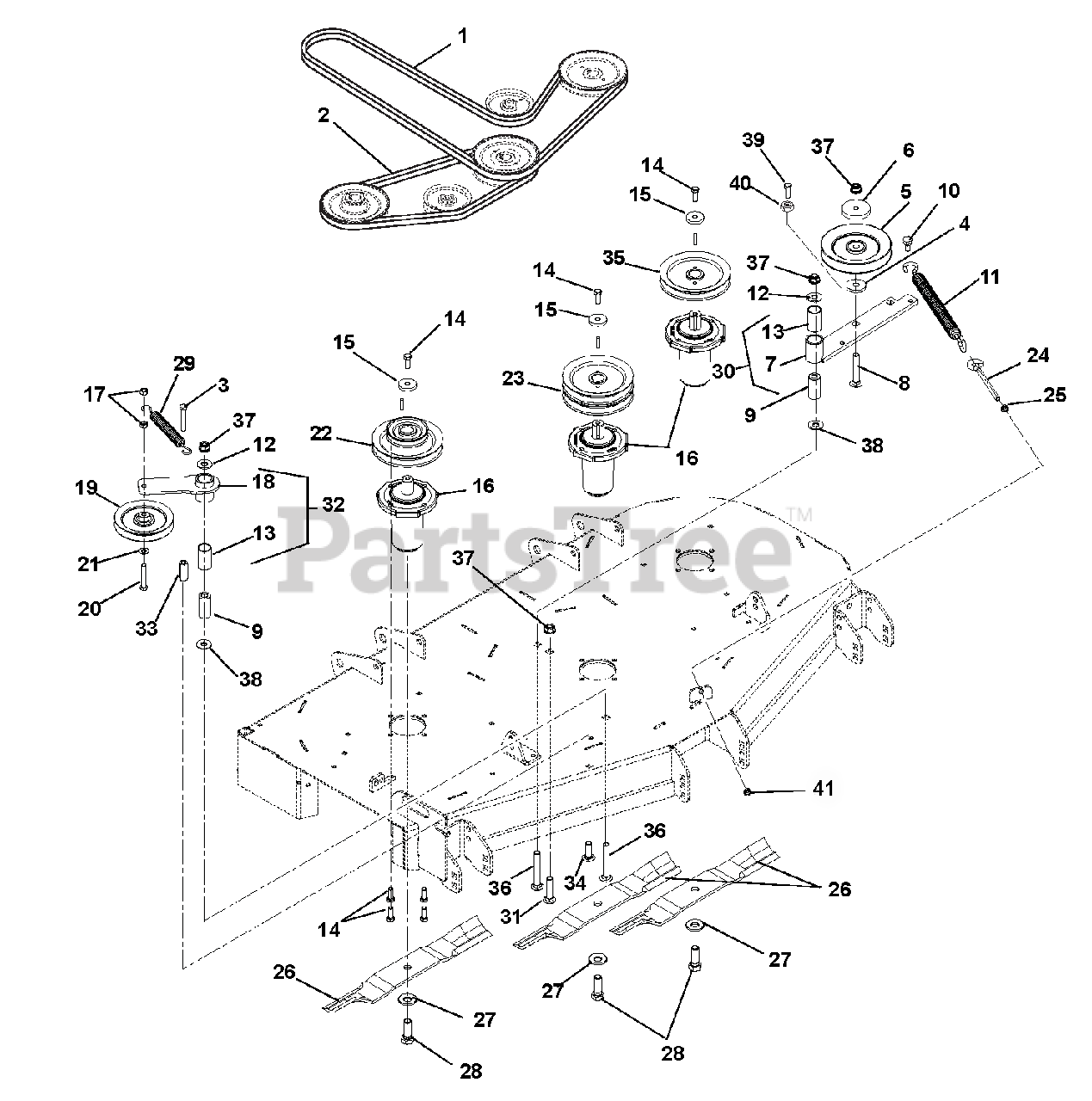

Belt Spindles, Idlers and Mower Blades 52", 60" Parts Diagram

  • Title

?1

Gravely 07200028

HEX BELT, BB-WRAPPED

Note: (991084)

$140.99

$

In Stock, Qty 18

0

Gravely 07200026

HEX BELT, BB-WRAPPED

Note: (991083)

$140.99

$

In Stock, Qty 15

0

2

Gravely 07200038

V-BELT, B-COGGED

Note: (991084)

$71.99

$

In Stock, Qty 20+

0

Gravely 07200036

V-BELT, B-COGGED

Note: (991083)

$66.99

$

In Stock, Qty 17

0

3

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 13

0

4

Gravely 05500905

BSHG, SPCR .502X.997X.50 PM

$12.99

$

In Stock, Qty 17

0

5

Gravely 07300527

SHV, .50"ID X 6.00"OD V-IDLER

$56.99

$

In Stock, Qty 20+

0

6

Gravely 00450100

CAP, IDLER BEARING SEALING

$15.99

$

In Stock, Qty 7

0

7

Gravely 03774251

WMT, IDLER ARM

$72.99

$

In Stock, Qty 5

0

8

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5YZ

$6.99

$

In Stock, Qty 20+

0

9

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$7.49

$

In Stock, Qty 20+

0

10

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$4.99

$

In Stock, Qty 18

0

11

Gravely 08300505

SPRING, EXTENSION

Note: (Deck Idler)

$28.99

$

In Stock, Qty 20+

0

12

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$5.49

$

In Stock, Qty 20+

0

16

Gravely 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

17

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 03774100

WMT, IDLER ARM
(Superseded to 03774151)

$62.99

$

In Stock, Qty 8

0

19

Gravely 07300526

SHV, .38"ID X 5.00"OD V-IDLER
(Superseded to 07351800)

$33.99

$

In Stock, Qty 20+

0

20

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$5.49

$

In Stock, Qty 20+

0

21

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 07329167

PULLEY, DBL-1"IDX6.75"&4.25"OD

Note: (991084)

$91.99

$

In Stock, Qty 15

0

Gravely 07332267

PULLEY, DOUBLE-1"IDX3.50"&6.0

Note: (991083)

$85.99

$

In Stock, only 4 left!

0

23

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

Note: (991084)

$97.99

$

In Stock, Qty 20+

0

Gravely 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

Note: (991083)

$84.99

$

In Stock, Qty 13

0

24

Gravely 07000030

BOLT, .38-16X4.50 .62 DIA EYE
(Superseded to 07001604)

$7.99

$

In Stock, Qty 20+

0

25

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 03253900

BLADE, 20.5"

Note: (991084)

$33.99

$

In Stock, Qty 20+

0

Gravely 03253800

BLADE, 18"

Note: (991083)

$29.99

$

In Stock, Qty 20+

0

27

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

28

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$4.99

$

In Stock, Qty 20+

0

29

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$29.99

$

In Stock, Qty 20+

0

30

Gravely 03796300

ASM, IDLER PIVOT ARM (PTO)
(Superseded to 59218300)

Note: (Includes item 7 and item 13)

$85.99

$

In Stock, only 2 left!

0

31

Gravely 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$6.49

$

In Stock, only 3 left!

0

32

Gravely 03796400

ASM, IDLER ARM (DECK)

Note: (Includes item 13 and item 18)

$67.99

$

In Stock, Qty 10

0

33

Gravely 06533500

NUT COUPLING .375-16X1.75

$4.99

$

In Stock, Qty 8

0

34

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

Note: (991084)

$88.99

$

In Stock, Qty 20+

0

Gravely 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

Note: (991083)

$87.99

$

In Stock, Qty 10

0

36

Gravely 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.99

$

In Stock, Qty 20+

0

37

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

38

Gravely 06400829

WSHR-FLT .640X1.75X.250

$5.49

$

In Stock, Qty 20+

0

39

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$5.49

$

In Stock, Qty 20+

0

40

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.99

$

In Stock, Qty 20+

0
