991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 045000 - 049999) Transaxle Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

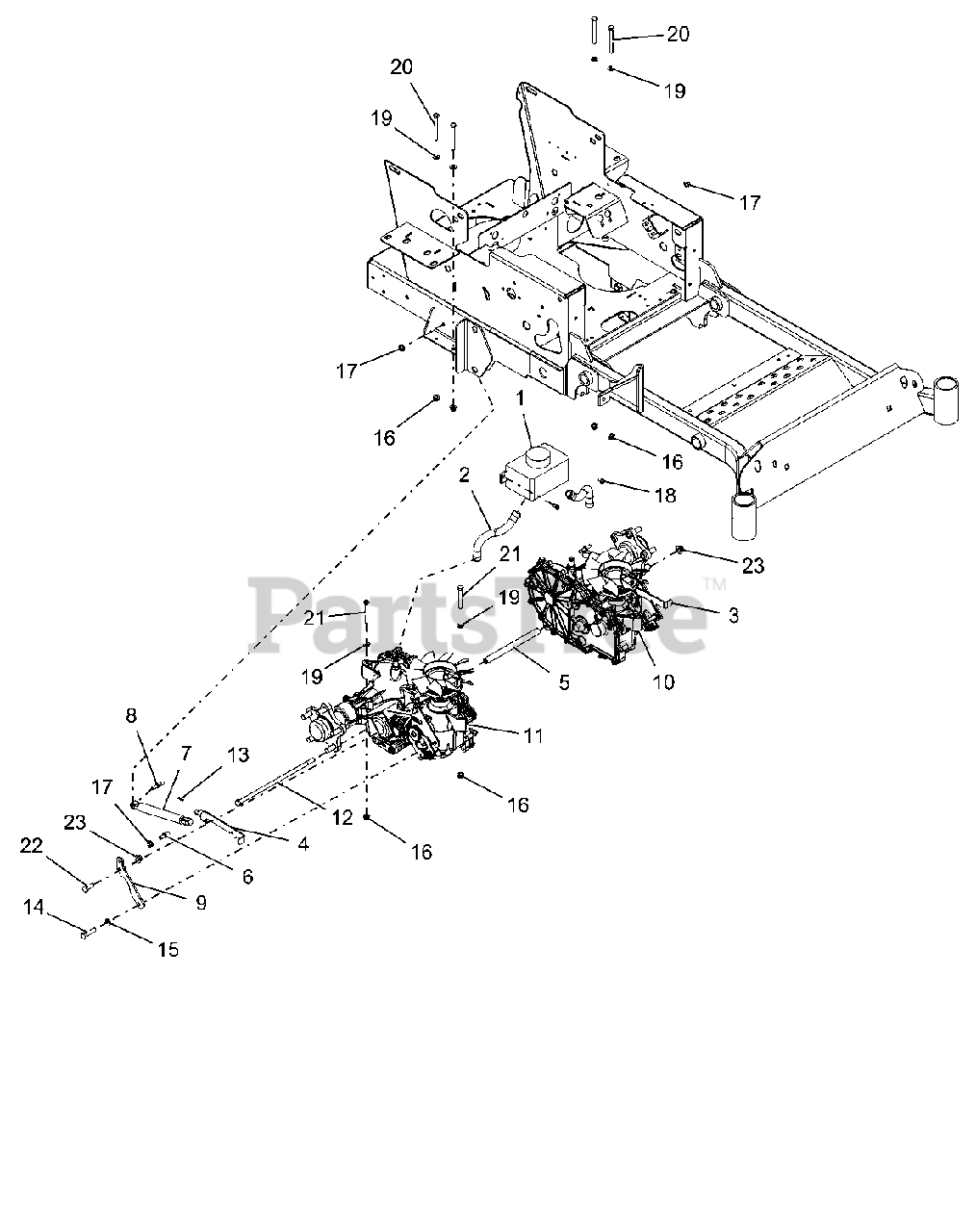

Transaxle Parts Diagram

  • Title

1

Ariens 02958700

TANK, EXPANSION

$28.99

$

In Stock, Qty 7

0

2

Ariens 03251900

ASM, HYDRO OVERFLOW TANK HOSE

$18.99

$

In Stock, only 4 left!

0

3

Ariens 03282851

RH DUMP VALVE LEVER - BLACK

$34.99

$

Usually ships in 4-12 days

0

4

Ariens 03282951

LH DUMP VALVE LEVER - BLACK

$34.99

$

Usually ships in 4-12 days

0

5

Ariens 03367200

SPCR,.406 ID X .630 OD X 7.724

$15.99

$

In Stock, only 4 left!

0

6

Ariens 03652200

STUD- BALL

$3.99

$

In Stock, Qty 7

0

7

Ariens 03769800

DAMPER
(Superseded to 09689700)

$66.99

$

In Stock, Qty 5

0

8

Ariens 04097100

STUD-BALL-THREADED

$2.99

$

In Stock, Qty 13

0

9

Ariens 04244751

TRANSMISSION DAMPER MTG PLT-BL

$10.99

$

Usually ships in 4-12 days

0

10

Ariens 04827700

TRANSAXLE, ZT3100, LH

$1615.99

$

Usually ships in 4-12 days

0

11

Ariens 04827800

TRANSAXLE, ZT3100, RH

$1624.99

$

Usually ships in 4-12 days

0

12

Ariens 05901315

BLT HEX, .38-16X11.00 GR5 YWZC
(Superseded to 05901921)

$8.49

$

In Stock, only 4 left!

0

13

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

14

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 14

0

15

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 05962500

@BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 18

0

22

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0
