991088 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 - 019999) HydroGear_Hydrostatic Pump_RH Parts Diagram

Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki

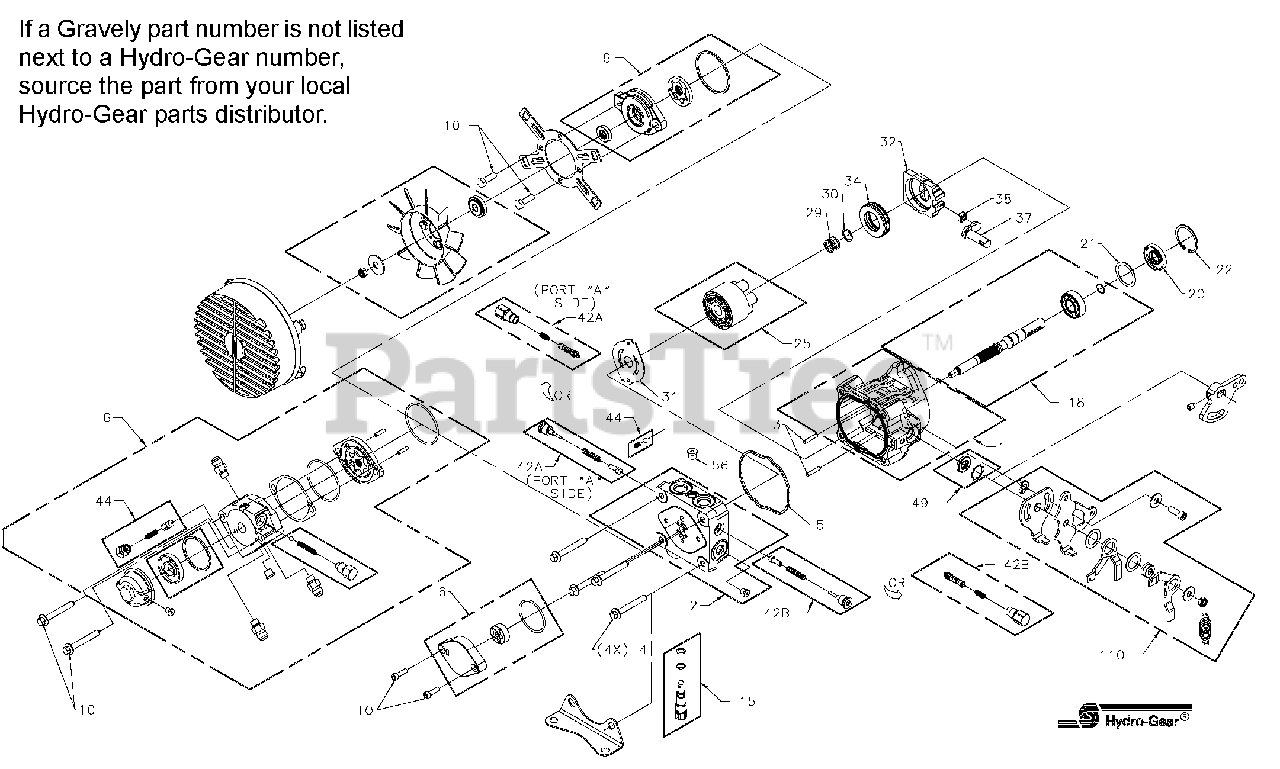

HydroGear_Hydrostatic Pump_RH Parts Diagram

  • Title

1

Gravely 21543929

KIT, HSG

Note: 70797

$

$

Not available

2

Gravely 21543913

KIT, ENDCAP STD CHG W/PPT

Note: 70623

$

$

Not available

3

Gravely 21543750

PIN, .219X1

Note: 50641

$

$

Not available

4

Gravely 21543775

HFHCS M8X60

Note: 50969

$

$

Not available

5

Housing O-Ring

Note: 52629

$

$

Not available

6

Gravely 21543912

KIT, CHG PUMP STD CHG, TH

Note: 70622

$244.99

$

Usually ships in 4-12 days

0

10

Gravely 21543994

HHCS 5/16-18X1

Note: 9007200-3116

$

$

Not available

15

Gravely 21543979

KIT, BYPASS VALVE

Note: 2513030

$28.99

$

Usually ships in 4-12 days

0

18

Gravely 21543911

KIT, PUMP SHAFT

Note: 70620

$205.99

$

Usually ships in 4-12 days

0

20

Gravely 21543816

SEAL, LIP 17X40X7

Note: 51161

$7.99

$

Usually ships in 4-12 days

0

21

Gravely 21543773

WASHER 1.23X1.56X.04

Note: 50951

$2.99

$

In Stock, only 1 left!

0

22

Gravely 21543741

RING, RET 1.56 INT

Note: 50329

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 21543889

KIT, 10 CC BLOCK

Note: 70331

$99.99

$

Usually ships in 4-12 days

0

29

Gravely 08621500

SPRING. BLOCK

Note: 2003014

$2.99

$

In Stock, Qty 5

0

30

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

Note: 2003017

$2.99

$

Usually ships in 4-12 days

0

31

Gravely 21543838

PLATE, VALVE

Note: 51444

$37.99

$

Usually ships in 4-12 days

0

32

Gravely 08609000

SWASHPLATE. VARIABLE

Note: 2003087

$

$

Not available

34

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

Note: 50551

$16.99

$

Usually ships in 4-12 days

0

37

Gravely 08610800

ARM. TRUNNION TAPERED SQUARE

Note: 50807

$56.99

$

Usually ships in 4-12 days

0

38

Gravely 08610700

GUIDE. SLOT

Note: 2000015

$

$

Not available

42

Gravely 21543923

KIT, SHOCK VALVE 200 BAR

Note: 70743

$

$

Not available

44

Gravely 21543891

KIT, CHG RELIEF

Note: 70403

$

$

Not available

49

Gravely 58803300

KIT, PUMP SEAL

Note: 2513043

$8.99

$

Usually ships in 4-12 days

0

56

Gravely 21543993

PLUG 7/16-20 (METAL)

Note: 9005110-4400

$

$

Not available

110

Gravely 21543934

RETURN KIT

Note: 70847

$63.99

$

Usually ships in 4-12 days

0

NS

Gravely 59203600

KIT, PUMP SEAL

Note: 70525

$79.99

$

Usually ships in 4-12 days

0
