991144 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Parking Brake Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki FX

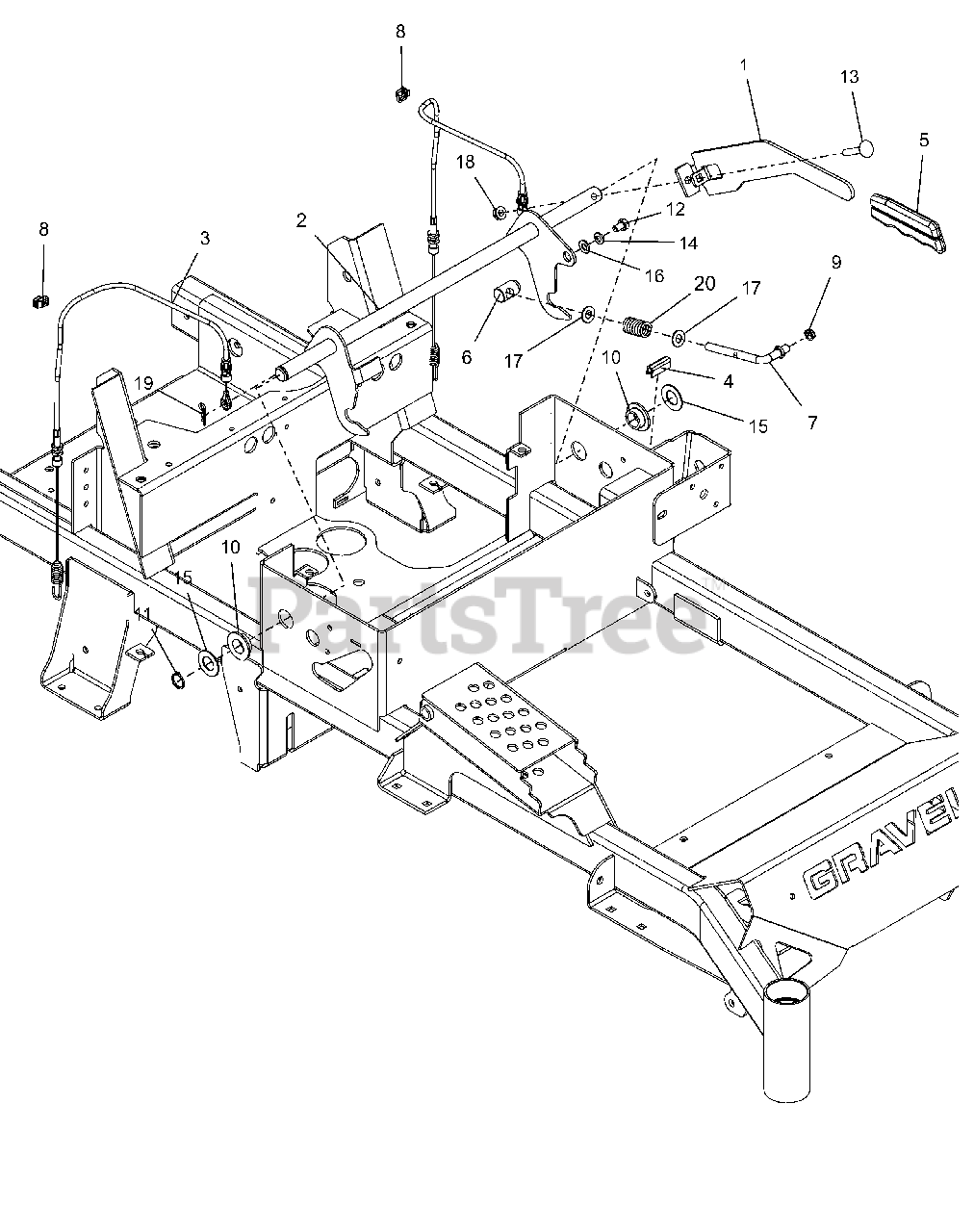

Parking Brake Parts Diagram

  • Title

1

Gravely 05070751

PT/PT100 BRAKE HANDLE - BLK

$23.99

$

In Stock, Qty 6

0

2

Gravely 05152300

WLDMT, COMPACT PRO BRAKE LEVER

$

$

Currently unavailable

3

Gravely 06900710

CABLE, BRAKE ACTUATING

$19.99

$

Usually ships in 4-12 days

0

4

Gravely 00918200

STRIP, COWL

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$4.99

$

In Stock, Qty 12

0

6

Gravely 05163800

TRUNNION, BRAKE

$56.99

$

Usually ships in 4-12 days

0

7

Gravely 05166900

LINK, OVER CENTER BRAKE

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 05179900

CLIP SOLAR

$

$

Not available

9

Gravely 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

10

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.99

$

In Stock, only 2 left!

0

11

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, only 2 left!

0

12

Gravely 05901904

BLT, HEX .31-18X.50 GR5 ZCC

$1.99

$

In Stock, Qty 5

0

13

Gravely 06200222

BLT,RHSSN-.312X1.75 G5 RIE5230

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06401016

WSHR, FLT .755X1.375X.062 ZCC

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06401129

WSHR-FL-STL 0.406X0.812X0.055 HRD

$1.49

$

In Stock, Qty 9

0

18

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$1.49

$

In Stock, Qty 6

0

20

Gravely 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, only 3 left!

0
