991160 (ZT HD 44) - Gravely 44" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 000943) Bumper And Fenders Parts Diagram

44" Zero-Turn Mower, Kawasaki FR

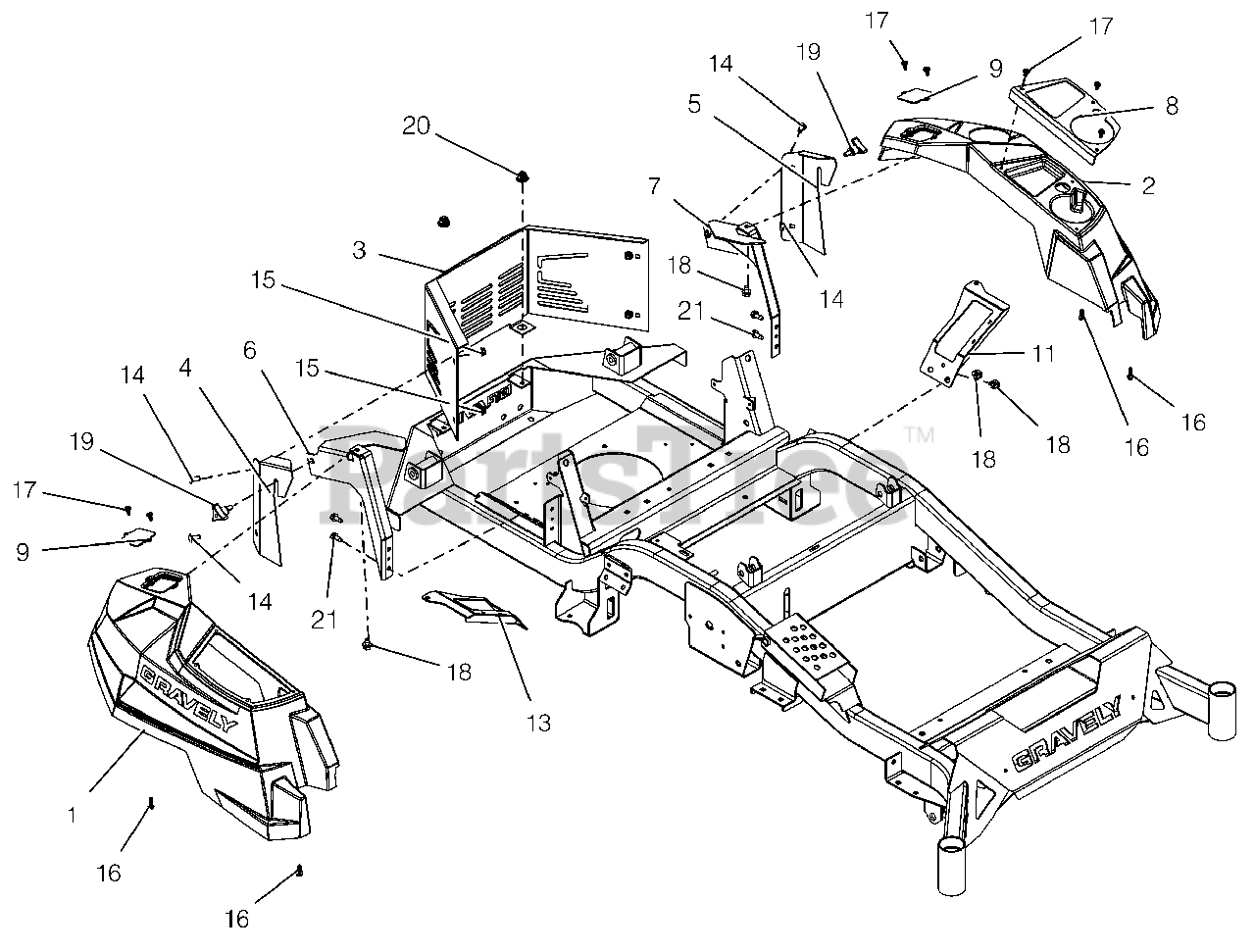

Bumper And Fenders Parts Diagram

  • Title

1

Gravely 05012500

FENDER, RH HD (2017)
(Superseded to 59112300)

$47.99

$

Usually ships in 4-12 days

0

2

Gravely 05012600

FENDER, LH HD (2017)
(Superseded to 59112200)

$86.99

$

Usually ships in 4-12 days

0

3

Gravely 05073151

GUARD, HD ENGINE

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 05073253

TRIM, HOOD STYLE (RIGHT)

$27.99

$

In Stock, only 1 left!

0

5

Gravely 05073353

TRIM, HOOD STYLE (LEFT)

$32.99

$

Usually ships in 4-12 days

0

6

Gravely 05074253

BRKT, RH FENDER MTG

$39.99

$

Usually ships in 4-12 days

0

7

Gravely 05074353

BRKT, LH FENDER MTG

$88.99

$

Usually ships in 4-12 days

0

8

Gravely 05077853

PANEL, HD

$41.99

$

Usually ships in 4-12 days

0

9

Gravely 05078051

PLATE, ROPS HOLE-HD

$24.99

$

Usually ships in 4-12 days

0

11

Gravely 05095151

WLDMT, LH FENDER MOUNT

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 05105151

WLDMT, RH FENDER MOUNT

$24.99

$

Usually ships in 4-12 days

0

14

Gravely 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06100213

SCR-PLASTITE .25-10X.75, YWZC
(Superseded to 06100231)

$2.49

$

In Stock, Qty 8

0

17

Gravely 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$3.49

$

In Stock, Qty 6

0

18

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$7.49

$

In Stock, Qty 20+

0

20

Gravely 07500407

GROMMET, 10MM BOLLHOFF

$6.99

$

In Stock, Qty 20+

0

21

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$2.49

$

In Stock, Qty 12

0
