991246 (ZT HD 60) - Gravely 60" Zero-Turn Mower, Kawasaki FR (SN: 002000 & Above) Rear Tires and Transaxles - 60" Parts Diagram

60" Zero-Turn Mower, Kawasaki FR

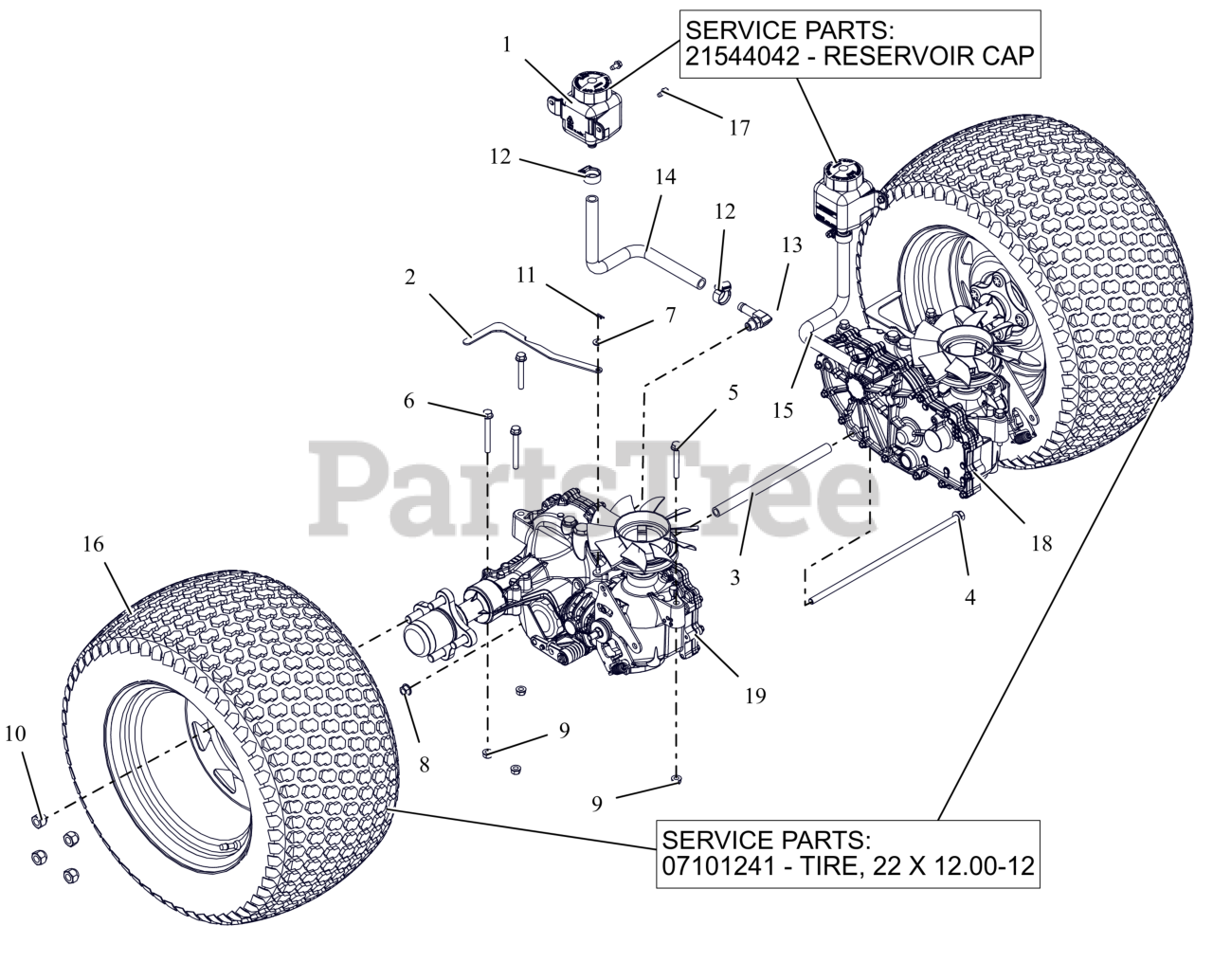

Rear Tires and Transaxles - 60" Parts Diagram

  • Title

1

Gravely 02970200

TANK, EXPANSION

$29.99

$

In Stock, Qty 7

0

2

Gravely 05076751

BRKT, VALVE DUM

$10.99

$

Usually ships in 4-12 days

0

3

Gravely 05196451

SPCR, TRANSAXLE .406 ID X .630 OD X 9.95LG (BLACK)

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 05901903

BLT, HEX-FLG 0.375-16X13 GR5 ZC120

$14.99

$

In Stock, only 2 left!

0

5

Gravely 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.99

$

In Stock, only 2 left!

0

7

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, only 3 left!

0

12

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 7

0

13

Gravely 07001528

FITTING, HYD (90 DEG)

$20.99

$

Usually ships in 4-12 days

0

14

Gravely 07001803

HOSE, FORMED EXPANSION -HD RH

$15.99

$

Usually ships in 4-12 days

0

15

Gravely 07001804

HOSE, FORMED EXPANSION -HD LH

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 07101227

ASM, WHL/TIRE 22X12.00-12 K500

$288.99

$

In Stock, only 1 left!

0

17

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 09360000

TRANSAXLE, ZT3100 - LH

$1680.99

$

Usually ships in 4-12 days

0

19

Gravely 09360100

TRANSAXLE, ZT3100 - RH

$1680.99

$

Usually ships in 4-12 days

0
