991289 (Pro-Turn ZX 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 120000 - 129999) Idlers And Sheaves - 52" And 60" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

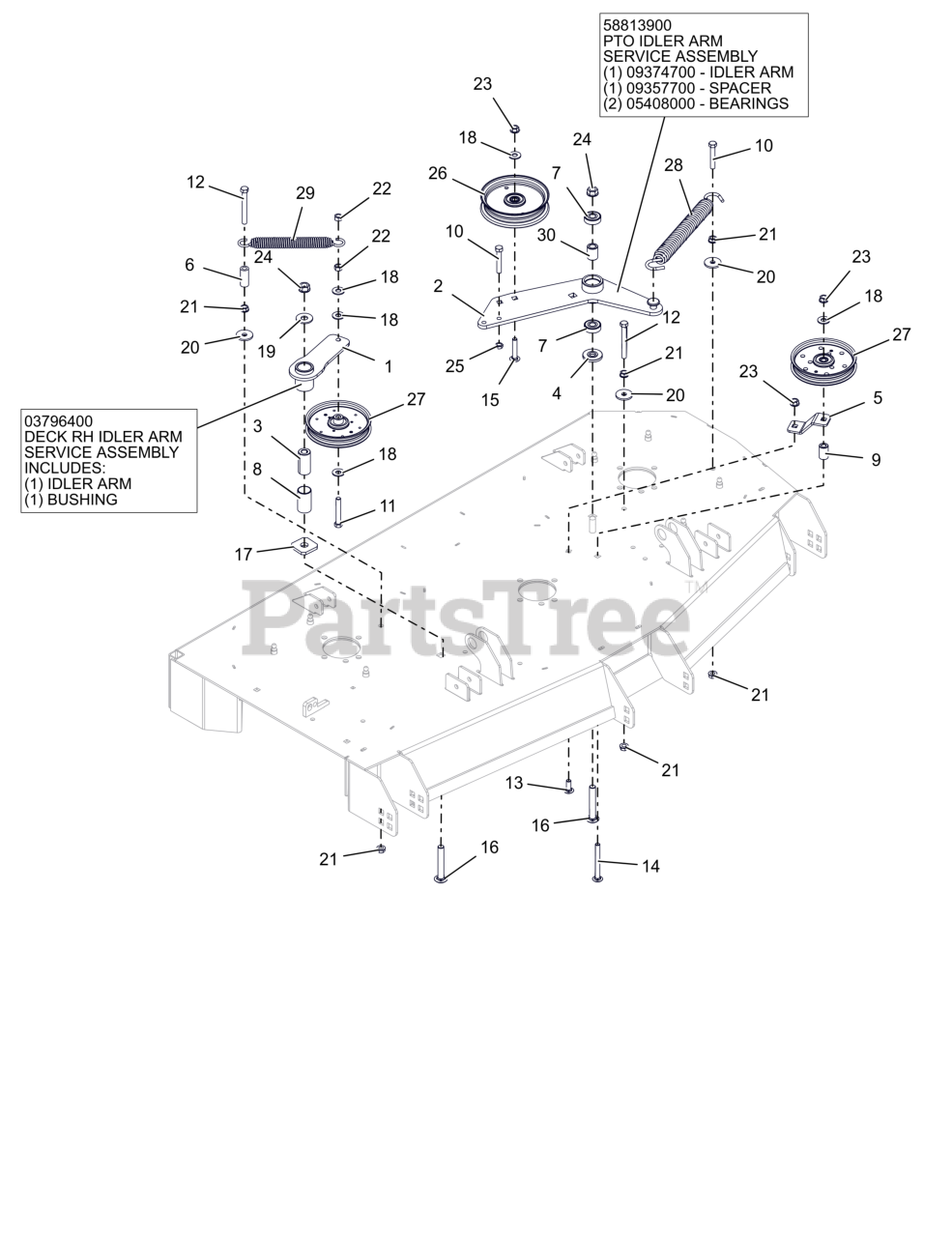

Idlers And Sheaves - 52" And 60" Parts Diagram

  • Title

1

Gravely 03774151

WMT, IDLER ARM - BLACK

$62.99

$

In Stock, Qty 8

0

1

Gravely 03796400

ASM, IDLER ARM (DECK)

Note: Component Service Assembly (Includes Reference Number 8)

$67.99

$

In Stock, Qty 10

0

2

Gravely 09374700

WLDMT, IDLER ARM PT660

$98.99

$

Usually ships in 4-12 days

0

2

Gravely 58813900

PTO IDLER ARM

Note: Component Service Assembly

$121.99

$

Usually ships in 4-12 days

0

3

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$7.49

$

In Stock, Qty 20+

0

4

Gravely 04714600

SPACER, IDLER ARM

$7.49

$

In Stock, Qty 20+

0

5

Gravely 04981853

PTO FIXED IDLER MTG BRKT -RED

$10.99

$

In Stock, Qty 7

0

6

Gravely 05278000

HOSE, .38 X 1.65

$3.49

$

In Stock, only 2 left!

0

7

Gravely 05408000

BRG-BALL .500X1.38X.437

$7.49

$

In Stock, Qty 20+

0

8

Gravely 05501234

BSHG, 1.00X1.125X1.937

$11.99

$

In Stock, Qty 20+

0

9

Gravely 05501308

BUSHING, SLV .380X.750X1.190

$5.99

$

In Stock, Qty 20+

0

10

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$5.49

$

In Stock, Qty 20+

0

11

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

12

Gravely 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$5.49

$

In Stock, Qty 14

0

13

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06200238

BLT,RHSSN .38-16X3.50 G5 ZCC

$4.99

$

In Stock, Qty 11

0

15

Gravely 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06200339

BTL,RHSSN .500-13 X 3.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

17

Gravely 06400829

WSHR-FLT .640X1.75X.250

$5.49

$

In Stock, Qty 20+

0

18

Gravely 06401008

WSHR-FLT .438X1.00X.083 ZCC

$2.99

$

In Stock, Qty 20+

0

19

Gravely 06401012

WSHR,FLT .563X1.375X.109 ZCC

$3.49

$

In Stock, Qty 20+

0

20

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$6.99

$

In Stock, Qty 17

0

21

Gravely 06500735

NUT- SPNLK-FLG .38-16 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06500825

NUT-LK-CTR .38-16 ZC120

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.49

$

In Stock, Qty 20+

0

25

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$1.99

$

In Stock, Qty 20+

0

26

Gravely 07351200

IDLER- FLAT - 5.00" X .75"

$44.99

$

In Stock, Qty 20+

0

27

Gravely 07352400

IDLER- 5" FLANGED

$43.99

$

In Stock, Qty 20+

0

28

Gravely 08300708

SPRING, EXTENSION

$22.99

$

In Stock, Qty 20+

0

29

Gravely 08300728

SPRING- EXTENSION

$29.99

$

In Stock, Qty 20+

0

30

Gravely 09357700

SPACER .510 X .867 X 1.1485

$5.99

$

In Stock, Qty 20+

0
