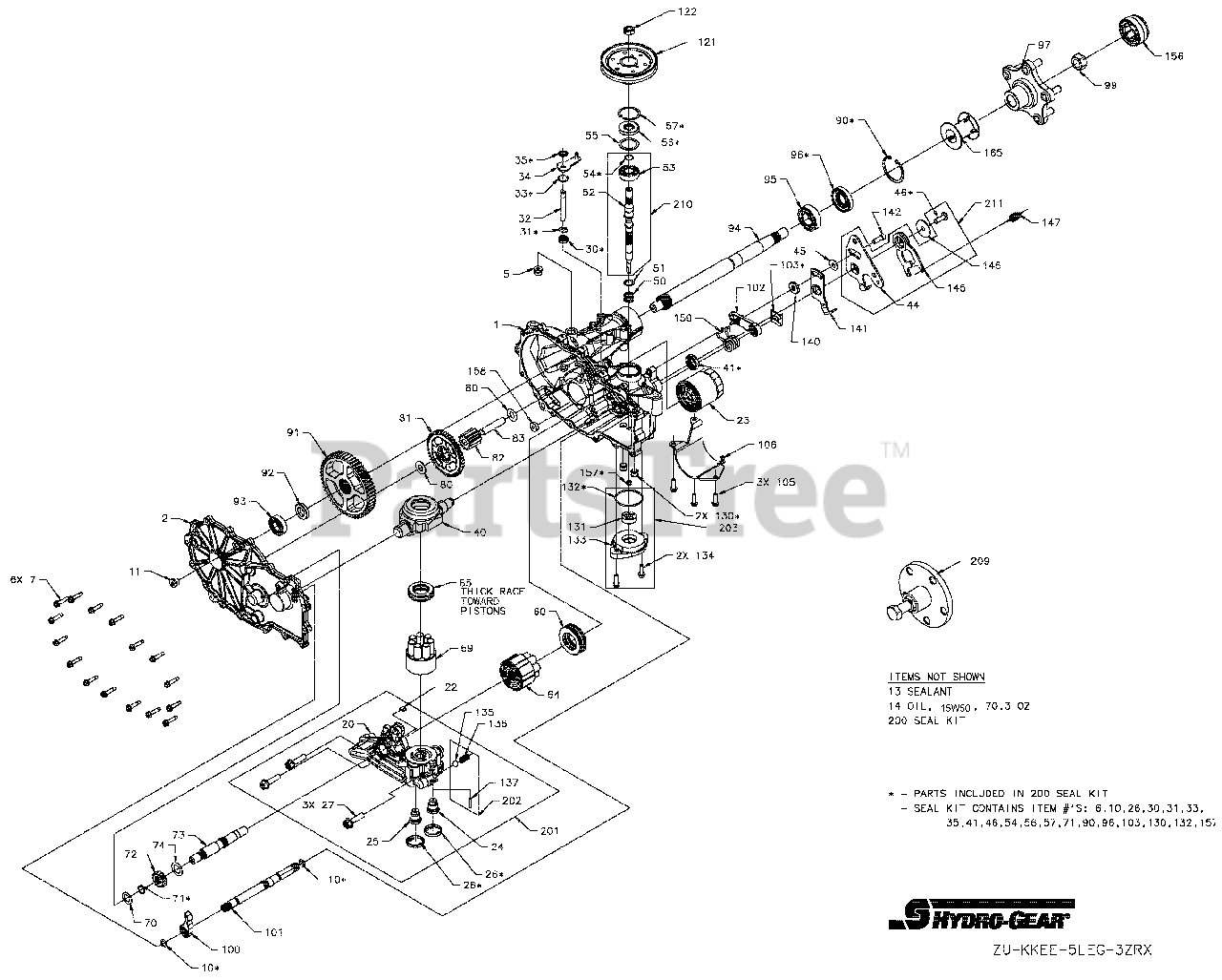

991307 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 030000 & Above) Transaxle - Left Hand Parts Diagram

Pro-Turn 52" Zero-Turn Mower

Transaxle - Left Hand Parts Diagram

  • Title

1

KIT, HOUSING,MAIN,LH,CHRG,CNTL

Note: Hydro-Gear p/n 71986

$

$

Not available

HOUSING, MAIN, LH, CHRG, CNTL

$

$

Not available

BUSHING, .624 x .719 x .562

$

$

Not available

BRG, JRNL .86 x .98 x .79

$

$

Not available

PIN, .25 x .375

$

$

Not available

(105)

HFHCS 1/4-20 x .75

$

$

Not available

(134)

HFHCS 1/4-20 x .75

$

$

Not available

2

KIT, COVER, SIDE, LH

Note: Hydro-Gear p/n 71992

$

$

Not available

COVER, SIDE, LH

$

$

Not available

BUSHING, .624 x .719 x .562

$

$

Not available

BRG, JRNL .86 x .98 x .79

$

$

Not available

5

PLUG 9/16-18 (METAL)

Note: Hydro-Gear p/n 9005110-5600

$

$

Not available

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: Hydro-Gear p/n 53246

$2.99

$

In Stock, only 1 left!

0

10

O-RING - 111 .103 x 424

Note: Hydro-Gear p/n 51804

$

$

Not available

11

PLUG 9/16-18 (METAL)

Note: Hydro-Gear p/n 9005110-5600

$

$

Not available

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$103.99

$

Usually ships in 4-12 days

0

14

Gravely 00057100

FLUID, HYDRO 15W50 QT

$14.99

$

In Stock, Qty 13

0

22

Gravely 21543839

PLATE, BYPASS

Note: Hydro-Gear p/n 51448

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 21545100

OIL FILTER, TRANSMISSION

Note: Hydro-Gear p/n 52114

$42.99

$

Usually ships in 4-12 days

0

26

Gravely 21544047

SEAL, PLUG 1.375 X .250

Note: Hydro-Gear p/n 52162

$7.99

$

Usually ships in 4-12 days

0

27

HFHCS 3/8-16 x 1.5 (PATCH)

Note: Hydro-Gear p/n 52137

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375X.75X.25

Note: Hydro-Gear p/n 51626

$9.99

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING. RETAINING

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 12

0

32

ROD, BYPASS

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Gravely 21548901

HG BYPASS ARM (52370)

Note: Hydro-Gear p/n 52370

$10.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .

Note: Hydro-Gear p/n 51630

$4.49

$

Usually ships in 4-12 days

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

Note: Hydro-Gear p/n 51140

$5.49

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/16-24 X 1.00

Note: Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

50

Gravely 08621500

SPRING. BLOCK

Note: Hydro-Gear p/n 2003014

$2.99

$

In Stock, Qty 5

0

51

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

Note: Hydro-Gear p/n 2003017

$2.99

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$2.99

$

In Stock, only 1 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n 51161

$7.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$3.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

Note: Hydro-Gear p/n 51462

$27.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

Note: Hydro-Gear p/n 71579

$103.99

$

In Stock, only 2 left!

0

65

Gravely 21548903

HG THRUST BLOCK (53502)

Note: Hydro-Gear p/n 53502

$

$

Not available

69

Gravely 21548905

HG SEVEN PISTON BLOCK (71971)

Note: Hydro-Gear p/n 71971

$81.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear p/n 44371

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$2.99

$

Usually ships in 4-12 days

0

72

GEAR, 13T, STEEL

Note: Hydro-Gear p/n 52342

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear p/n 50132

$

$

Not available

81

GEAR, 46T

Note: Hydro-Gear p/n 52343

$

$

Not available

82

GEAR, 11T, STEEL

Note: Hydro-Gear p/n 52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Gravely 08616500

RING, RETAINING

Note: Hydro-Gear p/n 50859

$3.99

$

Usually ships in 4-12 days

0

91

GEAR, 54T

Note: Hydro-Gear p/n 53327

$

$

Not available

92

SPACER, .750 x 1.320 x .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

BEARING, BALL, .75 x 40 x 12

Note: Hydro-Gear p/n 44121

$

$

Not available

94

SHAFT, AXLE

Note: Hydro-Gear p/n 53527

$

$

Not available

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

Note: Hydro-Gear p/n 50771

$15.99

$

In Stock, only 2 left!

0

96

Gravely 08614300

SEAL, LIP

Note: Hydro-Gear p/n 50772

$7.99

$

In Stock, only 4 left!

0

97

Gravely 21544023

HUB, HYDROGEAR P/N 71691

Note: Hydro-Gear p/n 71691

$81.99

$

In Stock, only 1 left!

0

HUB, TAPER 3.56, 5 BOLT

$

$

Not available

STUD, 1/2-20 x 1.5 (RIB NECK)

Note: (RIB NECK)

$

$

Not available

99

Gravely 08621100

NUT, HEX, LOCK 3/4-16

Note: Hydro-Gear p/n 50863

$7.99

$

Usually ships in 4-12 days

0

100

PAWL, BRAKE

Note: Hydro-Gear p/n 52776

$

$

Not available

101

SHAFT, BRAKE

Note: Hydro-Gear p/n 52640

$

$

Not available

102

KIT HANDLE, ACTUATING

Note: Hydro-Gear p/n 51979

$

$

Not available

103

Gravely 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

Note: Hydro-Gear p/n 52027

$2.99

$

Usually ships in 4-12 days

0

105

SCREW, HEX FLANGE 1/4-20 x .625

Note: Hydro-Gear p/n 53464

$

$

Not available

106

Gravely 21548907

HG FILTER GUARD LH (52247)

Note: Hydro-Gear p/n 52247

$15.99

$

Usually ships in 4-12 days

0

121

Gravely 21544051

PULLEY, 4.5 INCH
(Superseded to 21544079)

Note: Hydro-Gear p/n 53218

$56.99

$

In Stock, only 3 left!

0

122

Gravely 21543703

NUT, HEX 1/2-20 PATCH

Note: Hydro-Gear p/n 44133

$4.99

$

In Stock, only 3 left!

0

130

TUBE, CONNECTING

Note: Hydro-Gear p/n 52157

$

$

Not available

131

Gravely 08611500

GEROTOR

Note: Hydro-Gear p/n 50273

$25.99

$

Usually ships in 4-12 days

0

132

Gravely 21544005

O-RING HYDROGEAR 52250

Note: Hydro-Gear p/n 52250

$2.99

$

Usually ships in 4-12 days

0

133

COVER, CHARGE PUMP

Note: Hydro-Gear p/n 53468

$

$

Not available

134

SCREW, HEX FLANGE 1/4-20 x .625

Note: Hydro-Gear p/n 53464

$

$

Not available

140

Gravely 21543870

SPACER

Note: Hydro-Gear p/n 52527

$

$

Not available

141

Gravely 21543867

ARM, NEUTRAL LEFT

Note: Hydro-Gear p/n 51946

$11.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

Note: Hydro-Gear p/n 51616

$

$

Not available

146

Gravely 21543871

WASHER

Note: Hydro-Gear p/n 51950

$5.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

Note: Hydro-Gear p/n 51833

$15.99

$

Usually ships in 4-12 days

0

157

SEAL, LIP 8 x 12 x 3 VC

Note: Hydro-Gear p/n 53456

$

$

Not available

158

Gravely 21543799

MAGNET, RING

Note: Hydro-Gear p/n 51100

$2.99

$

Usually ships in 4-12 days

0

159

SPRING, TORSION CW

Note: Hydro-Gear p/n 53483

$

$

Not available

165

TUBE, AXLE 2.04

Note: Hydro-Gear p/n 53496

$

$

Not available

200

Gravely 21544034

HG SEAL KIT (71976)

Note: Hydro-Gear p/n 71976

$52.99

$

In Stock, only 2 left!

0

PIN, .25 x .375

$

$

Not available

(10)

O-RING - 111 .103 x 424

$

$

Not available

(26)

SEAL, PLUG 1.250 x .250

$

$

Not available

(30)

SEAL, LIP .375 x .75 x .25

$

$

Not available

(31)

RING, RET .375 EXTRNL

$

$

Not available

(33)

RING, RET .750 INTRNL

$

$

Not available

(35)

RING, RTNG .375 EXT

$

$

Not available

(41)

SEAL, LIP 12 x 32 x 7

$

$

Not available

(46)

TWHCS 5/16-24 x 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

54

RING, RET. WIRE .561

$

$

Not available

(56)

SEAL, LIP 17 x 40 x 7

$

$

Not available

(57)

RING, RETAINING

$

$

Not available

(71)

RING, RETAINING_.625

$

$

Not available

(90)

RING, RET 2.06 INT

$

$

Not available

(96)

SEAL, LIP 1.000 x 2.049 x .375

$

$

Not available

(103)

CLIP, RETAINING

$

$

Not available

(130)

TUBE, CONNECTING

$

$

Not available

(132)

O-RING, -137, 0.103 x 2.050

$

$

Not available

(157)

SEAL, LIP 8 x 12 x 3 VC

$

$

Not available

201

Gravely 21548909

HG CENTER SECTION KIT (71973)

Note: Hydro-Gear p/n 71973

$

$

Not available

20

CENTER SECTION, LH, CHRG

$

$

Not available

(22)

PLATE, BYPASS

$

$

Not available

24

SHOCK VALVE ASSEMBLY 220 BAR

$

$

Not available

25

SHOCK VALVE ASSEMBLY 220 BAR

$

$

Not available

(26)

SEAL, PLUG 1.250 x .250

$

$

Not available

(27)

HFHCS 3/8-16 x 1.5 (PATCH)

Note: (PATCH)

$

$

Not available

BEARING, JOURNAL .50 x .59 x .50

$

$

Not available

135

BALL 7/16

$

$

Not available

136

SPRING, RELIEF

$

$

Not available

137

PIN, SPRING .125 x .875

$

$

Not available

202

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436

$

$

Not available

135

BALL 7/16

$

$

Not available

136

SPRING, RELIEF

$

$

Not available

137

PIN, SPRING .125 x .875

$

$

Not available

203

Gravely 21544071

KIT, CHARGE PUMP

Note: Hydro-Gear p/n 71977

$90.99

$

Usually ships in 4-12 days

0

(131)

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: (1.9 cc/rev)

$

$

Not available

(132)

O-RING, -137, 0.103 x 2.050

$

$

Not available

(133)

COVER, CHARGE PUMP

$

$

Not available

(134)

HFHCS 1/4-20 x .75

$

$

Not available

209

HUB PULLER, 5 BOLT

Note: Hydro-Gear p/n 71784

$

$

Not available

210

Gravely 21544039

INPUT SHAFT HG 71978

Note: Hydro-Gear p/n 71978

$

$

Not available

52

SHAFT, INPUT

$

$

Not available

53

BRG, BALL 17 x 40 x 12

$

$

Not available

54

RING, RET WIRE .561 ID

$

$

Not available

211

Gravely 21544003

TRN KIT HRDROGEAR P/N 71599

Note: Hydro-Gear p/n 71599

$36.99

$

Usually ships in 4-12 days

0

44

ARM, CONTROL, LH

$

$

Not available

(46)

TWHCS 5/16-24 x 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

145

ASSEMBLY, RTN, CCW

$

$

Not available
