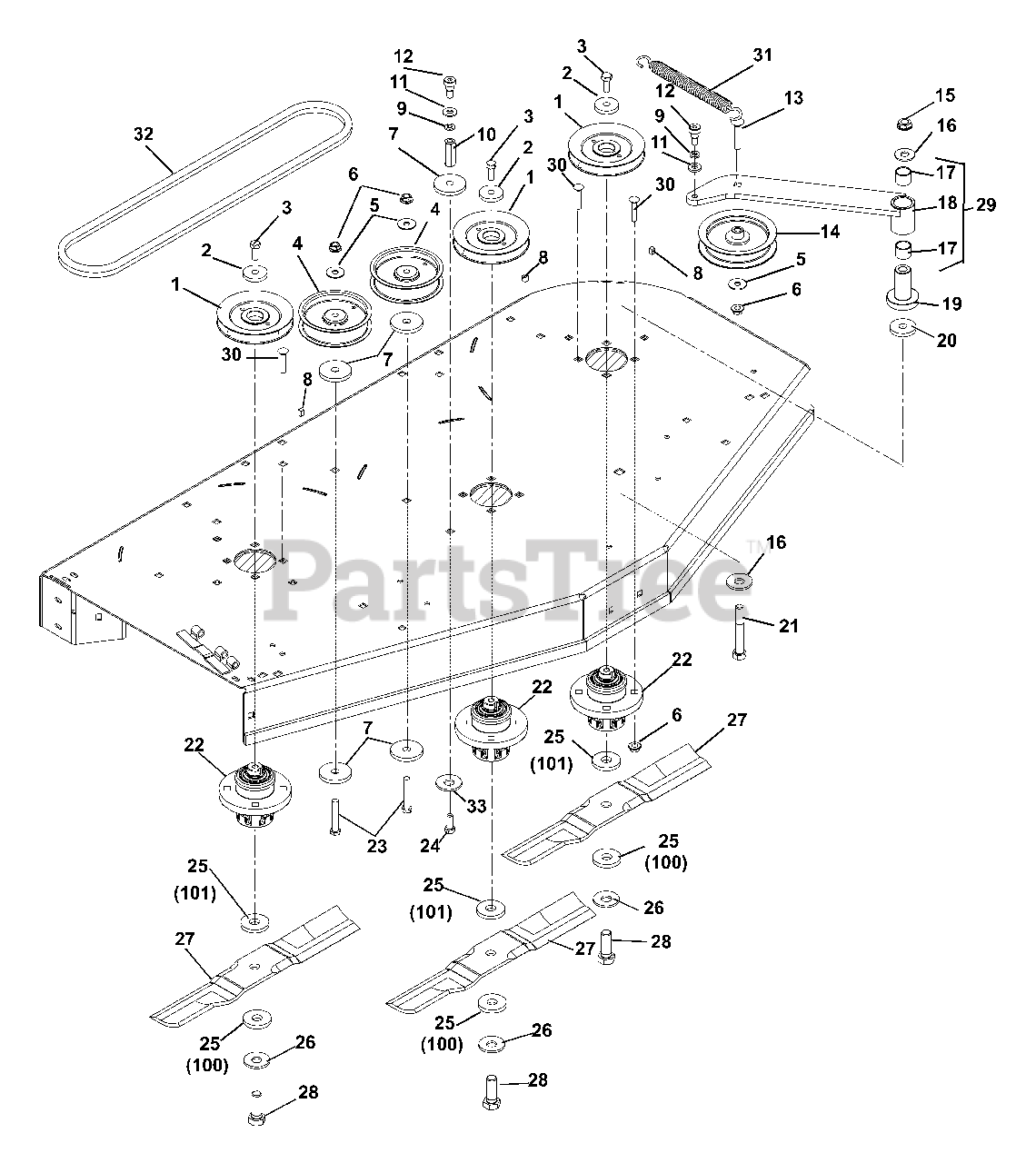

992100 (ZT 1844 XL) - Gravely 44" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) Belts, Spindles, Idlers And Blades Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Gravely 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

$55.99

$

In Stock, Qty 14

0

2

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$5.49

$

In Stock, Qty 20+

0

3

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 07327100

PULLEY, IDLER 4.00

$39.99

$

In Stock, Qty 9

0

5

Gravely 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$3.49

$

In Stock, Qty 10

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$8.49

$

In Stock, Qty 20+

0

8

Gravely 06611100

KEY, SQ .25 X .38 X .25

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06533500

NUT COUPLING .375-16X1.75

$4.99

$

In Stock, Qty 8

0

11

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$6.99

$

In Stock, only 2 left!

0

13

Gravely 06224300

BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$4.99

$

In Stock, Qty 8

0

14

Gravely 07300006

IDLER, FLAT .38X4.00X1.06
(Superseded to 07350100)

$52.99

$

In Stock, Qty 20+

0

15

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$11.99

$

In Stock, Qty 20+

0

18

Gravely 00373851

WMT, IDLER ARM

$138.99

$

Usually ships in 4-12 days

0

19

Gravely 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$88.99

$

In Stock, Qty 9

0

20

Gravely 06400011

WASHER, FLAT .531X3.000X.25

$19.99

$

Usually ships in 4-12 days

0

21

Gravely 05960100

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.99

$

In Stock, only 1 left!

0

22

Gravely 51510000

ASSEMBLY, SPINDLE

$243.99

$

In Stock, Qty 20+

0

23

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$5.49

$

In Stock, Qty 20+

0

24

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$5.49

$

In Stock, Qty 20+

0

26

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

27

Gravely 04919100

BLADE, MOWER (16.19")

Note: (101)

$27.99

$

In Stock, Qty 10

0

Gravely 01593900

BLADE, 15.50"

Note: (100)

$25.99

$

In Stock, Qty 20+

0

28

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$4.99

$

In Stock, Qty 20+

0

29

Gravely 00377500

ASSM, IDLER ARM

Note: (Contains items 17 & 18)

$126.99

$

Usually ships in 4-12 days

0

30

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$5.49

$

In Stock, Qty 20+

0

31

Gravely 08300008

SEE B-2022
(Superseded to 08300505)

Note: (Deck Idler)

$28.99

$

In Stock, Qty 20+

0

32

Gravely 07241600

V-BELT, HA-WRAPPED

$96.99

$

In Stock, Qty 15

0

33

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$4.99

$

In Stock, Qty 20+

0

34

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.99

$

In Stock, Qty 20+

0
