992218 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 020000 & Above) Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

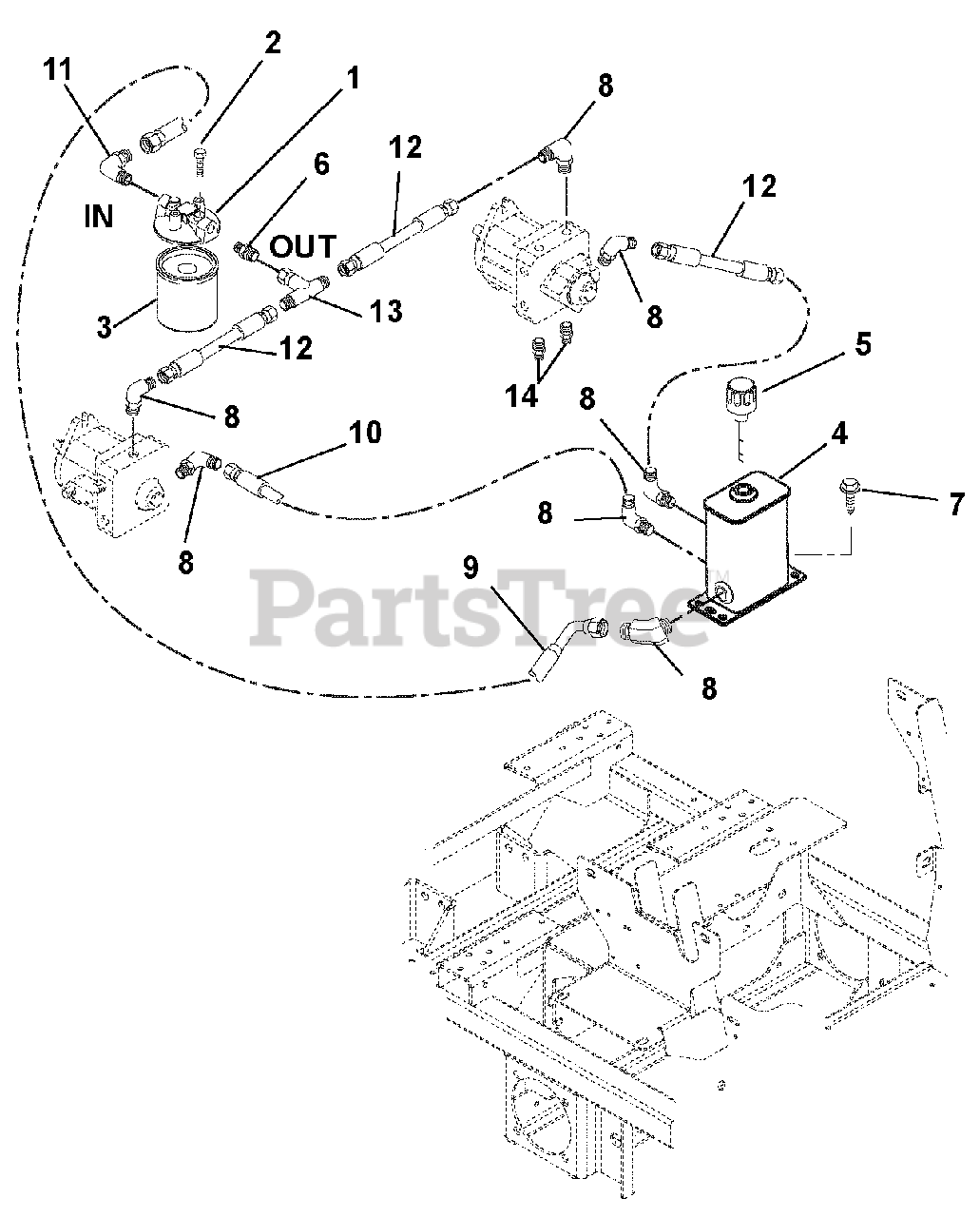

Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

  • Title

1

Gravely 00672000

HEAD, FILTER

$26.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$2.99

$

In Stock, Qty 13

0

3

Gravely 03931900

FILTER,OIL-W/BYPASS

$31.99

$

In Stock, Qty 18

0

4

Gravely 02985351

WMT,FORMED HYD.TANK-3 PORT

$182.99

$

Usually ships in 4-12 days

0

5

Gravely 00463000

BREATHER, DIPSTICK

$

$

Not available

6

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$10.99

$

In Stock, only 2 left!

0

7

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 07069600

FTG. HYD. 90 EL M8F-M8O

$36.99

$

Usually ships in 4-12 days

0

9

Gravely 00364600

HOSE, HYD. .50-19-0K F8F0-F8F9

$107.99

$

Usually ships in 4-12 days

0

10

Gravely 00364500

HOSE,HYD..50-10-0K FO8J0-FO8JO

$

$

Not available

11

Gravely 07069600

FTG. HYD. 90 EL M8F-M8O

$36.99

$

Usually ships in 4-12 days

0

12

Gravely 00364400

HOSE,HYD. .50-5-0K FO8J0-FO8J0

$37.99

$

Usually ships in 4-12 days

0

13

Gravely 07069400

FTG.HYD TEE M8O-F8O-F8O

$30.99

$

Usually ships in 4-12 days

0

14

Gravely 07063700

FITTING, HYD (4 F5OLO)

Note: (4 F5OLO)

$

$

Not available

* Use Mobil 1 15W50 Extended Performance Synthetic Oil or Equivalent (Gravely p/n 00057100)

Note: (Gravely p/n 00057100)

$

$

Not available
