992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 020000 - 029999) Air Cleaner and Idler Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

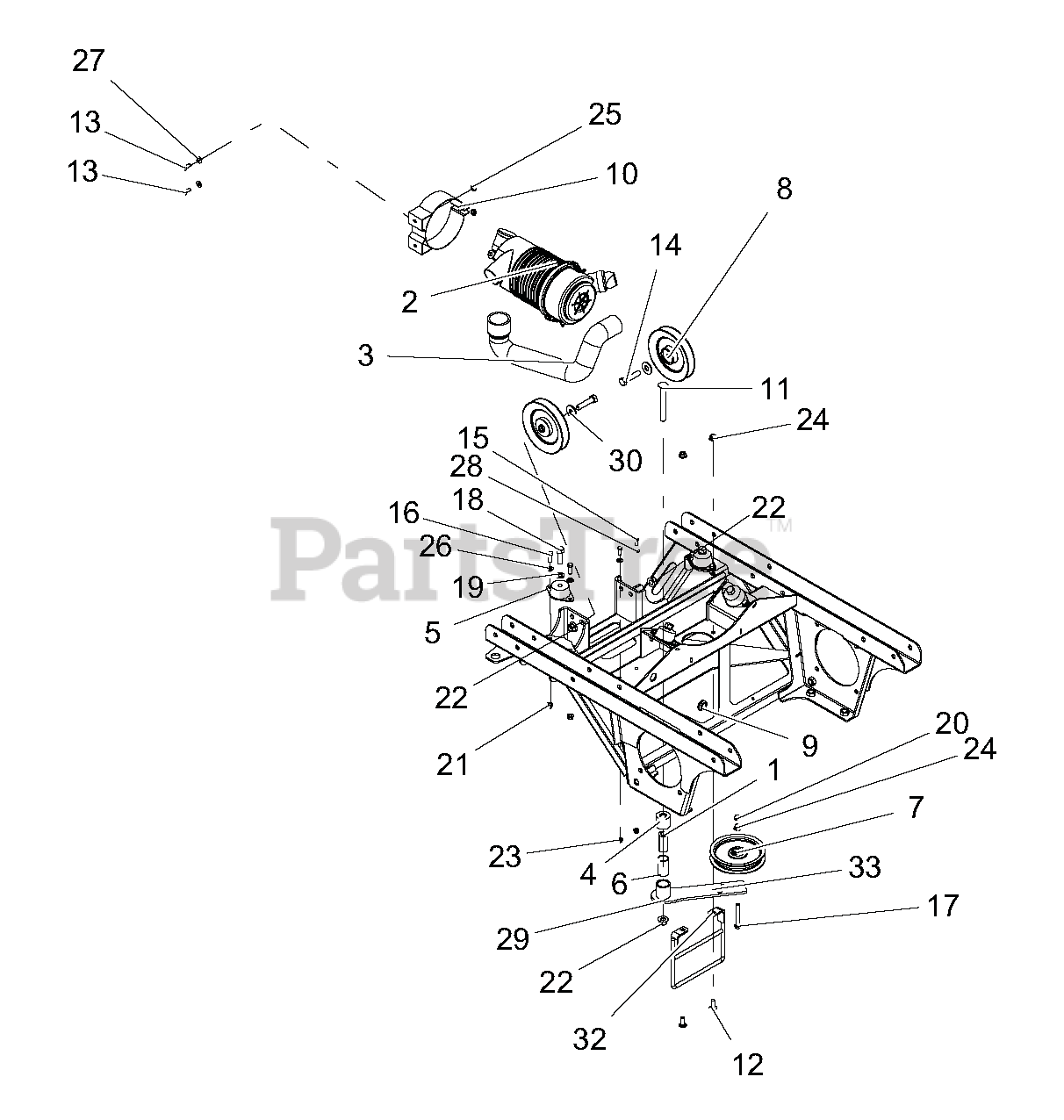

Air Cleaner and Idler Parts Diagram

  • Title

1

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$7.49

$

In Stock, Qty 20+

0

2

Gravely 03782600

CLEANER, AIR

$190.99

$

Usually ships in 4-12 days

0

3

Gravely 04440700

HOSE, AIR CLEANER OUTLET

$94.99

$

Usually ships in 4-12 days

0

4

Gravely 04453000

SPACER, IDLER ARM MOUNT

$87.99

$

Usually ships in 4-12 days

0

5

Gravely 05034800

MOUNT, ENGINE, VIBRATION ISO

$28.99

$

Usually ships in 4-12 days

0

6

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

7

Gravely 07300524

IDLER, FLAT 5.00X.38
(Superseded to 07334500)

$88.99

$

In Stock, Qty 20+

0

8

Gravely 07328000

PLY-V 6.0 X .500 ID DBL BRG.

$115.99

$

In Stock, Qty 5

0

9

Gravely 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 09257600

BRACKET, AIR CLEANER MOUNT

$93.99

$

Usually ships in 4-12 days

0

11

Gravely 06200132

BLT-RDHDSQNK .50-13X4.50 G5 Y
(Superseded to 06200505)

$

$

Not available

12

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05961000

@BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$4.99

$

In Stock, only 1 left!

0

15

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$5.49

$

In Stock, Qty 20+

0

18

Gravely 05968600

BLT-HEX .50-20X1.50 YWZC

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

30

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0

32

Gravely 04557551

WDMT, DIESEL BELT FINGER-BLK

$96.99

$

Usually ships in 4-12 days

0

33

Gravely 09217051

WMT, IDLER ARM GROUND DRIVE
(Superseded to 09217000)

$118.99

$

Usually ships in 4-12 days

0
