992253 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 041000 & Above) Transmission, RH - 03935200 Parts Diagram

Pro-Turn 52" Zero-Turn Mower

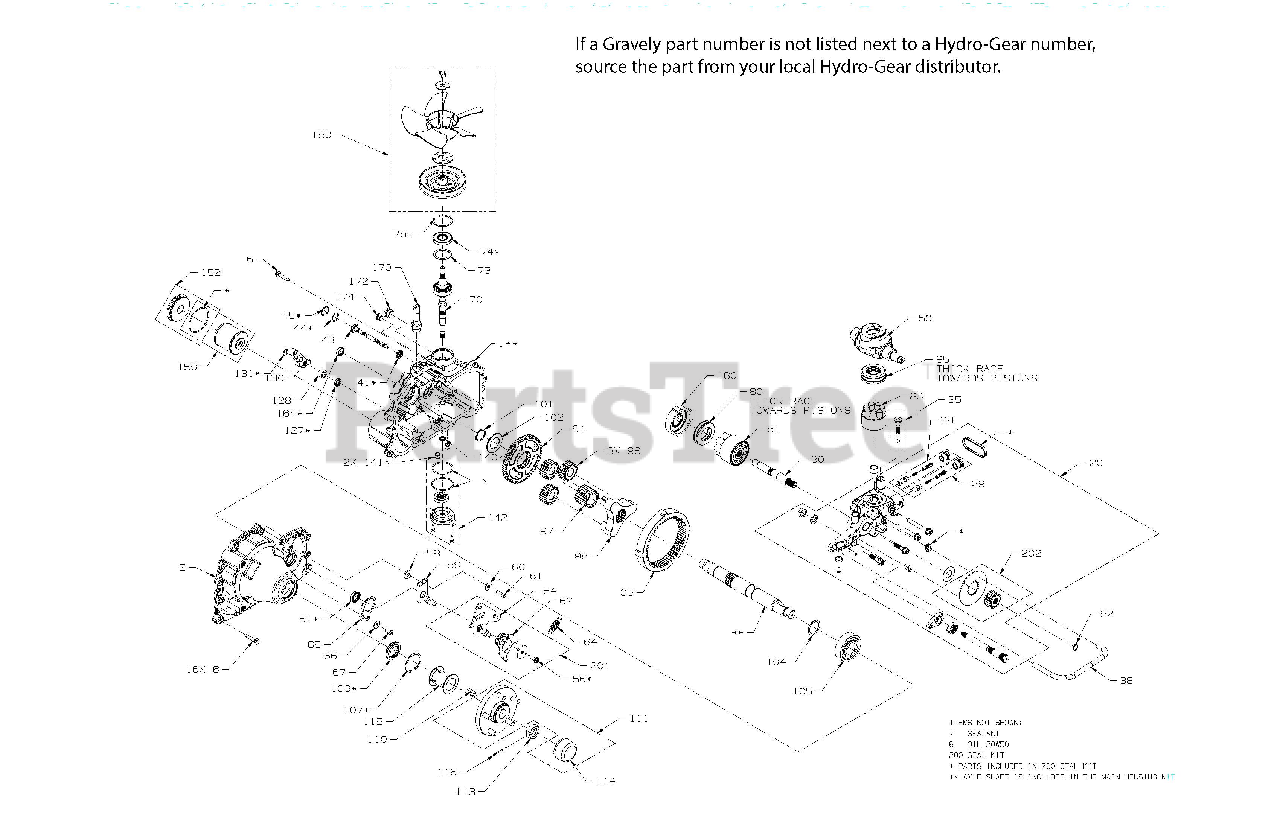

Transmission, RH - 03935200 Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, RH

Note: Hydro-Gear p/n 72690

$

$

Not available

2

Gravely 21500065

KIT, HOUSING, SIDE, RH

$431.99

$

Usually ships in 4-12 days

0

6

SCREW, HEX FLANGE 5/16-18 X 1.50

Note: Hydro-Gear p/n 53987

$

$

Not available

7

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$103.99

$

Usually ships in 4-12 days

0

8

OIL, 20W50

Note: Hydro-Gear p/n N/A

$

$

Not available

20

Gravely 21548900

CENTER SECTION KIT R(03935200)

Note: Hydro-Gear p/n 71996

$378.99

$

Usually ships in 4-12 days

0

28

Gravely 21549100

HG SHOCK VALVE KIT

Note: Hydro-Gear p/n 71952

$41.99

$

Usually ships in 4-12 days

0

29

Gravely 21549100

HG SHOCK VALVE KIT

Note: Hydro-Gear p/n 71952

$41.99

$

Usually ships in 4-12 days

0

35

Gravely 21549200

HG CHARGE RELIEF VALVE KIT

Note: Hydro-Gear p/n 71999

$12.99

$

Usually ships in 4-12 days

0

38

TUBE, FILTER, RH

Note: Hydro-Gear p/n 52983

$

$

Not available

41

SEAL, LIP 12 X 24 X 5 TC

Note: Hydro-Gear p/n 53197

$

$

Not available

43

ASSEMBLY, ACTUATOR BYPASS

Note: Hydro-Gear p/n 54335

$

$

Not available

44

SPRING, WAVE

Note: Hydro-Gear p/n 53321

$

$

Not available

45

RING, RETAINING, HO-100

Note: Hydro-Gear p/n 53322

$

$

Not available

50

SWASHPLATE, 16CC, MACHINED

Note: Hydro-Gear p/n 52972

$

$

Not available

51

SEAL, LIP, 22 X 32 X 7

Note: Hydro-Gear p/n 52989

$

$

Not available

54

ARM, CONTROL, RH

Note: Hydro-Gear p/n 53221

$

$

Not available

56

Gravely 21543854

TWHCS 5/16-24 X 1.00

Note: (PATCH) Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

58

Gravely 21543870

SPACER

Note: Hydro-Gear p/n 54315

$

$

Not available

59

Gravely 21543866

ARM, NEUTRAL RIGHT

Note: Hydro-Gear p/n 51945

$11.99

$

Usually ships in 4-12 days

0

60

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

61

Gravely 21543843

SHCS 5/16-24X1 PATCH

Note: Hydro-Gear p/n 51616

$

$

Not available

62

ASSEMBLY, RTN, UNI-DIRECTIONAL

Note: (CW) Hydro-Gear p/n 52434

$

$

Not available

64

Gravely 21544041

RTN SPRING HG 51605

Note: Hydro-Gear p/n 51605

$6.49

$

Usually ships in 4-12 days

0

65

PLATE, STOP, RH

Note: Hydro-Gear p/n 53189

$

$

Not available

66

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

67

HBHCS 5/16-18 X .75

Note: Hydro-Gear p/n 53519

$

$

Not available

70

Gravely 21544040

INPUT SHAFT HG 71941

Note: Hydro-Gear p/n 71941

$82.99

$

Usually ships in 4-12 days

0

73

SPACER

Note: Hydro-Gear p/n 51279

$

$

Not available

74

SEAL, LIP 24 X 52 X 7 TC

Note: Hydro-Gear p/n 51280

$

$

Not available

75

RING, RETAINING, INTERNAL

Note: Hydro-Gear p/n 52650

$

$

Not available

80

BRG, THRUST 42 X 68 X 16, PLASTIC CAGE

Note: (21) Hydro-Gear p/n 53341

$

$

Not available

81

Gravely 21543879

KIT, MOTOR BLOCK

Note: (21CC) Hydro-Gear p/n 72159

$99.99

$

Usually ships in 4-12 days

0

85

BRG, THRUST 35 X 70 X 22

Note: Hydro-Gear p/n 52991

$

$

Not available

86

Gravely 21544057

KIT, BLOCK, 16CC CYLINDER

Note: (16CC) Hydro-Gear p/n 72158

$68.99

$

Usually ships in 4-12 days

0

90

SHAFT, MOTOR

Note: Hydro-Gear p/n 52992

$

$

Not available

92

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$2.99

$

Usually ships in 4-12 days

0

94

GEAR, 65T

Note: Hydro-Gear p/n 52996

$

$

Not available

95

GEAR, RING, 68T

Note: Hydro-Gear p/n 53988

$

$

Not available

96

GEAR, PLANET, 23T

Note: Hydro-Gear p/n 54483

$

$

Not available

97

GEAR, SUN, 22T

Note: Hydro-Gear p/n 53000

$

$

Not available

98

CARRIER

Note: Hydro-Gear p/n 53001

$

$

Not available

100

Gravely 21544048

BALL, .75

Note: Hydro-Gear p/n 53002

$2.99

$

Usually ships in 4-12 days

0

101

RING, RETAINING, 1.25

Note: Hydro-Gear p/n 53003

$

$

Not available

102

SPACER, THRUST, AXLE

Note: Hydro-Gear p/n 53004

$

$

Not available

104

WASHER, 1.40 X 1.75 X .05

Note: Hydro-Gear p/n 53006

$

$

Not available

105

Gravely 21544049

BEARING,BALL 35 X 80 X 21 6307

Note: (6307) Hydro-Gear p/n 53007

$29.99

$

Usually ships in 4-12 days

0

106

Gravely 21549300

HG SEAL LIP 1.375X2.062X.250

Note: Hydro-Gear p/n 53008

$7.99

$

Usually ships in 4-12 days

0

107

Gravely 08616500

RING, RETAINING

Note: Hydro-Gear p/n 50859

$3.99

$

Usually ships in 4-12 days

0

110

Gravely 21544044

KEY, WOODRUFF 5/16 X 1

Note: Hydro-Gear p/n 51796

$5.49

$

Usually ships in 4-12 days

0

111

Gravely 21549400

HG 5 BOLT HUB KIT

Note: Hydro-Gear p/n 72102

$126.99

$

Usually ships in 4-12 days

0

113

Gravely 21549500

HG HEX NUT 1-20 SLOTED

Note: Hydro-Gear p/n 51821

$15.99

$

Usually ships in 4-12 days

0

114

CAP, AXLE

Note: Hydro-Gear p/n 53724

$

$

Not available

116

Gravely 21544045

PIN, COTTER 9/64 X 2 EXTENDED

Note: Hydro-Gear p/n 51822

$2.99

$

Usually ships in 4-12 days

0

127

Gravely 21576302

SEAL- LIP .562X.875X.187

Note: Hydro-Gear p/n 53015 Subs to 55523

$6.49

$

Usually ships in 4-12 days

0

128

SPACER, .57 X .86 X .53

Note: Hydro-Gear p/n 53356

$

$

Not available

130

Gravely 21544038

BRAKE ARM HG 53018

Note: Hydro-Gear p/n 53018

$8.99

$

Usually ships in 4-12 days

0

131

RING, RETAINING

Note: Hydro-Gear p/n 53019

$

$

Not available

140

SEAL, .50 X .69 X .09 VC

Note: Hydro-Gear p/n 53020

$

$

Not available

141

TUBE, PUSH O-RING

Note: Hydro-Gear p/n 52157

$

$

Not available

142

Gravely 21549600

CHARGE COVER KIT

Note: Hydro-Gear p/n 71942

$91.99

$

Usually ships in 4-12 days

0

150

Gravely 21548300

FILTER,HYD OIL W/ORING ZT-54OO

Note: Hydro-Gear p/n 71943

$28.99

$

Usually ships in 4-12 days

0

152

Gravely 21549700

HG FILTER PLUG KIT

Note: Hydro-Gear p/n 71944

$25.99

$

Usually ships in 4-12 days

0

160

PLATE, MOTOR, SWASH

Note: Hydro-Gear p/n 53026

$

$

Not available

164

SEAL, PLUG

Note: Hydro-Gear p/n 53031

$

$

Not available

170

FITTING, 7/8-14 SAE, .625 BEADED

Note: Hydro-Gear p/n 53037

$

$

Not available

172

PLUG 7/8-14, METAL

Note: Hydro-Gear p/n 9005110-8700

$

$

Not available

174

PLUG, 9/16-18, METAL

Note: Hydro-Gear p/n 9005110-5600

$

$

Not available

180

Gravely 21544035

PULLEY/FAN KIT HG 71906

Note: Hydro-Gear p/n 71906

$111.99

$

Usually ships in 4-12 days

0

200

Gravely 21544036

SEAL KIT HG 71945

Note: Hydro-Gear p/n 71945

$71.99

$

In Stock, Qty 5

0

201

Gravely 21544074

KIT, RTN, RH, UNI-DIRECTIONAL

Note: Hydro-Gear p/n 72001

$38.99

$

Usually ships in 4-12 days

0

202

KIT, BRAKE ROTOR, GEAR

Note: Hydro-Gear p/n 72748

$

$

Not available
