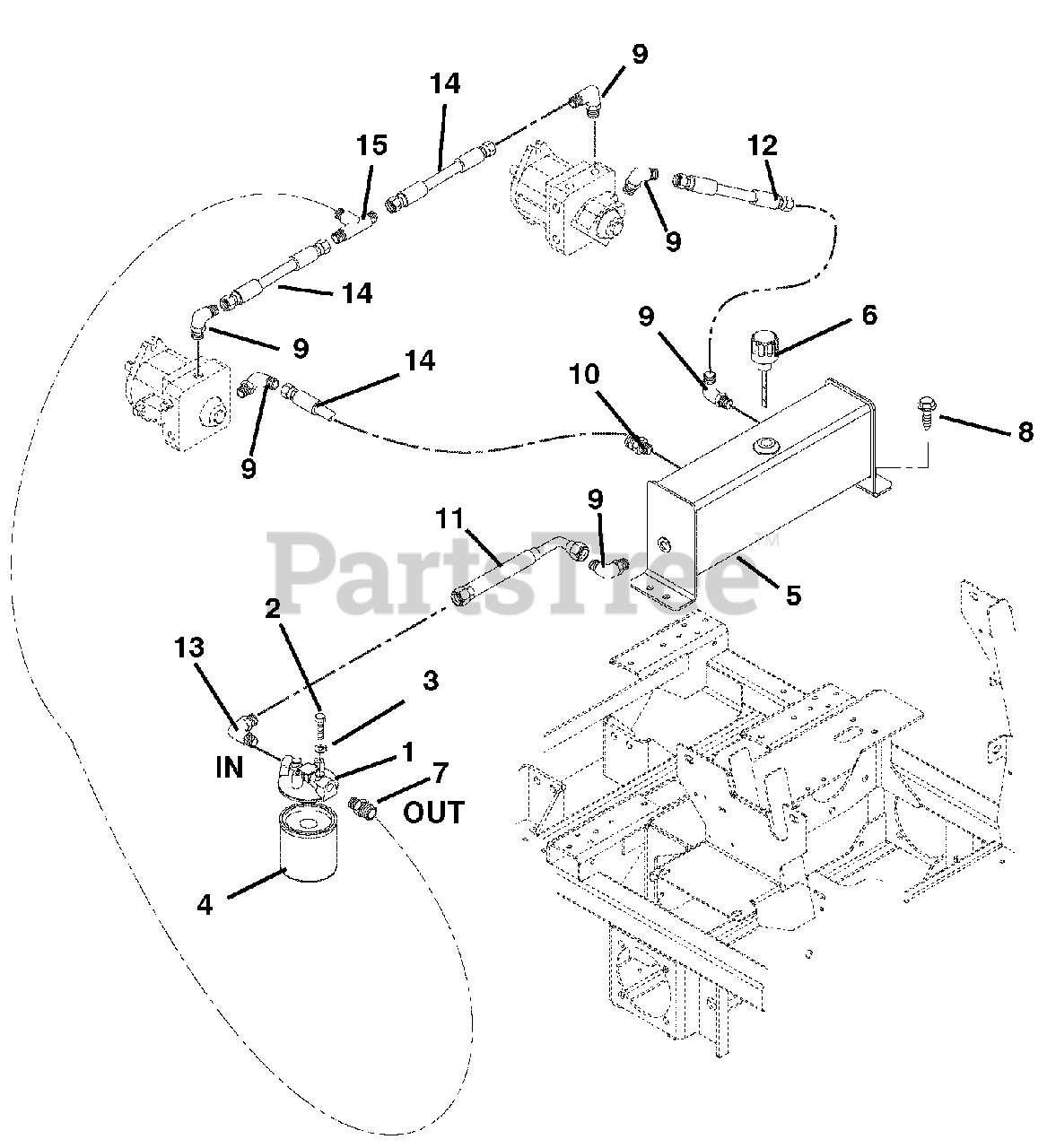

992316 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge (SN: 000101 - 000999) Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge

Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

  • Title

1

Gravely 09419900

FILTER HOUSING ZINGA ZAF11250

$

$

Not available

2

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09414200

FILTER ELEMENT, ZINGA AE-25
(Superseded to 03931900)

$31.99

$

In Stock, Qty 18

0

5

Gravely 00161051

WMT, HYDRAULIC TANK

$

$

Not available

6

Gravely 09273900

BREATHER, DIPSTICK

$89.99

$

In Stock, only 2 left!

0

7

Gravely 07050900

ADPTR-HYD ST 1 1/16 "O" TO 3/4

$

$

Not available

8

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 07018200

ADPTR-HYD EL 3/4 "O" TO 3/4

$7.99

$

Usually ships in 4-12 days

0

10

Gravely 07020400

ADAPTER, HYD ST 3/4 "O" TO 3/4

$

$

Not available

11

Gravely 09273100

HOSE, HYD .50-16-0K F8J0-F8J9

$

$

Not available

12

Gravely 09273300

HOSE, HYD .50-10-0K F8J0-F8J0

$56.99

$

Usually ships in 4-12 days

0

13

Gravely 07058500

ADPT,EL 90DEG .75-16MX1.06-12M

$77.99

$

Usually ships in 4-12 days

0

14

Gravely 09273000

HOSE, HYD .50-5-0K F8J0-F8J0

$

$

Not available

15

Gravely 07066800

FTG HYD TEE M8J-F8J-M8J

$37.99

$

Usually ships in 4-12 days

0
