992510 (Pro-Turn 552) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 020000 - 039999) Transaxles Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

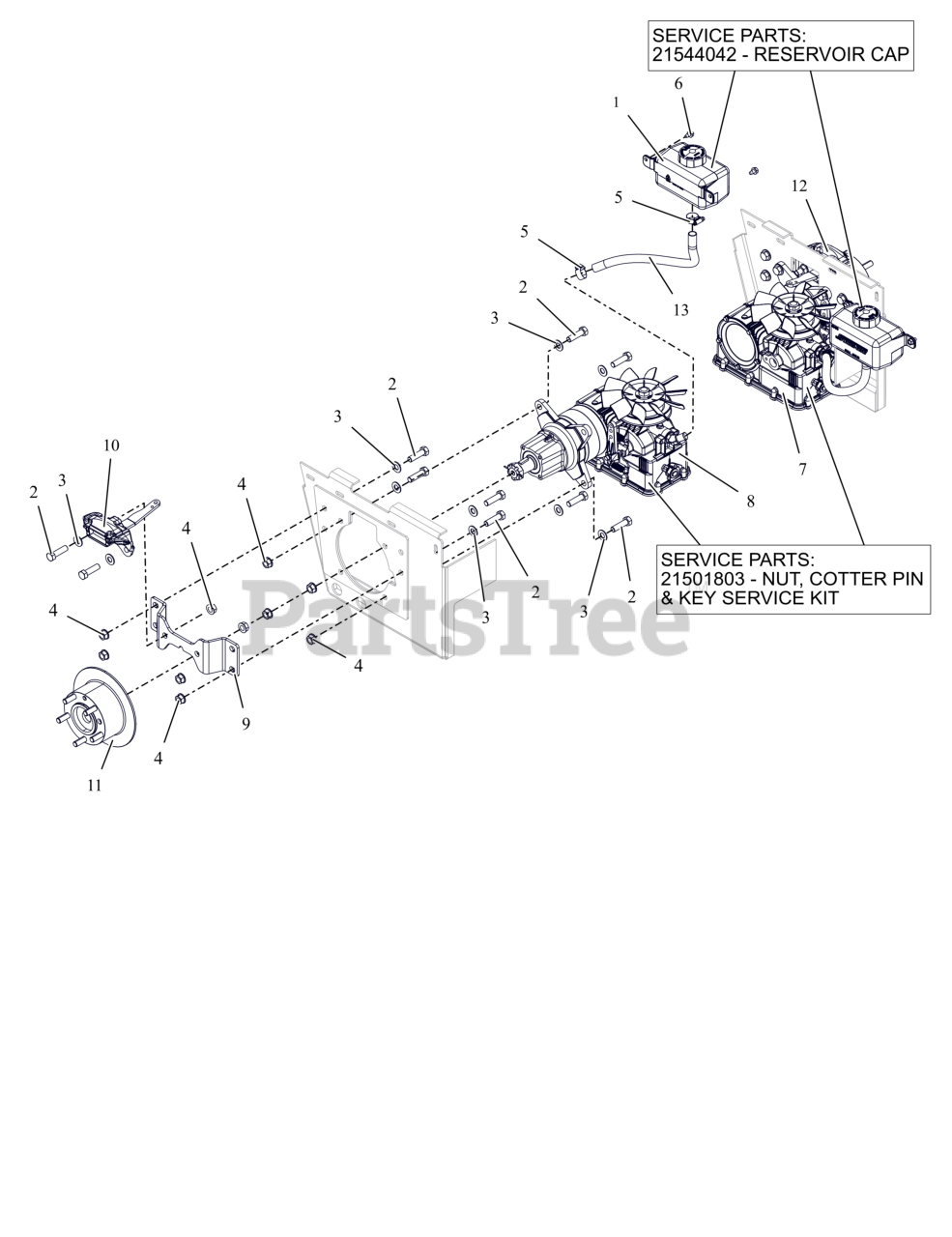

Transaxles Parts Diagram

  • Title

1

Gravely 03947000

TANK, HYD 1000ML

$29.99

$

In Stock, Qty 19

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: Component Service<BR/> Part

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 05902204

BLT- HEX .50-13 X 1.75 G8 ZCC

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06501005

NUT, FLG-CTR LK .500-13 GG ZCC

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 15

0

6

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

7

Gravely 30287400

TRANSAXLE, LH PARKER HTG13/310

$1745.99

$

Usually ships in 4-12 days

0

7

Gravely 21501803

SERVICE KIT NUT, COTTER PIN & KEY

Note: Component Service<BR/> Part

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 30287500

TRANSAXLE, RH PARKER HTG13/310

$1745.99

$

Usually ships in 4-12 days

0

8

Gravely 21501803

SERVICE KIT NUT, COTTER PIN & KEY

Note: Component Service<BR/> Part

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 09427553

BRKT, CALIPER MTG (RED)

$

$

Not available

10

Gravely 09427600

BRAKE, CALIPER RH

$187.99

$

Usually ships in 4-12 days

0

11

Gravely 09427700

ROTOR, BRAKE W/STUDS

$

$

Not available

12

Gravely 09427900

BRAKE, CALIPER LH

$187.99

$

Usually ships in 4-12 days

0

13

Gravely 09694800

HOSE PT500 TRANSAXLE OVERFLOW

$23.99

$

Usually ships in 4-12 days

0
