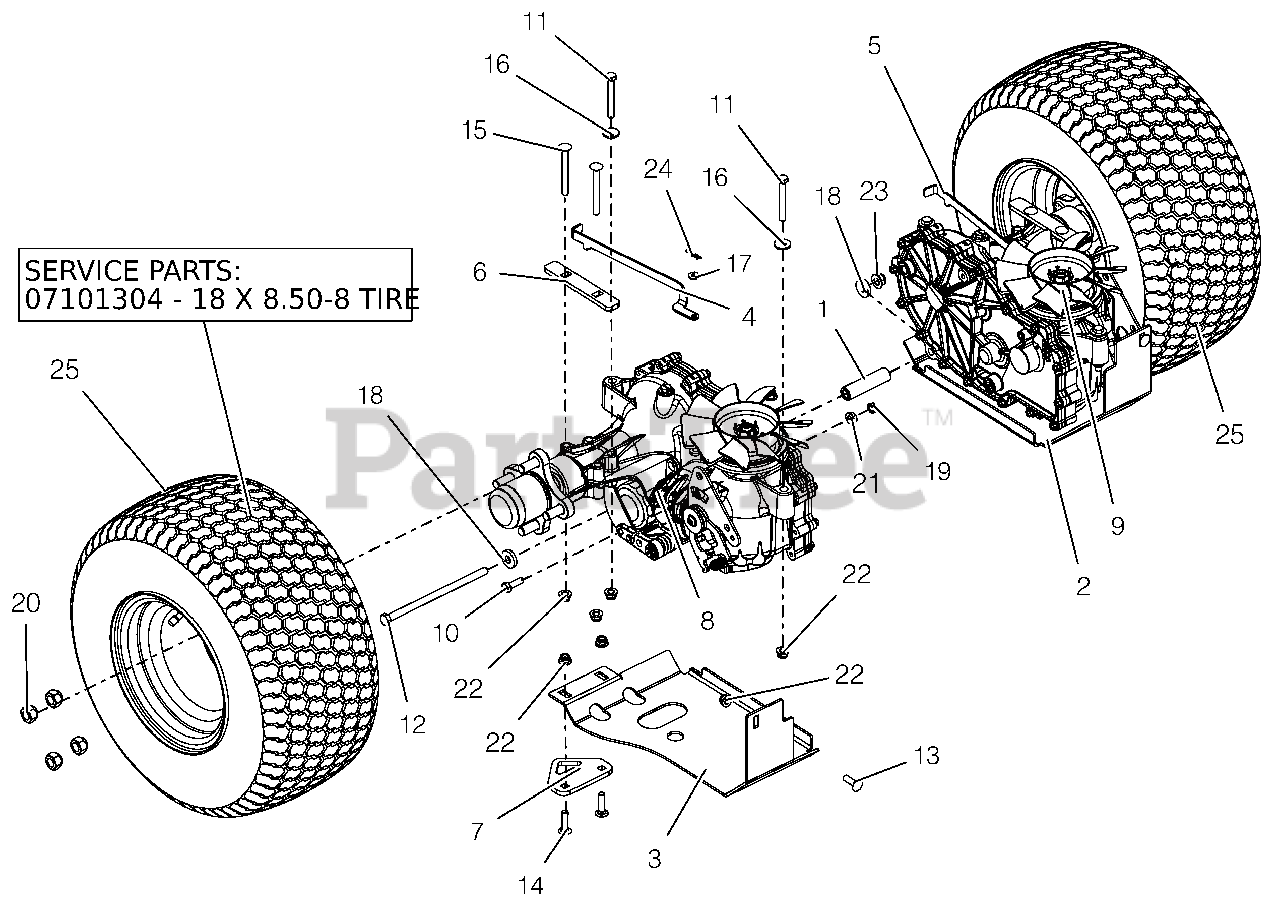

994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 020000 & Above) Rear Tire And Transaxle Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

Rear Tire And Transaxle Parts Diagram

  • Title

1

Gravely 04672400

SHAFT, CROSS BRACE

$37.99

$

Usually ships in 4-12 days

0

2

Gravely 04672651

PLATE, TRANS SKID

$31.99

$

Usually ships in 4-12 days

0

3

Gravely 04673051

PLATE, TRANS SKID

$31.99

$

Usually ships in 4-12 days

0

4

Gravely 04686851

BRKT, LH DUMP VALVE

$19.99

$

Usually ships in 4-12 days

0

5

Gravely 04686951

BRKT, RH DUMP VALVE

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 04687753

DOUBLER, TRANS MNT

$8.49

$

Usually ships in 4-12 days

0

7

Gravely 04723653

BRKT, TIE DOWN LOOP

$

$

Not available

8

Gravely 04827500

TRANSAXLE, RH - ZT31000

$1670.99

$

Usually ships in 4-12 days

0

9

Gravely 04827600

TRANSAXLE, LH - ZT3100

$1519.99

$

Usually ships in 4-12 days

0

10

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 18

0

12

Gravely 05979500

@BLT-HEX .38-16X7.00 GR5 YWZC

$

$

Not available

13

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 06226300

BLT-RDHDSQNK .31-18X3.00 G5YZ

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 11

0

20

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 3 left!

0

25

Gravely 07101120

ASM, WHL/TIRE 18X8.50-8

$151.99

$

Usually ships in 4-12 days

0

25

Gravely 07101304

TIRE, 18 X 8.50-8
(Superseded to 07101220)

Note: SERVICE PART

$105.99

$

In Stock, only 1 left!

0
