994160 - Gravely Z-Stance 32" Stand-On Mower, Kawasaki FS (SN: 002000 - 199999) Idlers and Sheaves - 32" Parts Diagram

Z-Stance 32" Stand-On Mower, Kawasaki FS

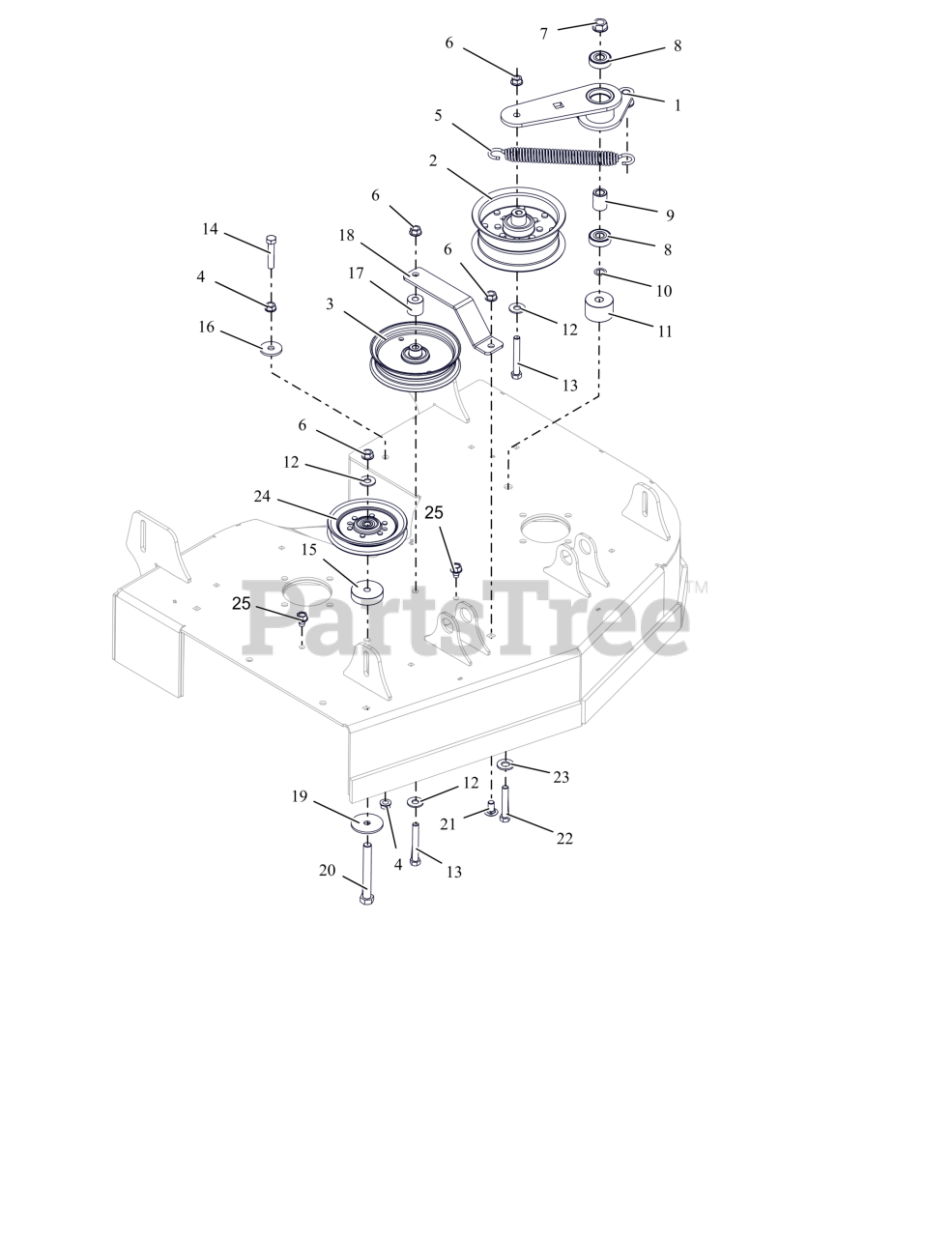

Idlers and Sheaves - 32" Parts Diagram

  • Title

1

Gravely 09667900

WLDMT- IDLER ARM- 32" DECK

$65.99

$

Usually ships in 4-12 days

0

2

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$77.99

$

In Stock, Qty 10

0

3

Gravely 07351200

IDLER- FLAT - 5.00" X .75"

$42.99

$

In Stock, Qty 20+

0

4

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

5

Gravely 08300728

SPRING- EXTENSION

$28.99

$

In Stock, Qty 20+

0

6

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

9

Gravely 09357700

SPACER .510 X .867 X 1.1485

$5.49

$

In Stock, Qty 20+

0

10

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05501513

SPCR- DECK IDLER ARM

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$2.49

$

In Stock, Qty 20+

0

13

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

14

Gravely 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

15

Gravely 30154200

SPCR, .380 X 2.000 X .500

$19.99

$

Usually ships in 4-12 days

0

16

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$6.49

$

In Stock, Qty 18

0

17

Gravely 05501514

BUSHING- SLV .380 X .750 X .76

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 09667853

BRKT- 32" FIXED IDLER MTG(RED)

$23.99

$

Usually ships in 4-12 days

0

19

Gravely 06401221

WSHR-FL-STL 0.406X2X0.125 ZCC

$3.99

$

In Stock, only 1 left!

0

20

Gravely 05901734

BLT, HEX .50-13X4.00 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

22

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

23

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.99

$

In Stock, Qty 20+

0

24

Gravely 07351800

IDLER, V, 5.00X.38

$31.99

$

In Stock, Qty 20+

0

25

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0
