994170 - Gravely Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Deck Lift 52" and 60" Parts Diagram

Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX

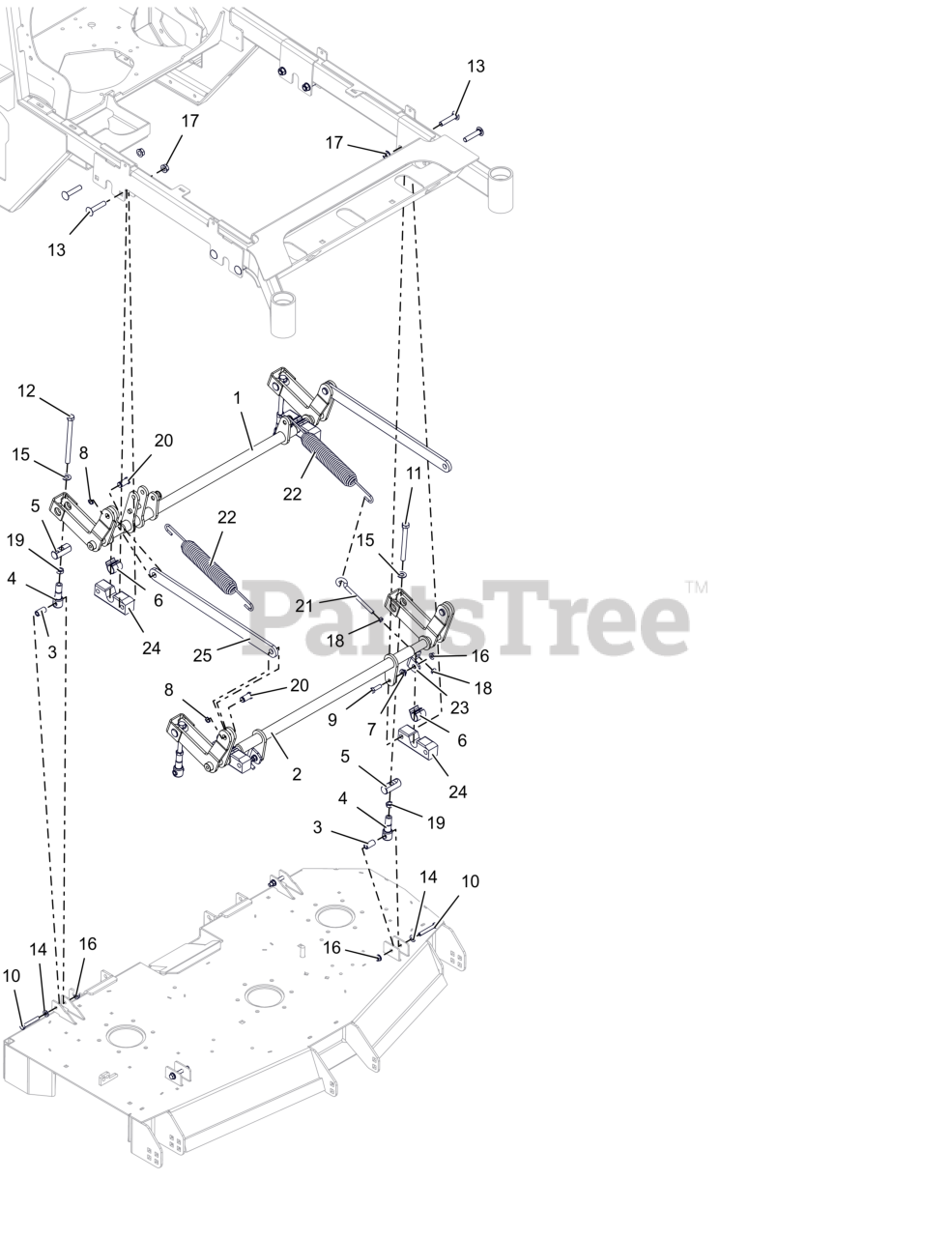

Deck Lift 52" and 60" Parts Diagram

  • Title

1

Gravely 30230051

WLDMT, REAR DECK LIFT CROSS SHAFT (BLACK)

$303.99

$

Usually ships in 4-12 days

0

2

Gravely 30230151

WLDMT, FRONT DECK LIFT CROSS SHAFT (BLACK)

$316.99

$

Usually ships in 4-12 days

0

3

Gravely 04895200

SPACER, DECK LEVELING

$2.99

$

In Stock, Qty 12

0

4

Gravely 05081400

LINK, DECK LIFT FORMED

$16.99

$

In Stock, only 3 left!

0

5

Gravely 05149500

PIN, DECK LIFT

$17.99

$

In Stock, Qty 20+

0

6

Gravely 05400736

BUSHING, SHAFT

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 05901724

BLT- HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05901811

BLT, HEX .38-16X2.50 G8 ZCC

$3.99

$

In Stock, only 2 left!

0

11

Gravely 05901925

BLT, HEX 0.5-13X5S GR5 ZCC

$5.49

$

In Stock, Qty 7

0

12

Gravely 05902221

BLT, HEX 0.5-13X6.5S GR5 ZCC

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 06200502

BLT,RHSSN .500-13 X 2.5 G5 ZCC

$24.99

$

Usually ships in 4-12 days

0

14

Gravely 06401013

WSHR-FLT .406X.812X.065 ZCC

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06500911

NUT-JAM .500-13 G2 ZCC

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06800207

PIN, CLEVIS .625 SNAP RING

$7.49

$

Usually ships in 4-12 days

0

21

Gravely 07001733

BOLT, EYE .38-16X4.50 .62DIABZ

$14.99

$

Usually ships in 4-12 days

0

22

Gravely 08300722

SPRG, DECK LIFT

$23.99

$

Usually ships in 4-12 days

0

23

Gravely 09368751

BRKT, SPRING ANCHOR (BLACK)

$19.99

$

Usually ships in 4-12 days

0

24

Gravely 09466900

BUSHING- DECK LIFT

$35.99

$

Usually ships in 4-12 days

0

25

Gravely 30230551

LINK, DECK LIFT (BLACK)

$

$

Currently unavailable
