994170 - Gravely Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Parking Brake Parts Diagram

Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX

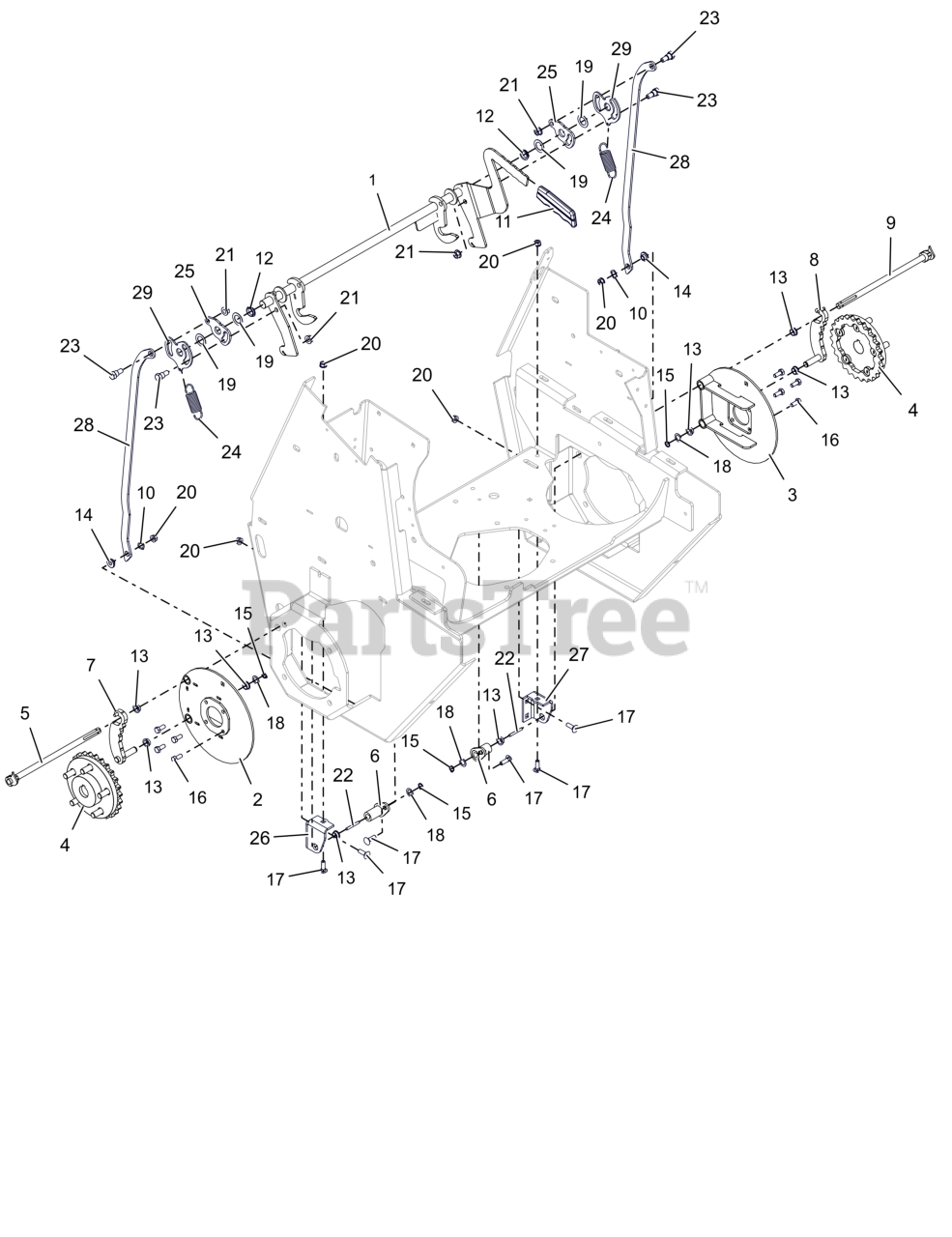

Parking Brake Parts Diagram

  • Title

1

Gravely 30228700

WLDMT, PARKING BRAKE SHAFT

$126.99

$

Usually ships in 4-12 days

0

2

Gravely 30228851

WLDMT, PARK BRAKE MOUNT (BLACK)

$112.99

$

Usually ships in 4-12 days

0

3

Gravely 30228951

WLDMT, PARK BRAKE MOUNT,LH (BLACK)

$112.99

$

Usually ships in 4-12 days

0

4

Gravely 30229000

WLDMT, PARK BRAKE HUB

$211.99

$

Usually ships in 4-12 days

0

5

Gravely 30232900

WLDMT, PARK BRAKE CAM SHAFT RH

$59.99

$

Usually ships in 4-12 days

0

6

Gravely 30233100

WLDMT, PARK BRAKE INNER

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 30233200

WLDMT, RH BRAKE ENGAGEMENT

$52.99

$

Usually ships in 4-12 days

0

8

Gravely 30233300

WLDMT, LH BRAKE ENGAGEMENT

$52.99

$

Usually ships in 4-12 days

0

9

Gravely 30276800

WLDMT, PARK BRAKE CAM SHAFT LH

$52.99

$

Usually ships in 4-12 days

0

10

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 15

0

11

Gravely 05097200

GRIP, PARKING (GRAY)

$6.49

$

In Stock, only 1 left!

0

12

Gravely 05500112

BUSHING, SPLIT .75X.81X.20THK

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.99

$

In Stock, Qty 20+

0

14

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 20+

0

15

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 14

0

16

Gravely 05902225

BLT, HEX 0.3125-18X0.75 GR5 ZCCEP30

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 06200231

BLT-RHSN .31-18X1.00 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

18

Gravely 06401133

WSHR-FL-STL 0.52X0.81X0.033 ZCC

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 06401136

WSHR-FL-STL 0.76X1.225X0.032 ZCC

$3.99

$

In Stock, only 1 left!

0

20

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06609600

KEY-SQ .188X1.50X.188

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 07002030

BLT-SHLDR .50X.38 ZCC

$6.49

$

In Stock, only 2 left!

0

24

Gravely 08300823

SPRG, EXTENSION .105 X .938 X 3.190

$8.49

$

Usually ships in 4-12 days

0

25

Gravely 30227900

PLATE, PARK BRAKE SLOTTED

$8.49

$

Usually ships in 4-12 days

0

26

Gravely 30228551

BRKT, RH PARK BRAKE PIVOT (BLACK)

$17.99

$

Usually ships in 4-12 days

0

27

Gravely 30228651

BRKT, LH PARK BRAKE PIVOT (BLACK)

$17.99

$

Usually ships in 4-12 days

0

28

Gravely 30232651

PLATE, PARK BRAKE LINKAGE (BLACK)

$8.49

$

Usually ships in 4-12 days

0

29

Gravely 30268500

PLATE, PARK BRAKE SPRING TENSION

$6.49

$

Usually ships in 4-12 days

0
