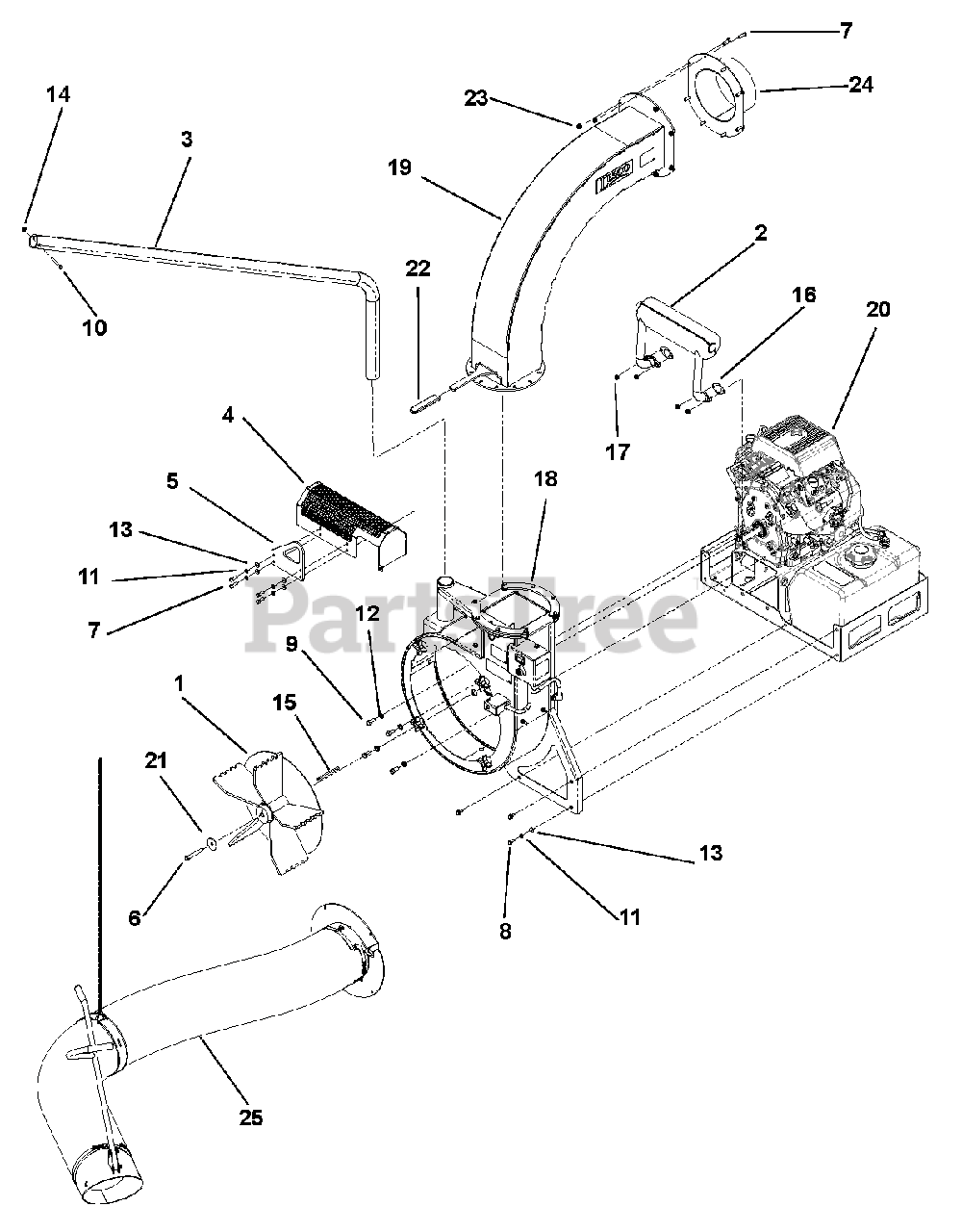

995025 - Parker Truck Loader with 10" Hose (SN: 000101 & Above) Main Assembly Parts Diagram

Truck Loader with 10" Hose

Main Assembly Parts Diagram

  • Title

1

Gravely 04216800

WLDT, IMPELLER 5 BLADE BAL.

Note: (995841)

$614.99

$

Usually ships in 4-12 days

0

Gravely 04222600

WLDT, 20 TL FAN

Note: (995025)

$527.99

$

Usually ships in 4-12 days

0

2

Gravely 04236200

MUFFLER, SUBARU 20HP & 22HP

$

$

Not available

3

Gravely 04246353

SUPPORT ARM (RED)

$

$

Not available

4

Gravely 04246451

SHIELD, MUFFLER (BLK)

$

$

Not available

5

Gravely 04247853

PLATE, BLOWER LIFT (RED)

$

$

Not available

6

Gravely 05900037

BLT-HEX .44-20X3.00 G5 YZ EP80

Note: (995841)

$7.49

$

In Stock, Qty 12

0

Gravely 05901417

BLT-HEX .38-24X3.0 GR5 YZ EP80

Note: (995025)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05901427

BLT-HEX .44-14X.88 GR5 YZ EP30

$

$

Not available

10

Gravely 05961600

BLT-HEX .25-20X2.50 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06600216

KEY-SQ .250 X 4.00

$8.49

$

Usually ships in 4-12 days

0

16

Gravely 21549900

GASKET, EXHAUST MAN. SUBARU EH

$

$

Not available

17

Gravely 21549901

NUT, EXHAUST MAN. SUBARU EH

$

$

Not available

18

Fan Housing Assembly, 22 HP (See Fan Housing Assembly on page 8.)

Note: (See Fan Housing Assembly on page 8.)

$

$

Not available

Fan Housing Assembly, 20 HP (See Fan Housing Assembly on page 8.)

Note: (See Fan Housing Assembly on page 8.)

$

$

Not available

19

Gravely 50552007

ASSY, EX. TALL W/DECALS PARKER

Note: (Grn)

$

$

Not available

20

Engine and Base Assembly, 22 HP (See Engine & Base Assembly on page 6.)

Note: (See Engine & Base Assembly on page 6.)

$

$

Not available

Engine and Base Assembly, 20 HP (See Engine & Base Assembly on page 6.)

Note: (See Engine & Base Assembly on page 6.)

$

$

Not available

21

Gravely P82-138-B-3

WSR-AREA VAC 35 29/64X13/4X134

$7.99

$

Usually ships in 4-12 days

0

22

Gravely 00105593

GRIP, RUBBER LEVER

$

$

Not available

23

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 04218453

WLDT, DISCHARGE 8" (RED)

$158.99

$

Usually ships in 4-12 days

0

25

Vacuum Hose Assembly, 12" (See Vacuum Hose Assembly on page 10.)

Note: (See Vacuum Hose Assembly on page 10.)

$

$

Not available

Vacuum Hose Assembly, 10" (See Vacuum Hose Assembly on page 10.)

Note: (See Vacuum Hose Assembly on page 10.)

$

$

Not available
