ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

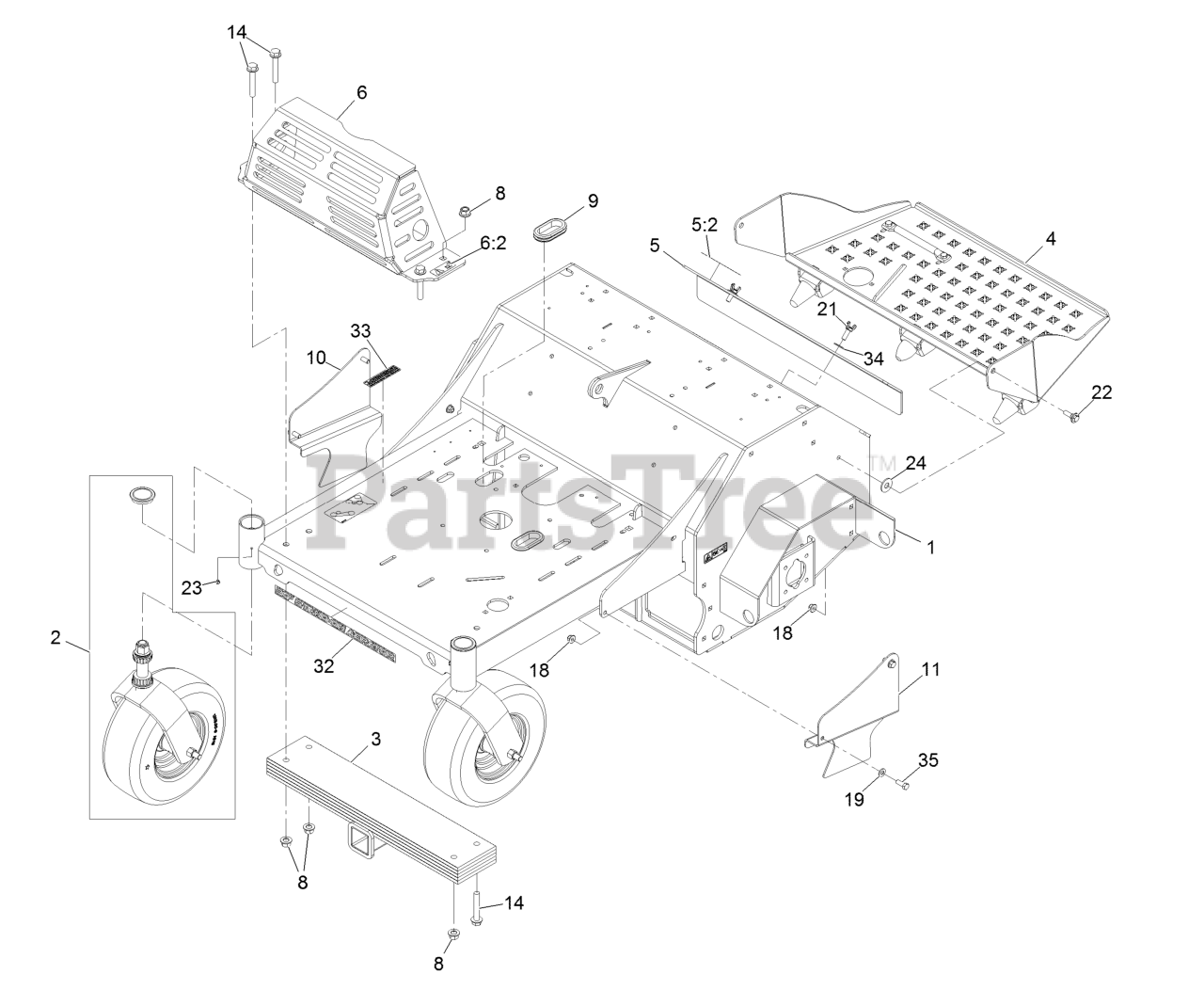

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-8138

Main Frame ASM
(Superseded to 135-2517)

$2634.99

$

Usually ships in 3-6 days

0

2

Front Caster ASM W/Fork

$

$

Not available

3

Exmark 116-6536-01

Weight

$679.99

$

Usually ships in 3-6 days

0

4

Exmark 116-9134

Platform ASM W/Decal & Rocker

$627.99

$

Usually ships in 3-6 days

0

5

Exmark 116-7300

Access Cover ASM

$145.99

$

Usually ships in 3-6 days

0

5:2

Exmark 121-6163

Decal-Tine Ground Operation (CE)

$9.49

$

Usually ships in 3-6 days

0

6

Exmark 116-8258

Muffler Guard ASM

$353.99

$

Usually ships in 3-6 days

0

6:2

Exmark 115-2047

Decal-Surface, Hot

$18.99

$

Usually ships in 3-6 days

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

9

Exmark 126-0015

Grommet

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 116-6612-01

Guard-Chain, RH

$70.99

$

Usually ships in 3-6 days

0

11

Exmark 116-6611-01

Guard-Chain, LH

$70.99

$

Usually ships in 3-6 days

0

14

Exmark 3234-40

Screw-HF

$14.99

$

Usually ships in 3-6 days

0

18

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

21

Exmark 126-6752

Screw-Thumb

$7.99

$

Usually ships in 3-6 days

0

22

Exmark 614672

Screw-Shoulder 3/8-16 X 1.295

$3.49

$

In Stock, only 2 left!

0

23

Exmark 1-811010

Plug

$5.99

$

In Stock, only 3 left!

0

24

Exmark 3256-6

Washer

$0.99

$

In Stock, Qty 11

0

32

Exmark 126-7033

Decal-Aerator 30 Logo

$10.99

$

Usually ships in 3-6 days

0

33

Exmark 117-2718

Decal-Arrester, Spark

$7.99

$

Usually ships in 3-6 days

0

34

Exmark 3290-461

Washer-Spring Disc

$5.99

$

In Stock, only 1 left!

0

35

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.99

$

In Stock, Qty 20+

0
