BCZ 400 SW (966785601) - RedMax Brushcutter (2012-08) DRIVE Parts Diagram

Brushcutter

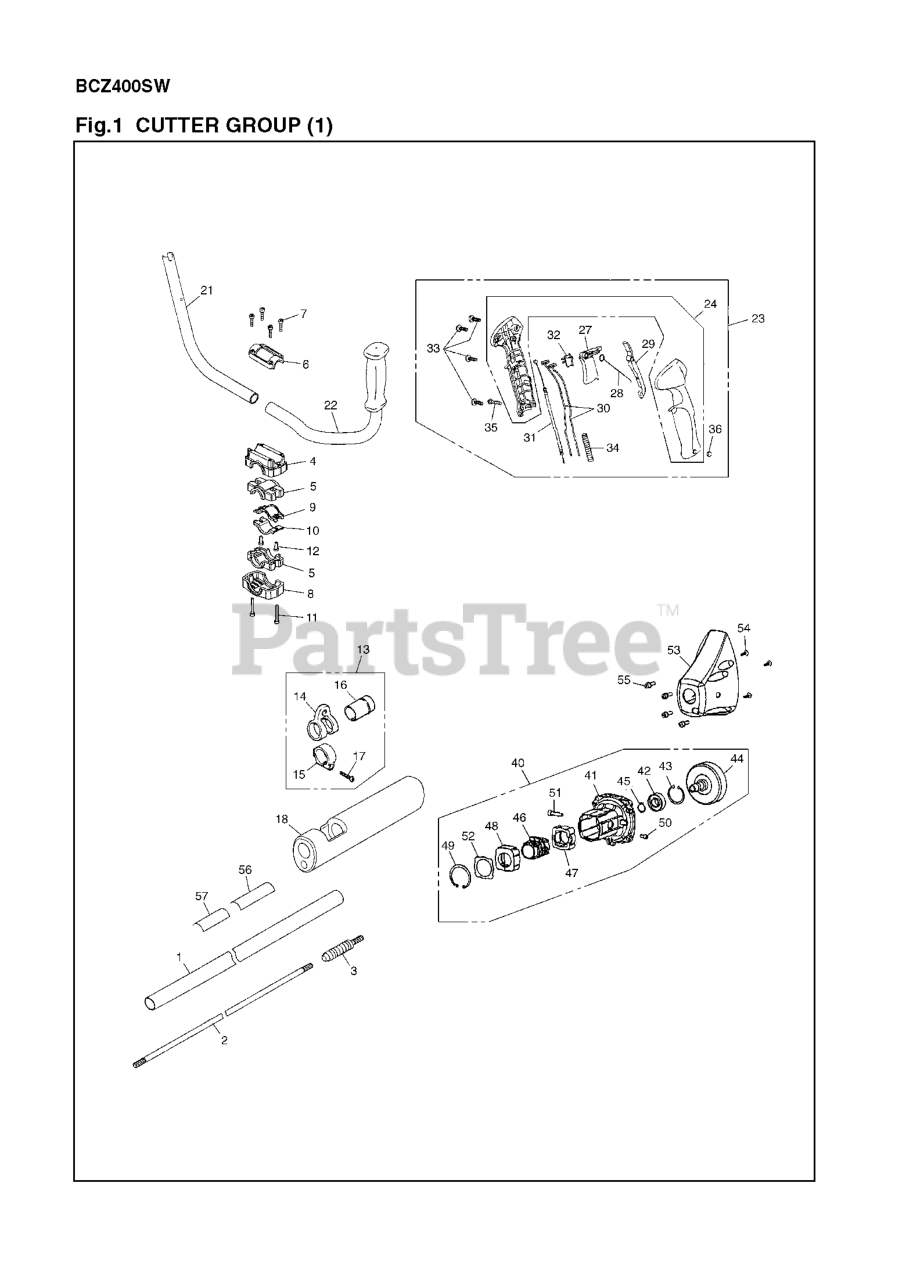

DRIVE Parts Diagram

  • Title

1

RedMax 521655001

PIPE ASSY

$85.99

$

Usually ships in 3-10 days

0

2

RedMax 521655201

SHAFT, SPLINE

$143.99

$

Usually ships in 3-10 days

0

3

RedMax 521655101

JOINT ASSY

$143.99

$

Usually ships in 3-10 days

0

4

RedMax 521654101

BRACKET

$33.99

$

Usually ships in 3-10 days

0

5

RedMax 515360501

ABSORBER

$

$

Not available

6

RedMax 521664601

BRACKET-UP

$9.49

$

Usually ships in 3-10 days

0

7

RedMax 512845701

BOLT TORX

$2.49

$

In Stock, only 2 left!

0

8

RedMax 515360401

CAP-L

$17.99

$

Usually ships in 3-10 days

0

9

RedMax 515360601

CLAMP(A)

$

$

Not available

10

RedMax 515360701

CLAMP(B)

$

$

Not available

11

RedMax 521517101

BOLT TORX M5XL35

$

$

Not available

12

RedMax 521516201

BOLT

$3.99

$

In Stock, only 2 left!

0

13

RedMax 521654201

HANGER ASSY

$17.99

$

Usually ships in 3-10 days

0

14

RedMax 515658801

HANGER

$

$

Not available

15

RedMax 515658901

CLAMP

$

$

Not available

16

RedMax 515659001

SPACER

$

$

Not available

17

RedMax 521861601

BOLT

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 512551401

PROTECTOR

$83.99

$

Usually ships in 3-10 days

0

21

RedMax 577964801

HANDLE, (R)

$47.99

$

Usually ships in 3-10 days

0

22

RedMax 577964501

HANDLE, (L)

$85.99

$

Usually ships in 3-10 days

0

23

RedMax 577964401

GRIP ASSY
(Superseded to 577964403)

$65.99

$

In Stock, only 3 left!

0

24

RedMax 576045301

HANDLE COMPLETE
(Superseded to 576475202)

$34.99

$

Usually ships in 3-10 days

0

27

RedMax 521659201

LEVER

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 521659401

SPRING

$

$

Not available

29

RedMax 521659601

LEVER-S

$8.49

$

Usually ships in 3-10 days

0

30

RedMax 521525901

CORD COMP

$7.99

$

In Stock, only 3 left!

0

31

RedMax 577961801

CABLE ASSY

$14.99

$

Usually ships in 3-10 days

0

32

RedMax 521851601

SWITCH

$14.99

$

In Stock, only 2 left!

0

33

RedMax 521517701

SCREW

$2.49

$

In Stock, Qty 20+

0

34

RedMax 521524601

TUBE

$

$

Not available

35

RedMax 512847401

SCREW

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 970413901

NUT
(Superseded to 521000601)

$3.99

$

In Stock, Qty 14

0

40

RedMax 521654301

HOUSING ASSY

$335.99

$

Usually ships in 3-10 days

0

41

RedMax 521654401

HOUSING

$

$

Not available

42

RedMax 516131701

BEARING 0600406202

$3.99

$

Usually ships in 3-10 days

0

43

RedMax 502849301

SNAP RING

$2.49

$

In Stock, only 2 left!

0

44

RedMax 521659901

DRUM
(Superseded to 591425901)

$41.99

$

In Stock, only 1 left!

0

45

RedMax 516124201

RING, SNAP, M15 x 1.0

$3.49

$

Usually ships in 3-10 days

0

46

RedMax 521654501

CLAMP

$

$

Not available

47

RedMax 521654601

ABSORBER

$8.49

$

Usually ships in 3-10 days

0

48

RedMax 521654701

ABSORBER

$9.49

$

Usually ships in 3-10 days

0

49

RedMax 516126401

RING

$

$

Not available

50

RedMax 504119601

BOLT 08

$3.99

$

In Stock, only 3 left!

0

51

RedMax 521517501

BOLT

$3.49

$

Usually ships in 3-10 days

0

52

RedMax 521654901

SPACER

$

$

Not available

53

RedMax 521654801

COVER

$

$

Not available

54

RedMax 521517901

SCREW

$3.99

$

In Stock, only 1 left!

0

55

RedMax 523019001

BOLT

$2.49

$

Usually ships in 3-10 days

0

56

RedMax 578858201

PLATE,NAME

$

$

Not available

57

RedMax 510962901

LABEL CAUTON FOR BC

$6.99

$

Usually ships in 3-10 days

0
