BR270KC36 - Exmark 36" Power Broom, Kohler CH270 (SN: 313000000 - 313999999) (2013) Broom Head Assembly Parts Diagram

36" Power Broom, Kohler CH270

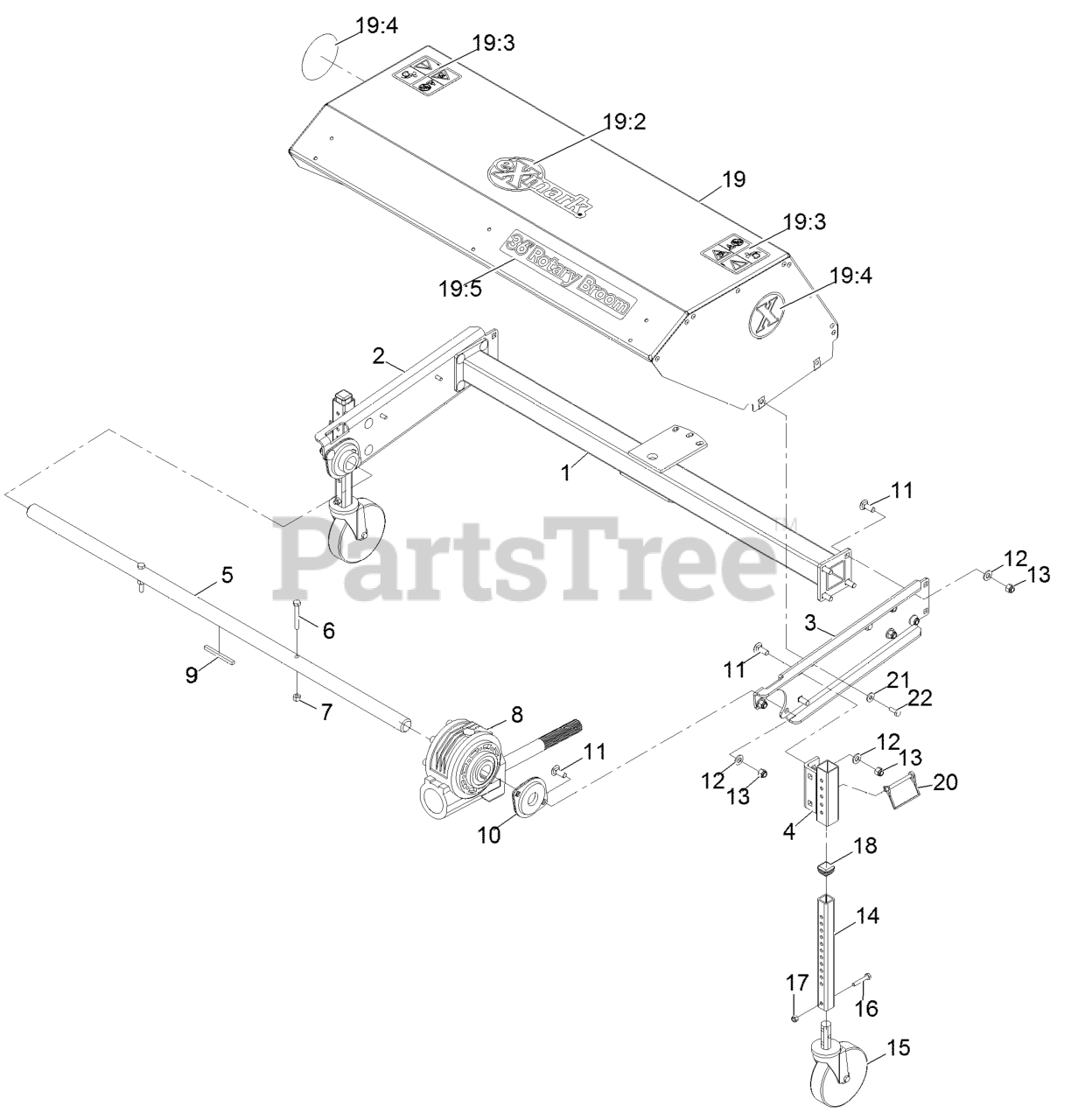

Broom Head Assembly Parts Diagram

  • Title

1

Exmark 116-8544

FRAME

$550.99

$

Usually ships in 3-6 days

0

2

Exmark 116-8546

ARM-RIGHT

$247.99

$

Usually ships in 3-6 days

0

3

Exmark 116-8545

ARM-LEFT

$247.99

$

Usually ships in 3-6 days

0

4

Exmark 116-8543

CASTER-BRACKET

$201.99

$

Usually ships in 3-6 days

0

5

Exmark 116-8114

SHAFT

$417.99

$

Usually ships in 3-6 days

0

6

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

7

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Exmark 116-8115

GEARBOX-WORM

$2296.99

$

Usually ships in 3-6 days

0

9

Exmark 83-2800

KEY-STRAIGHT

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 116-8116

BEARING-FLANGE

$185.99

$

Usually ships in 3-6 days

0

11

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Exmark 116-8223

TUBE-SQUARE, HEIGHT ADJUS

$89.99

$

In Stock, only 2 left!

0

15

Exmark 116-8117

CASTER-WHEEL

$116.99

$

Usually ships in 3-6 days

0

16

Exmark 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

17

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Exmark 103-3202

CAP

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 116-8123

BROOM HOOD ASM

$446.99

$

Usually ships in 3-6 days

0

19:2

Exmark 1-653546

DECAL, EXMARK LOGO

$23.99

$

In Stock, only 3 left!

0

19:3

Exmark 116-8140

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

19:4

Exmark 116-7034

DECAL-EXMARK X-LOGO 3.85

$17.99

$

Usually ships in 3-6 days

0

19:5

Exmark 116-9227

DECAL-36 ROTARY BROOM

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 116-8224

PIN-WIRE, LOCK

$22.99

$

In Stock, Qty 9

0

21

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
