CD48CD - Exmark 48" Navigator Cutting Deck (SN: 000720000 - 000789999) (2008) Gearbox Components for 103-3460 & 103-3387 Parts Diagram

48" Navigator Cutting Deck

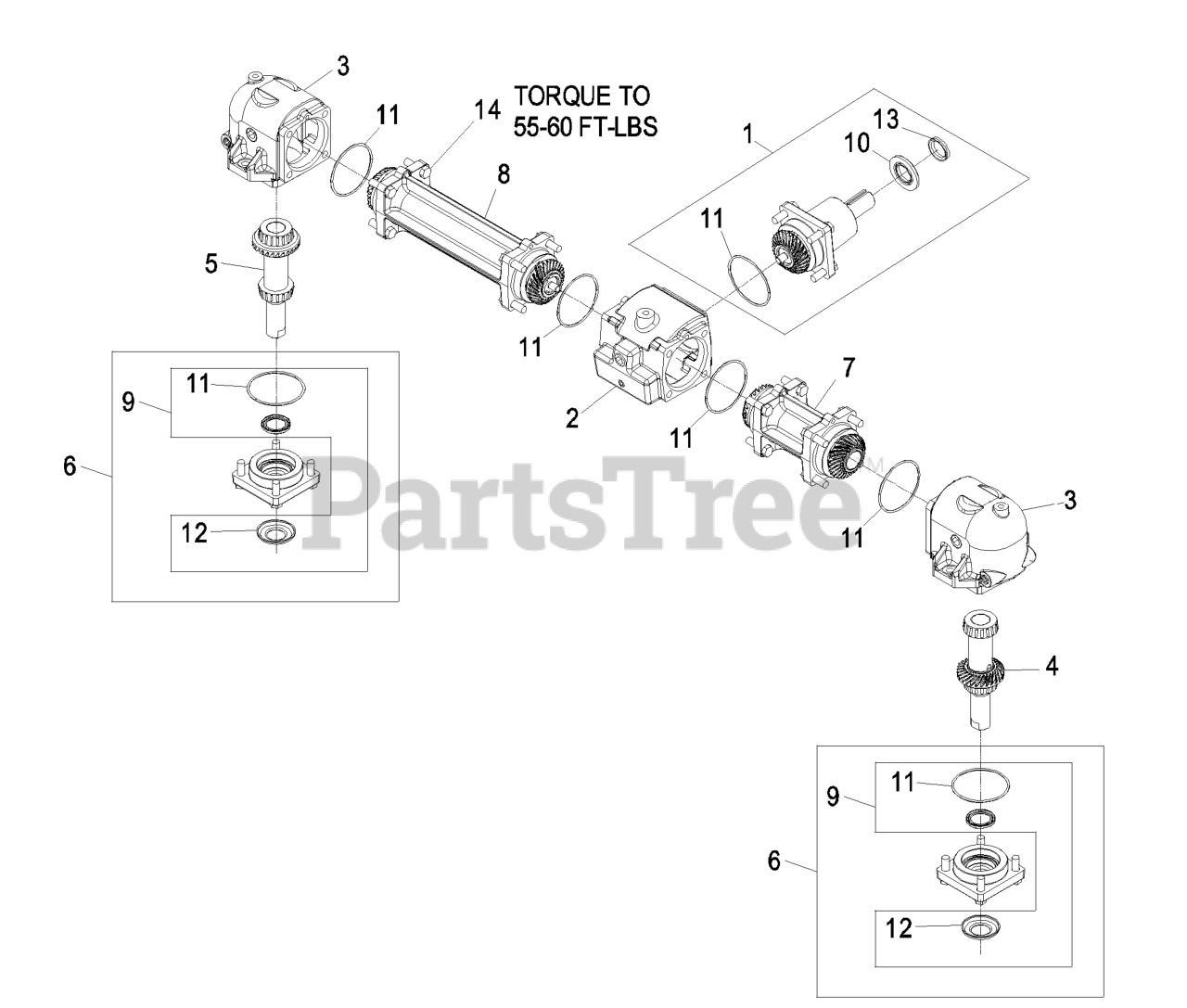

Gearbox Components for 103-3460 & 103-3387 Parts Diagram

  • Title

1

Exmark 109-0188

INPUT PINION ASM

$699.99

$

Usually ships in 3-6 days

0

Exmark 109-0189

PINION-INPUT

$542.99

$

Usually ships in 3-6 days

0

2

Exmark 109-0190

HOUSING-CENTER

Note: Includes o-rings, item #11

$427.99

$

Usually ships in 3-6 days

0

3

Exmark 109-0191

HOUSING-END

Note: Includes o-rings, item #11

$378.99

$

Usually ships in 3-6 days

0

4

Exmark 109-0192

LH OUTPUT SHAFT AND GEAR

Note: (42" LH) Includes (1) output seal assembly, item #9

$568.99

$

Usually ships in 3-6 days

0

Exmark 109-0193

OUTPUT SHAFT AND GEAR-LH

Note: (48" LH) Includes (1) output seal assembly, item #9

$479.99

$

Usually ships in 3-6 days

0

5

Exmark 109-0194

RH OUTPUT SHAFT AND GEAR

Note: (42" RH) Includes (1) output seal assembly, item #9

$576.99

$

Usually ships in 3-6 days

0

Exmark 109-0195

OUTPUT SHAFT AND GEAR-RH

Note: (48" RH) Includes (1) output seal assembly, item #9

$611.99

$

Usually ships in 3-6 days

0

6

Exmark 109-0196

CAP-OUTPUT

Note: Does not include screw, item #14.

$212.99

$

Usually ships in 3-6 days

0

7

Exmark 109-0197

TUBE-CONNECTOR, SHORT

Note: Includes o-rings, item #11 Does not include screw, item #14.

$757.99

$

Usually ships in 3-6 days

0

Exmark 109-0198

TUBE-CONNECTOR, SHORT

Note: Includes o-rings, item #11

$842.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0199

TUBE-CONNECTOR, LONG

Note: Includes o-rings, item #11 Does not include screw, item #14.

$912.99

$

Usually ships in 3-6 days

0

Exmark 109-0200

CONNECTOR-TUBE, LONG

Note: Includes o-rings, item #11

$836.99

$

Usually ships in 3-6 days

0

9

Exmark 109-0201

OUTPUT SEAL KIT

$41.99

$

In Stock, only 1 left!

0

10

Exmark 109-0202

SEAL-INPUT

Note: Apply bead of Mobil HTS grease (P/N 103-5217 1.5 oz packet) between seal, item #10 and v-ring, item #13.

$71.99

$

Usually ships in 3-6 days

0

11

Exmark 109-0203

SEAL-O-RING

$15.99

$

In Stock, Qty 6

0

12

Exmark 109-0204

WASHER-CUPPED

$17.99

$

Usually ships in 3-6 days

0

13

Exmark 109-0205

SEAL-V-RING

Note: Apply bead of Mobil HTS grease (P/N 103-5217 1.5 oz packet) between seal, item #10 and v-ring, item #13.

$18.99

$

In Stock, only 1 left!

0

14

Exmark 93-3987

AU328-620
(Superseded to AU328-620)

$0.99

$

Usually ships in 3-6 days

0
