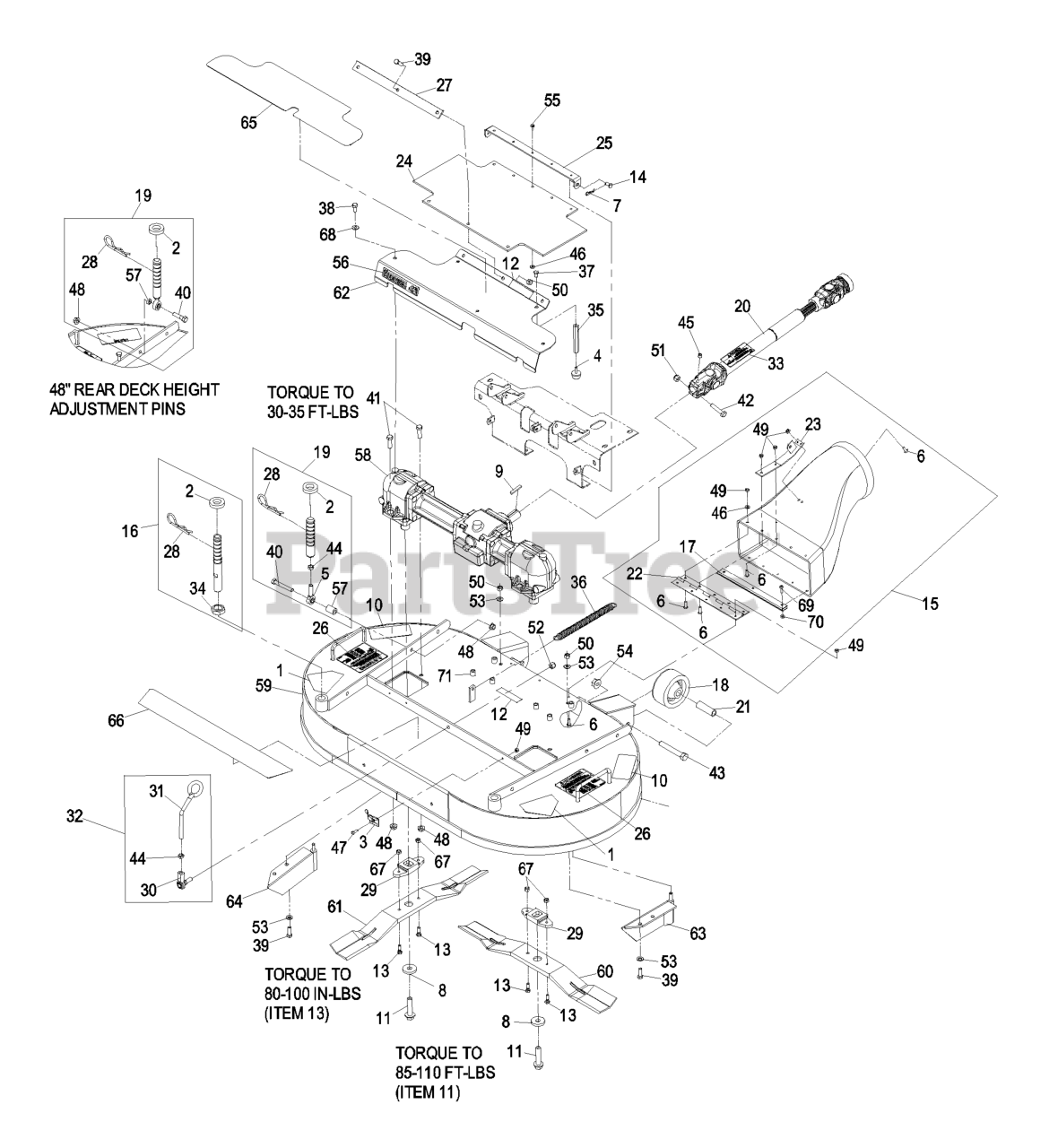

CD48CD - Exmark 48" Navigator Cutting Deck (SN: 000790000 - 000849999) (2009) Deck Group Parts Diagram

48" Navigator Cutting Deck

Deck Group Parts Diagram

  • Title

1

Exmark 1-403005

DECAL-DANGER

$5.99

$

In Stock, Qty 20+

0

2

Exmark 1-413425

SPACER-DECK SUPPORT

$6.99

$

In Stock, Qty 20+

0

3

Exmark 1-513690

CLIP-DECK, HOLD UP ROD

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 109-2365

BUMPER-RUBBER

$5.99

$

In Stock, Qty 20+

0

5

Exmark 1-613204

BALLJOINT

$36.99

$

In Stock, Qty 20+

0

6

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

7

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

8

Exmark 30-8770

WASHER

$12.99

$

In Stock, only 2 left!

0

9

Exmark 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

10

Exmark 68-8340

DECAL-TORQUE

$23.99

$

In Stock, only 2 left!

0

11

Exmark 92-5816

BOLT-BLADE

$8.49

$

In Stock, Qty 20+

0

12

Exmark 98-5954

DECAL-COVER, MISSING

$10.99

$

In Stock, Qty 8

0

13

Exmark 99-0283

BOLT-SHEAR

$8.49

$

In Stock, Qty 20+

0

14

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

15

Exmark 103-9487

DISCHARGE TUBE ASM

$367.99

$

In Stock, only 1 left!

0

16

Exmark 109-0321

FRONT DECK HEIGHT ADJUST

$109.99

$

In Stock, only 1 left!

0

17

Exmark 109-2228-03

GUARD-PLENUM

$30.99

$

Usually ships in 3-6 days

0

18

Exmark 103-3700

ROLLER-DECK

$21.99

$

Usually ships in 3-6 days

0

19

Exmark 109-0322

REAR DECK HEIGHT ADJUST A

Note: (42") Rear deck height adj. assembly includes (1) whizlock nut. Item #48.

$133.99

$

Usually ships in 3-6 days

0

Exmark 109-0323

REAR DECK HEIGHT ADJUST A

Note: (48")

$131.99

$

In Stock, only 1 left!

0

20

Exmark 103-9485

DRIVE SHAFT ASM

$609.99

$

Usually ships in 3-6 days

0

Exmark 103-9327

54-9180
(Superseded to 54-9180)

$71.99

$

In Stock, only 4 left!

0

Exmark 103-9328

YOKE-KEYED

$144.99

$

Usually ships in 3-6 days

0

Exmark 103-9329

YOKE-QUICK DISCONNECT

$306.99

$

In Stock, only 1 left!

0

21

Exmark 103-4230

SPACER-ROLLER

$13.99

$

Usually ships in 3-6 days

0

22

Exmark 103-4974

HINGE-PIANO
(Superseded to 139-4460)

$43.99

$

Usually ships in 3-6 days

0

23

Exmark 103-5868-01

MOUNT-SPRING

$45.99

$

Usually ships in 3-6 days

0

24

Exmark 103-5979

GUARD-PTO

$92.99

$

Usually ships in 3-6 days

0

25

Exmark 103-6183-03

BRACKET-GUARD, PTO

$42.99

$

Usually ships in 3-6 days

0

26

Exmark 103-6230

116-8934
(Superseded to 116-8934)

$7.99

$

In Stock, only 2 left!

0

27

Exmark 103-6290-03

STRAP-DRIVE, LINE COVER

$43.99

$

Usually ships in 3-6 days

0

28

Exmark 103-7353

PIN-CUT HEIGHT

$12.99

$

In Stock, Qty 10

0

29

Exmark 103-7705

DRIVER-BLADE

$49.99

$

In Stock, Qty 10

0

30

Exmark 103-7994

BALLJOINT-RH

$47.99

$

Usually ships in 3-6 days

0

31

Exmark 103-8307

LATCH-DECK

$46.99

$

In Stock, only 1 left!

0

32

Exmark 103-8363

DECK LATCH ASM

Note: Deck latch assembly includes nyloc nut, item #52.

$143.99

$

Usually ships in 3-6 days

0

33

Exmark 103-8425

DECAL-DRIVELINE

$

$

Not available

34

Exmark 103-8496

NUT-JAM

$5.99

$

Usually ships in 3-6 days

0

35

Exmark 103-8610

STAND-OFF

$25.99

$

Usually ships in 3-6 days

0

36

Exmark 103-8841

SPRING-EXTENSION

$15.99

$

Usually ships in 3-6 days

0

37

Exmark 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

38

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Exmark 323-11

SCREW-HH

Note: (42")

$2.49

$

In Stock, Qty 20+

0

Exmark 323-8

SCREW-HH

Note: (48")

$1.49

$

In Stock, Qty 20+

0

41

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

42

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Exmark 325-14

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

44

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

45

Exmark 3247-2

SCREW-SET, HSH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrew, item #45.

$4.49

$

Usually ships in 3-6 days

0

46

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

47

Exmark 3290-134

SCREW

$0.99

$

In Stock, Qty 16

0

48

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

49

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

50

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

51

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

52

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

53

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

54

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

55

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

56

Exmark 103-9024

DECAL,COMMERCIAL 42

Note: (42")

$

$

Not available

Exmark 1-403131

DECAL,COMMERCIAL 48

Note: (48")

$6.99

$

In Stock, Qty 10

0

57

Exmark 106-5620

TUBE-INTERLOCK

Note: (42")

$18.99

$

Usually ships in 3-6 days

0

Exmark 106-5597

SPACER-IDLER

Note: (48")

$37.99

$

Usually ships in 3-6 days

0

58

Exmark 103-3460

GEARBOX ASM

Note: (42") Fill gearbox sections to drain/fill plug with Mobil SHC (synthetic) 75w-90 gear lube oil.

$4081.99

$

Usually ships in 3-6 days

0

Exmark 103-3387

GEAR BOX ASM

Note: Fill gearbox sections to drain/fill plug with Mobil SHC (synthetic) 75w-90 gear lube oil.

$4051.99

$

Usually ships in 3-6 days

0

59

Exmark 109-4373

DECK ASM
(Superseded to 142-2918)

Note: (42") Deck assembly includes anti skid pad, item #66.

$2017.99

$

Usually ships in 3-6 days

0

Exmark 109-4372

DECK DECAL AND BAFFLE ASM
(Superseded to 142-2922)

Note: (48") Deck assembly includes anti skid pad, item #66.

$1947.99

$

Usually ships in 3-6 days

0

60

Exmark 103-4209

BLADE,22 INCH LH

Note: (42")

$41.99

$

In Stock, Qty 8

0

Exmark 103-4207

BLADE,25 INCH LH

Note: (48")

$41.99

$

In Stock, Qty 20+

0

61

Exmark 103-4210

BLADE,22 INCH RH

Note: (42")

$41.99

$

In Stock, Qty 8

0

Exmark 103-4208

BLADE,25 INCH RH

Note: (48")

$41.99

$

In Stock, Qty 18

0

62

Exmark 103-9497

ASM,GEARBOX COVER 42 W/DE

Note: (42") Gearbox cover assembly includes anti skid pad, item #62.

$283.99

$

Usually ships in 3-6 days

0

Exmark 103-9496

ASM,GEARBOX COVER 48 W/DE

Note: (48") Gearbox cover assembly includes anti skid pad, item #62.

$283.99

$

Usually ships in 3-6 days

0

63

Exmark 109-4053-01

BAFFLE-LH

$111.99

$

Usually ships in 3-6 days

0

64

Exmark 109-4054-01

BAFFLE-RH

$111.99

$

Usually ships in 3-6 days

0

65

Exmark 103-8626

PAD-ANTI SKID

Note: (42")

$19.99

$

Usually ships in 3-6 days

0

Exmark 103-8629

PAD-ANTI SKID

Note: (48")

$30.99

$

Usually ships in 3-6 days

0

66

Exmark 103-8667

PAD-SKID, ANTI

Note: (42")

$19.99

$

Usually ships in 3-6 days

0

Exmark 103-8630

PAD-ANTI SKID

Note: (48")

$22.99

$

Usually ships in 3-6 days

0

67

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

68

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

69

Exmark 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

70

Exmark 3296-12

NUT-LOCK, NI
(Superseded to 3296-12)

$1.49

$

In Stock, Qty 5

0

71

Exmark 32148-7

NUT-CLINCH

$4.49

$

Usually ships in 3-6 days

0
