CD48CD - Exmark 48" Navigator Cutting Deck (SN: 312000000 - 312999999) (2012) Gearbox Assembly - 116-3387 Parts Diagram

48" Navigator Cutting Deck

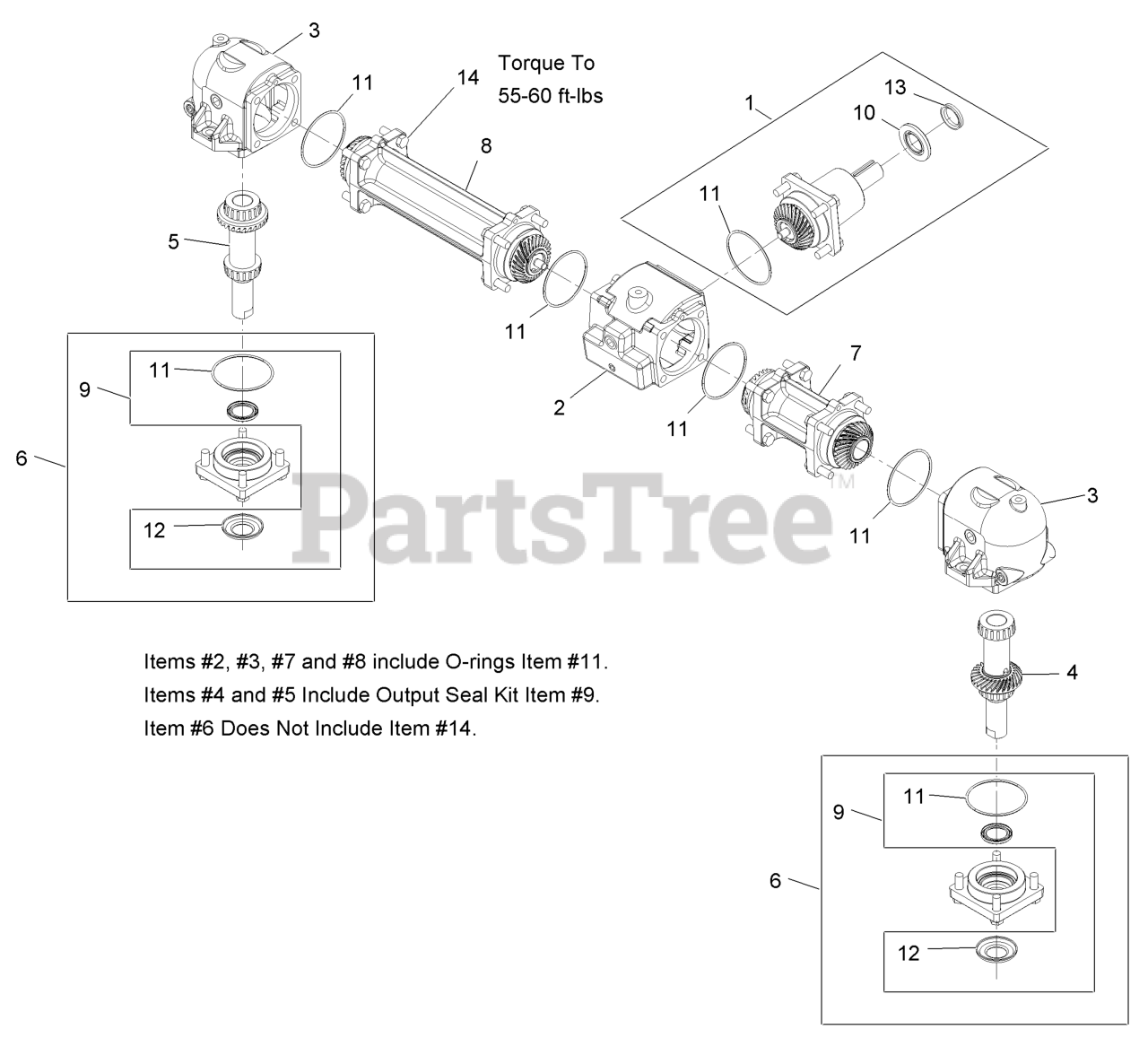

Gearbox Assembly - 116-3387 Parts Diagram

  • Title

1

Exmark 109-0188

INPUT PINION ASM

$699.99

$

Usually ships in 3-6 days

0

1

Exmark 109-0189

PINION-INPUT

$542.99

$

Usually ships in 3-6 days

0

2

Exmark 109-0190

HOUSING-CENTER

$427.99

$

Usually ships in 3-6 days

0

3

Exmark 109-0191

HOUSING-END

$378.99

$

Usually ships in 3-6 days

0

4

Exmark 109-0193

OUTPUT SHAFT AND GEAR-LH

$479.99

$

Usually ships in 3-6 days

0

5

Exmark 109-0195

OUTPUT SHAFT AND GEAR-RH

$611.99

$

Usually ships in 3-6 days

0

6

Exmark 109-0196

CAP-OUTPUT

$212.99

$

Usually ships in 3-6 days

0

7

Exmark 109-0198

TUBE-CONNECTOR, SHORT

$842.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0200

CONNECTOR-TUBE, LONG

$836.99

$

Usually ships in 3-6 days

0

9

Exmark 109-0201

OUTPUT SEAL KIT

$41.99

$

In Stock, only 1 left!

0

10

Exmark 109-0202

SEAL-INPUT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$71.99

$

Usually ships in 3-6 days

0

11

Exmark 109-0203

SEAL-O-RING

$15.99

$

In Stock, Qty 6

0

12

Exmark 109-0204

WASHER-CUPPED

$17.99

$

Usually ships in 3-6 days

0

13

Exmark 109-0205

SEAL-V-RING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$18.99

$

In Stock, only 1 left!

0

14

Exmark 93-3987

AU328-620
(Superseded to AU328-620)

$0.99

$

Usually ships in 3-6 days

0
